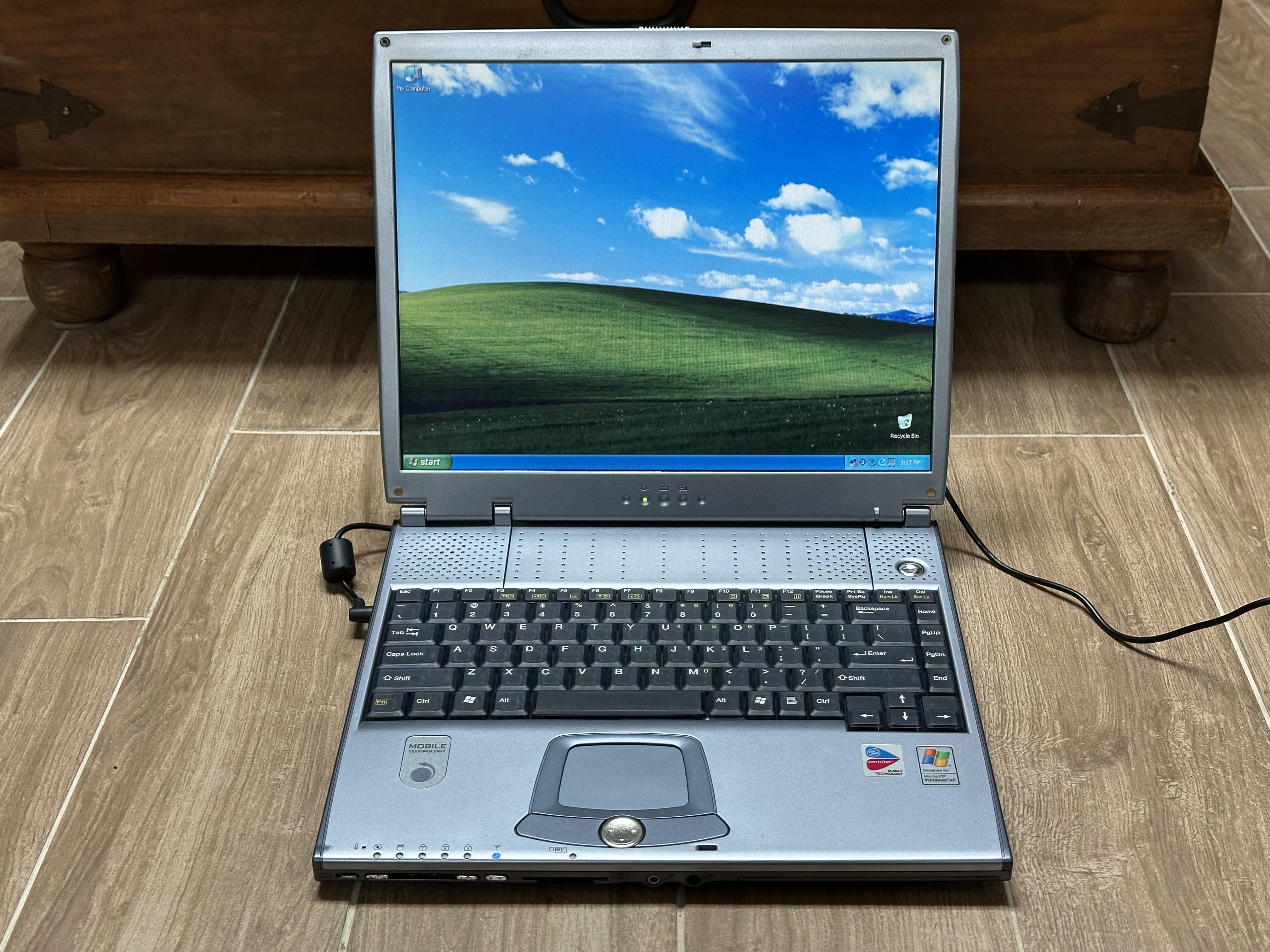

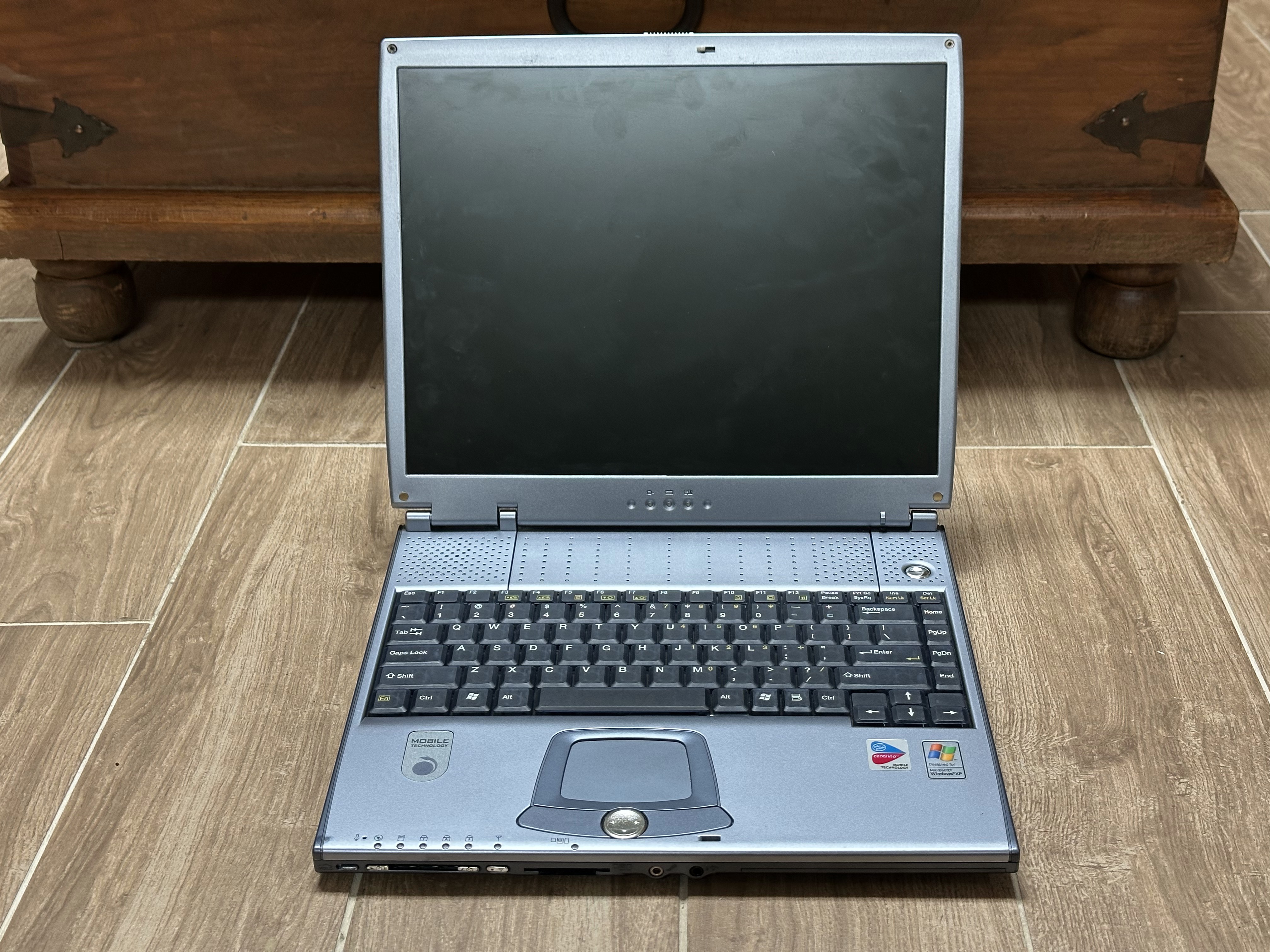

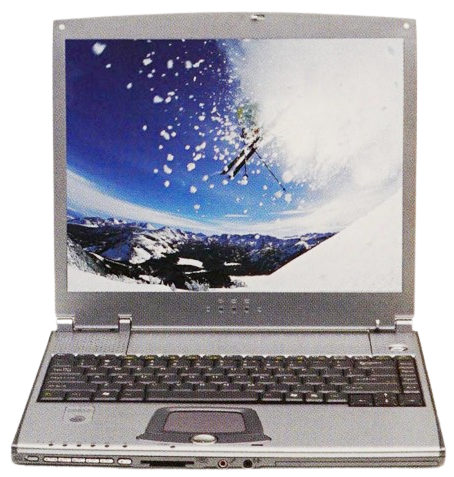

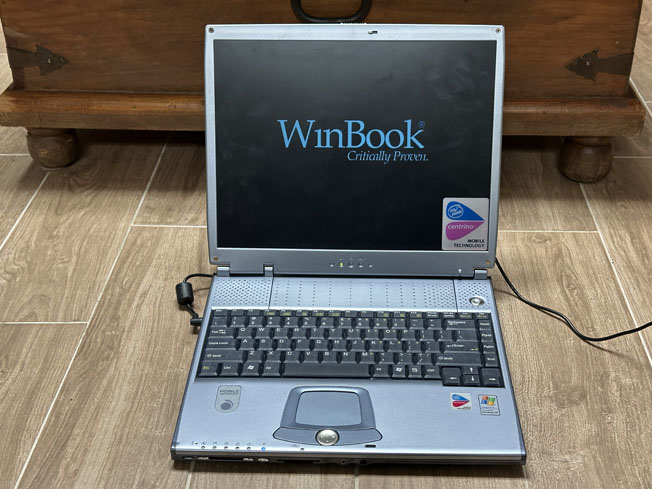

WinBook C100 Series

Also Known As: WinBook 8080

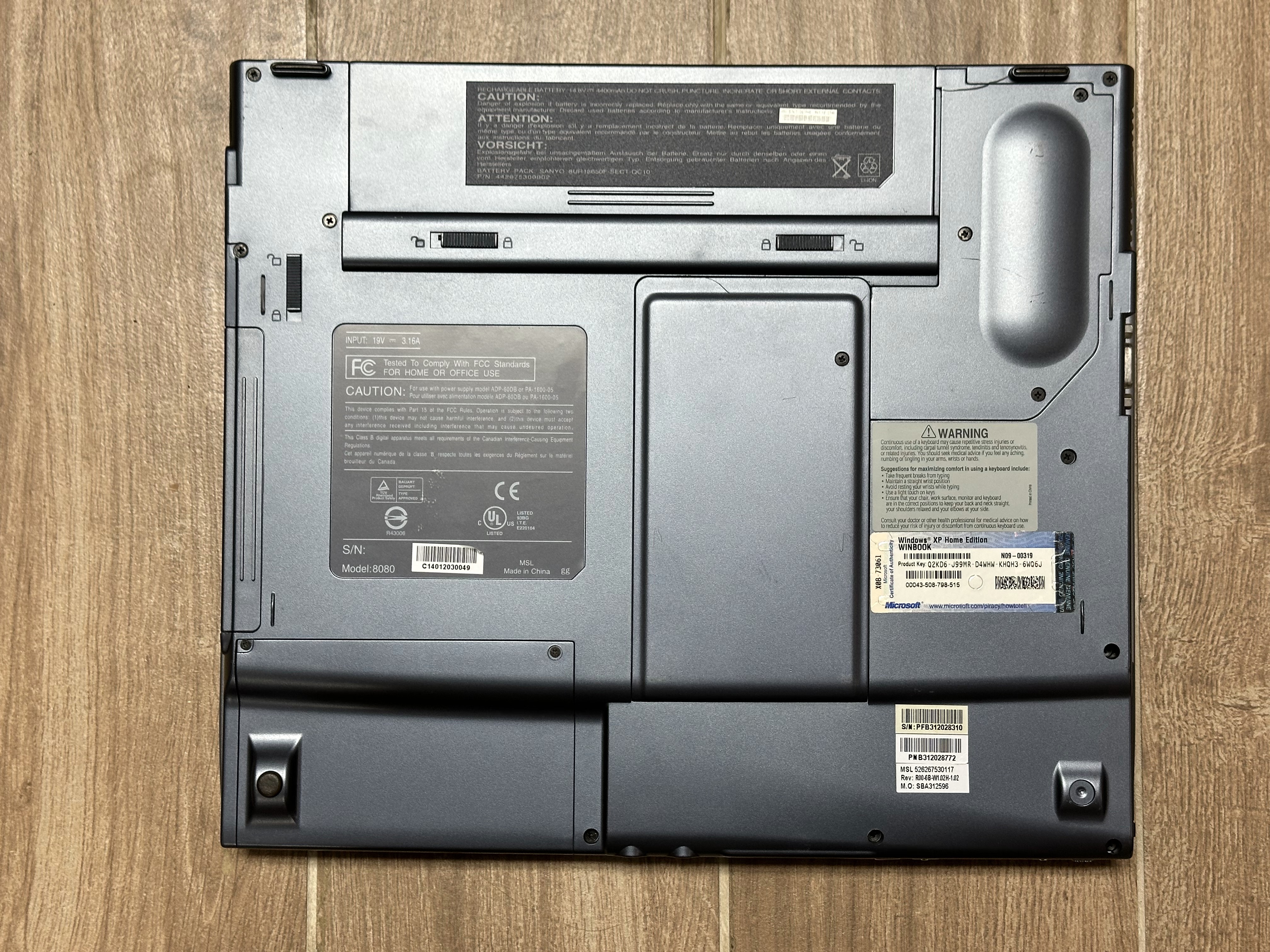

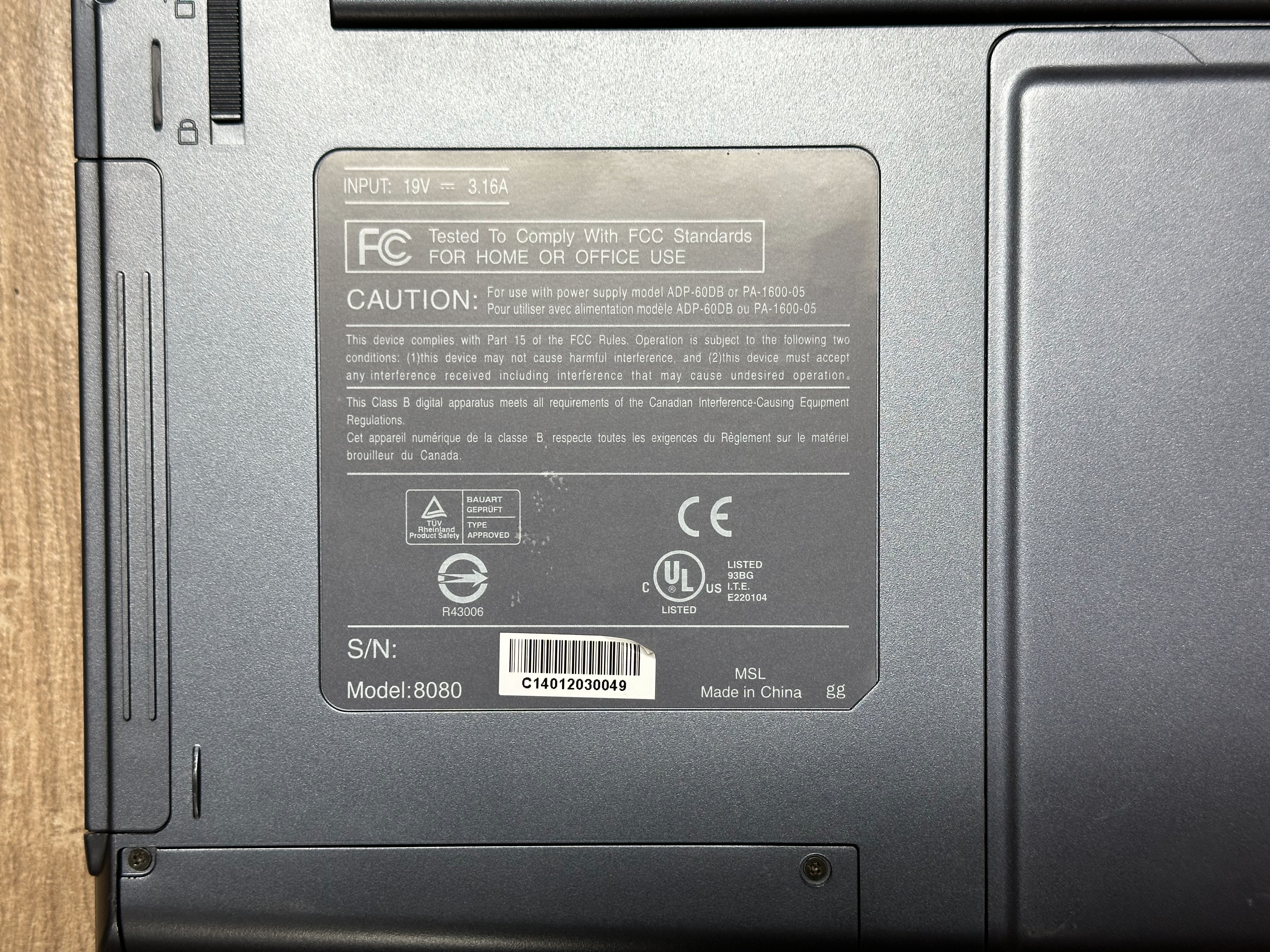

The WinBook C100 is a Pentium M-based laptop that was released in 2003. It is a rebadged MiTAC MiNote 8080, and it still has the 8080 model number on the bottom label. These don't have any C100 branding. The only reference to their series is the first few digits of the serial number sticker.

Specifications

Spec	Details
CPU	CPU Type: Socket 479 (Banias/Dothan) Intel Pentium M @1.4GHz or higher
Chipset	Unknown
RAM	Type: DDR, 2 slots Standard: Unknown Maximum: 1GB

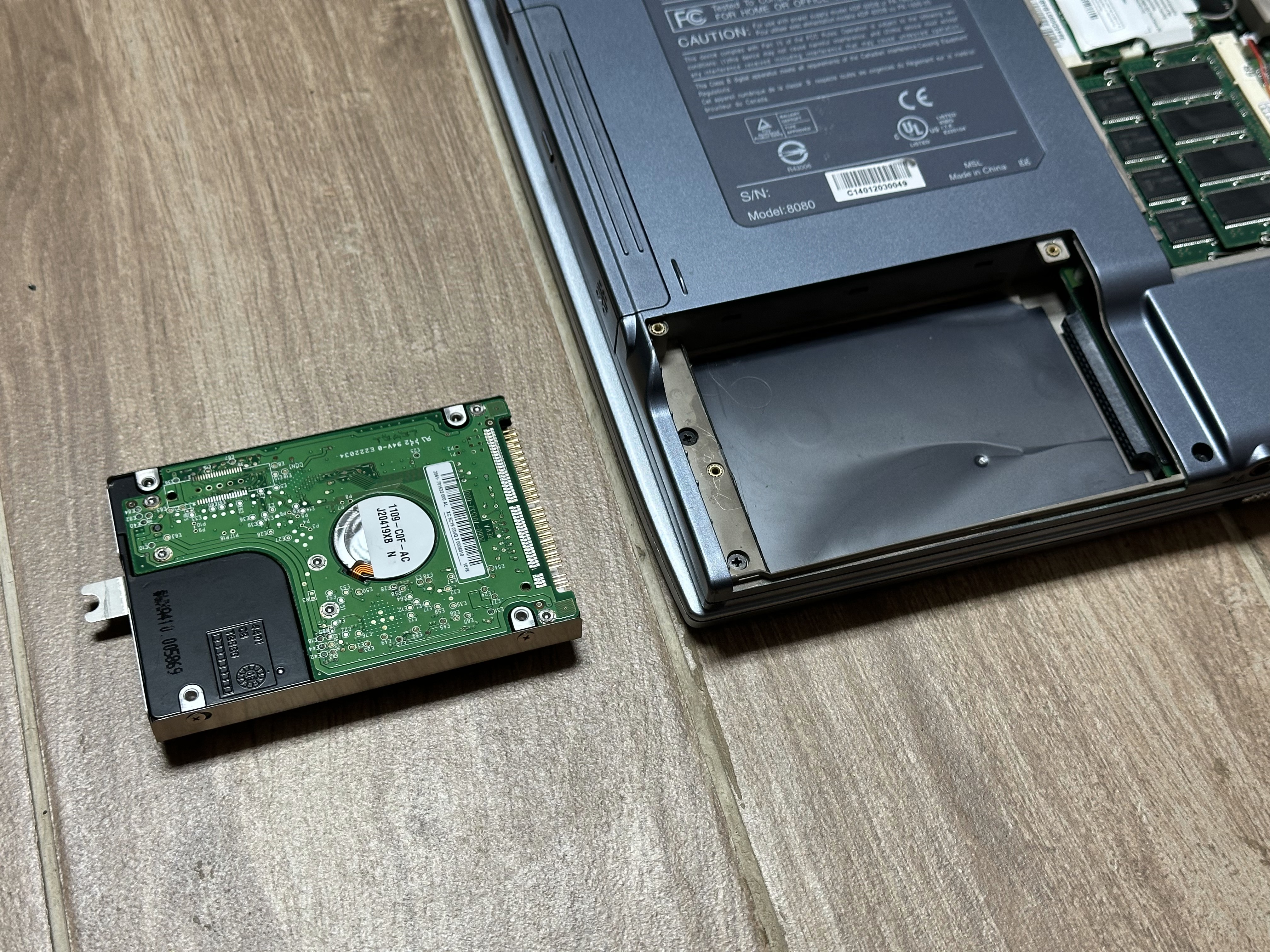

Storage	2.5" IDE Requires Adapter: No Standard: Unknown

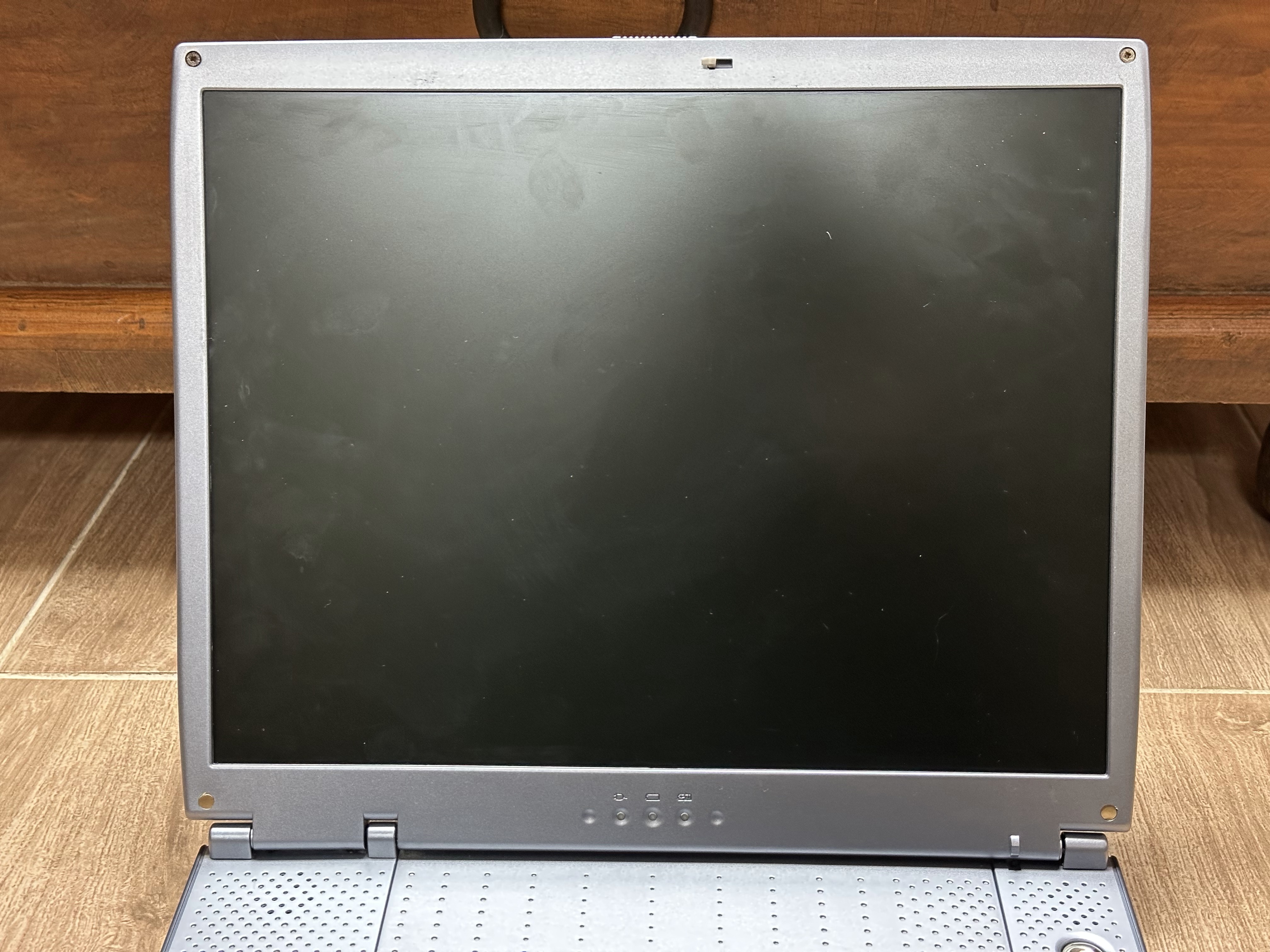

Display Options	14.1" TFT LCD @1024x768
Graphics Chipset	Intel Extreme Graphics 2 VRAM: Up to 64MB shared/SMA
Audio	Unknown
Main Battery	Lithium Ion (8 cell)
CMOS Battery	Proprietary Lithium

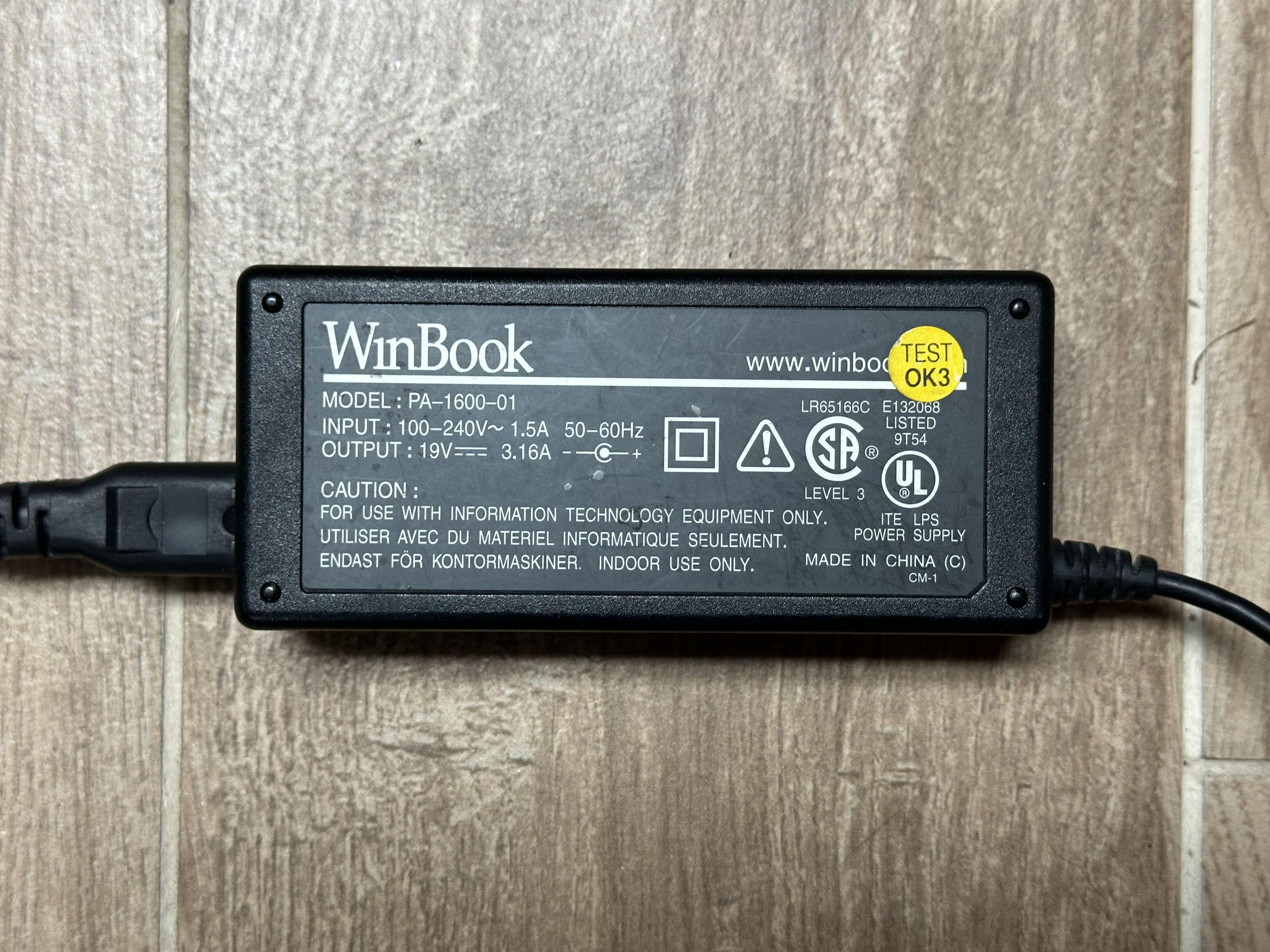

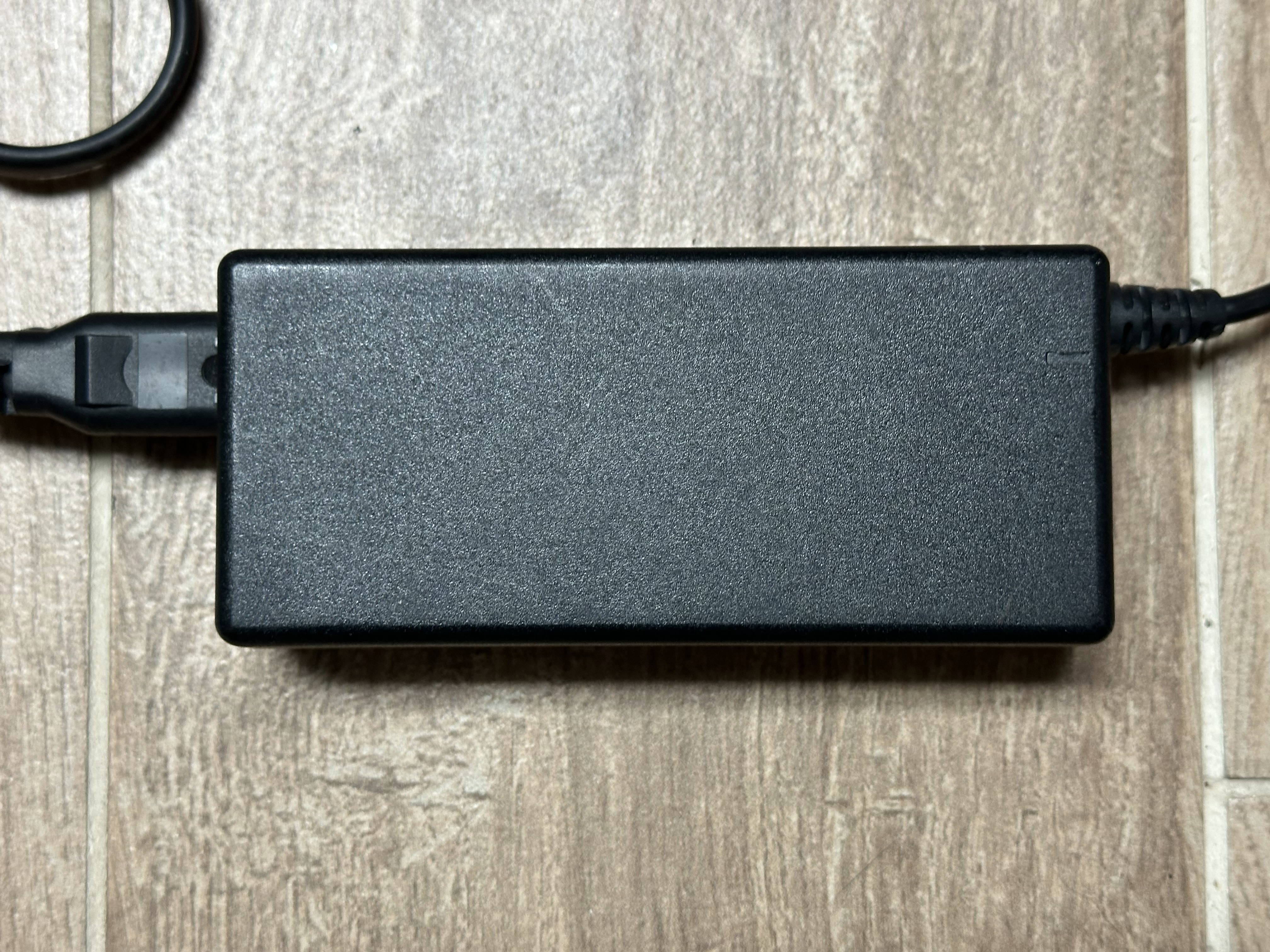

Power Supply	Barrel Jack (19V, 3.16A) - PA-1600-01 AC Adapter

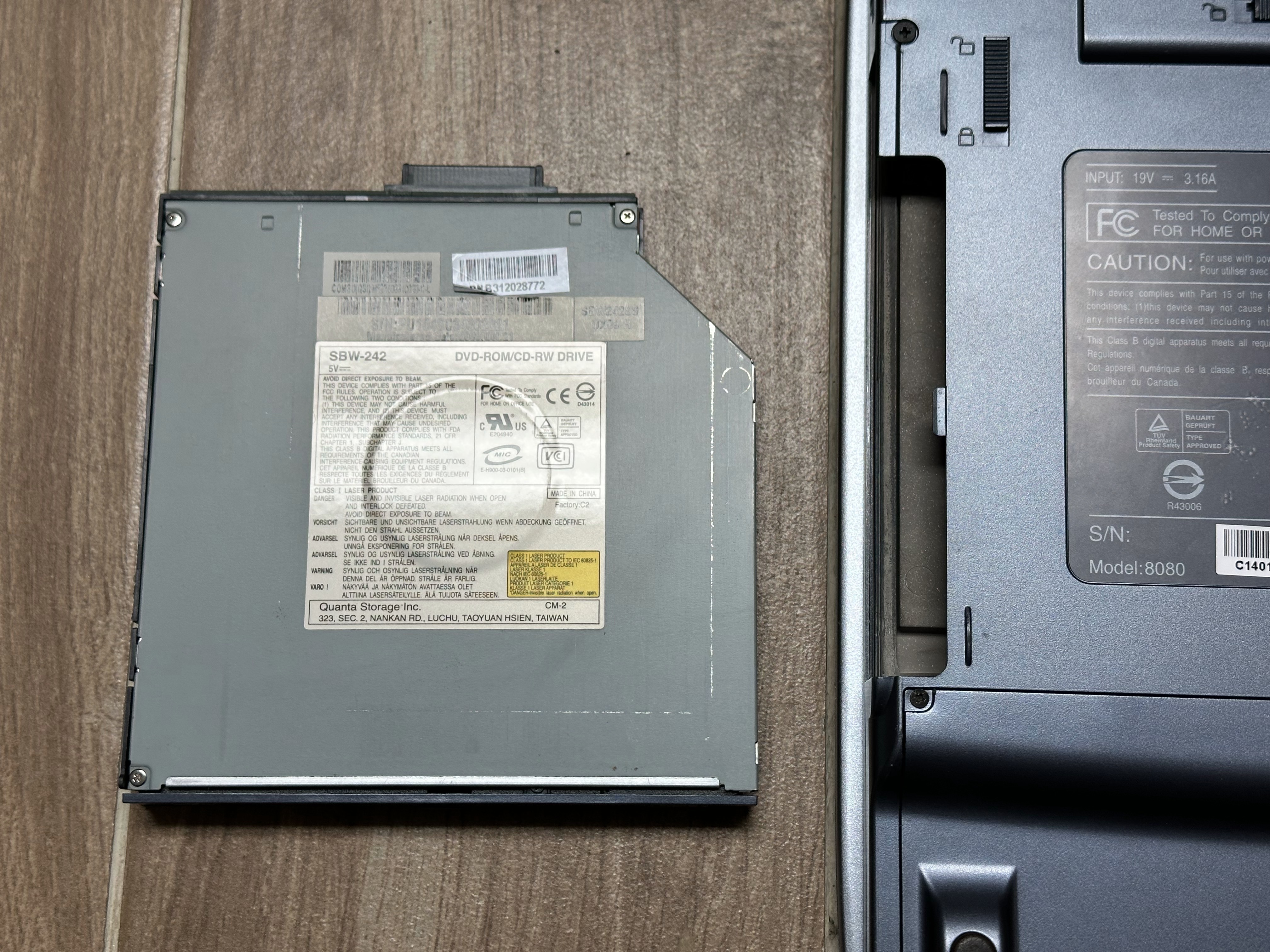

Media Drives	DVD/CD-RW or DVD-RW Drive
PC Cards	1x PCMCIA/CardBus Slot
Networking	- Modem - Ethernet

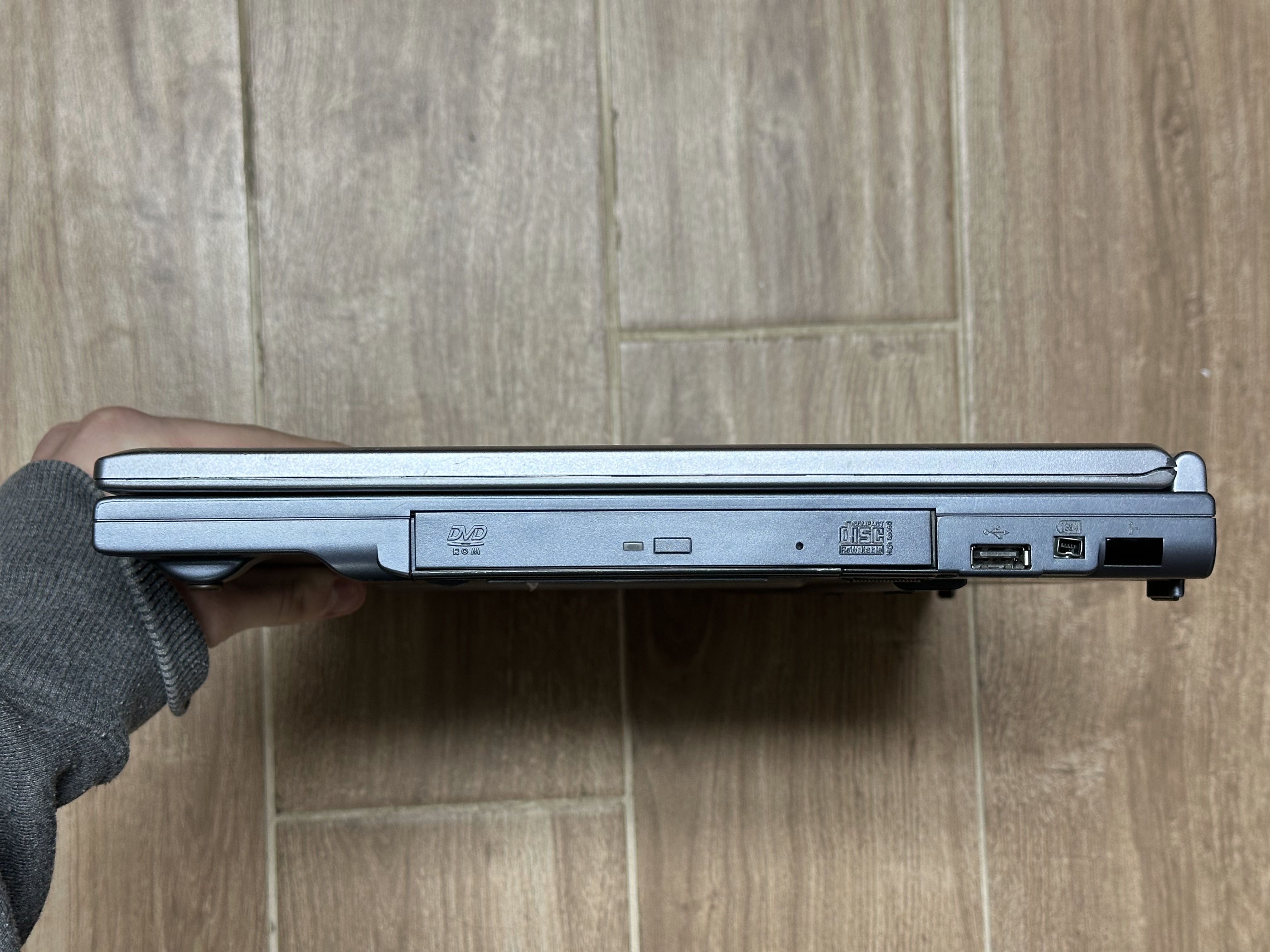

Other I/O	- 3x USB 2.0 - 1x VGA Out - 1x IEEE1394/FireWire - 1x S-Video Out - 1x Smart Card Reader - 1x Mic In - 1x Line Out

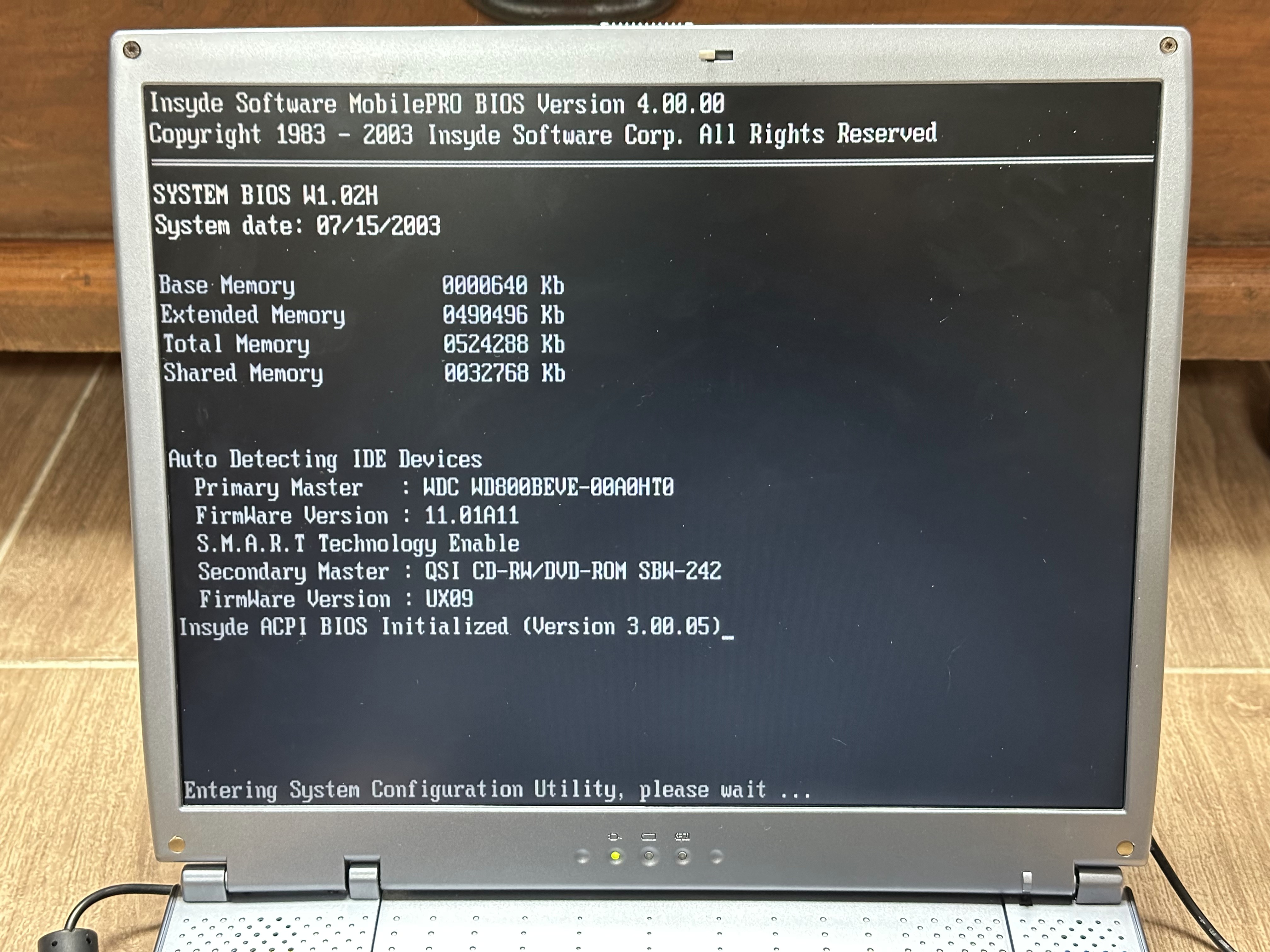

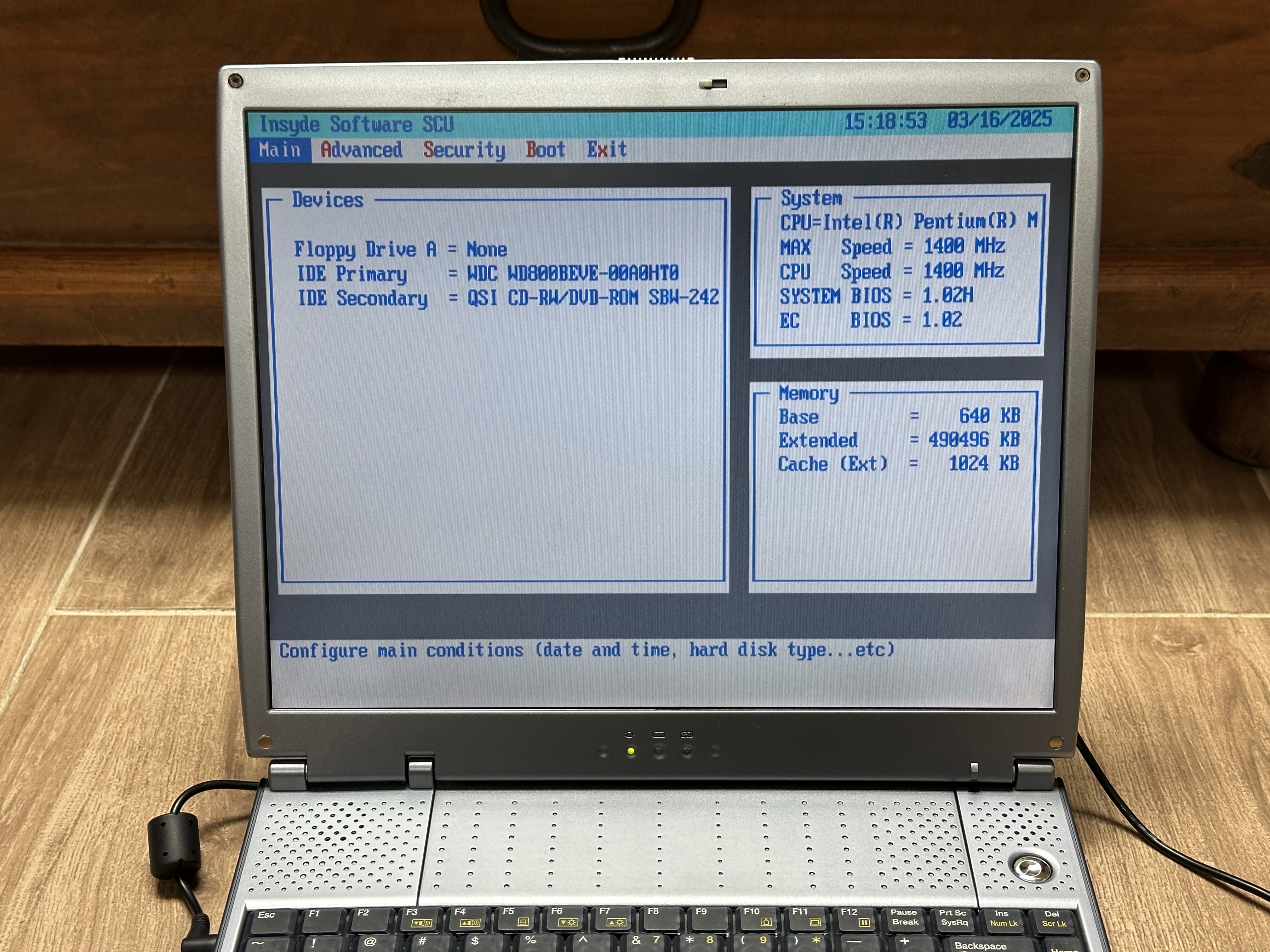

BIOS	Insyde

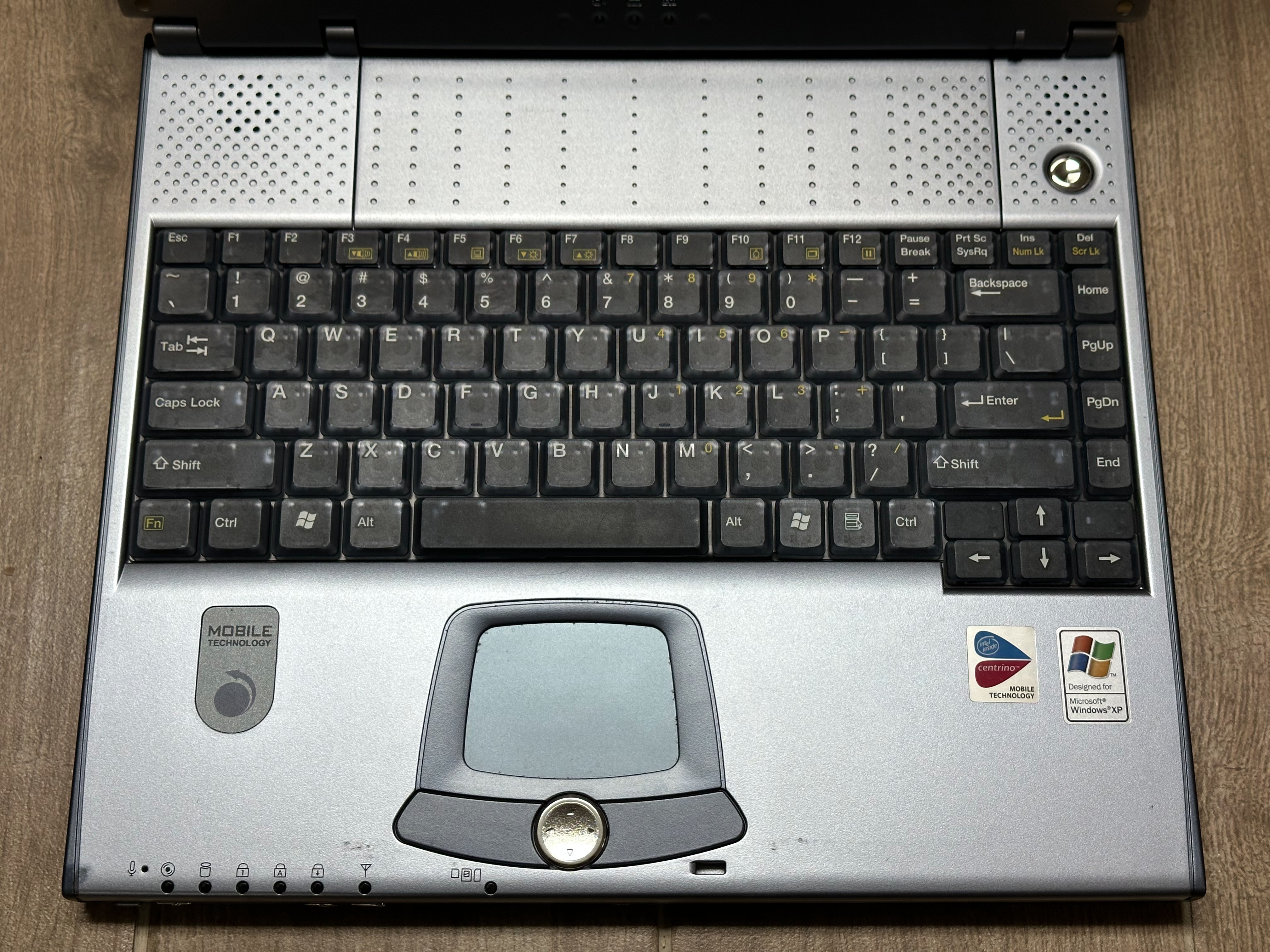

Pointing Device	Trackpad
