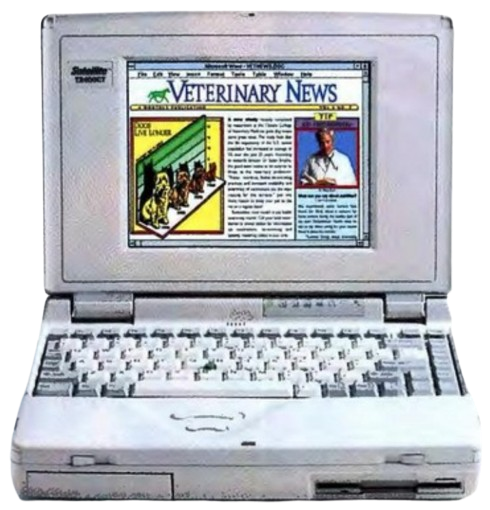

Toshiba Satellite T2400CS & T2400CT
The Toshiba Satellite T2400CS/CT were 486-based laptops that were released in 1994.
Specifications
| Spec | T2400CS | T2400CT |
|---|---|---|
| CPU | CPU Type: Unknown Intel 486DX2 @50MHz |
|
| Chipset | Toshiba SYSCNT-GA | |
| RAM | Type: Proprietary Standard: 4MB Maximum: 20MB |
Type: Proprietary Standard: 8MB Maximum: 24MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: 250MB |
2.5" IDE Uses proprietary adapter?: Unknown Standard: 320MB |
| Display Options | 9.5" Passive Matrix Color LCD @640x480 | 8.4" Active Matrix Color LCD @640x480 |
| Graphics Chipset | Western Digital WD90C24A2 VRAM: 1MB |
|
| Audio | ESS AudioDrive 688 (Optional) | |
| Main Battery | NiMH (12V, 2600mAH) | |
| CMOS Battery | - Lithium CMOS Battery - NiMH Backup/Reserve Battery |
|
| Power Supply | Barrel Jack | |
| Disk Drives | 1.44MB 3.5" Floppy Drive | |
| PC Cards | 2x PCMCIA Slots | |
| Networking | None | |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 2x PS/2 - 1x Dock Connector - 1x SCSI-2 |
|
| BIOS | Toshiba BIOS | |
| Pointing Device | TrackPoint | |
Resources
 Service Manual |
 Brochure |
|---|
Common Faults & Maintenance
Hibernation Battery Leaks
The T2400s have a cylindrical NiMH reserve/backup battery inside of them, and this type of battery very often leaks. Remove it ASAP.
Capacitor Failure
This isn't 100% certain, but the T2400s may need recapping to work reliably. Capacitor failure plagued Toshibas from this time, so it's likely to be affected to some extent.
Page last updated (MM/DD/YYYY): 11/12/2024
Update Reason: page created
