NEC Versa 2000 Series

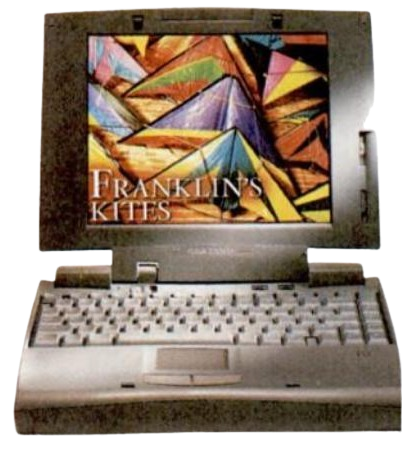

The NEC Versa 2000C and 2000D are a pair of 486-based laptops that were released in September 1995.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 486DX4 @75MHz |
| Chipset | Unknown |
| RAM | Type: Proprietary Standard: 4 or 8MB Maximum: 40MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: 350 or 540MB |
| Display Options | - 10.4" Passive Matrix Color @640x480 (2000D) - 9.5" Active Matrix Color @640x480 (2000C) |
| Graphics Chipset | Chips & Technologies 65545 VRAM: 1MB |
| Audio | PC Speaker |
| Main Battery | Lithium Ion (14.4V, 2700mAH) |
| CMOS Battery | - Lithium 3.6V CMOS Battery - Rechargeable Bridge Battery |
| Power Supply | Hirose RP-34 3-pin |
| Disk Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) - Cirrus Logic PD6720 Controller |
| Networking | Modem (Optional) |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector |
| BIOS | Phoenix |
| Pointing Device | Trackpad |
Resources
 User Manual |
 Service Manual |
|---|
Page last updated (MM/DD/YYYY): 12/13/2024
Update Reason: page created
