Dual MRA-2000

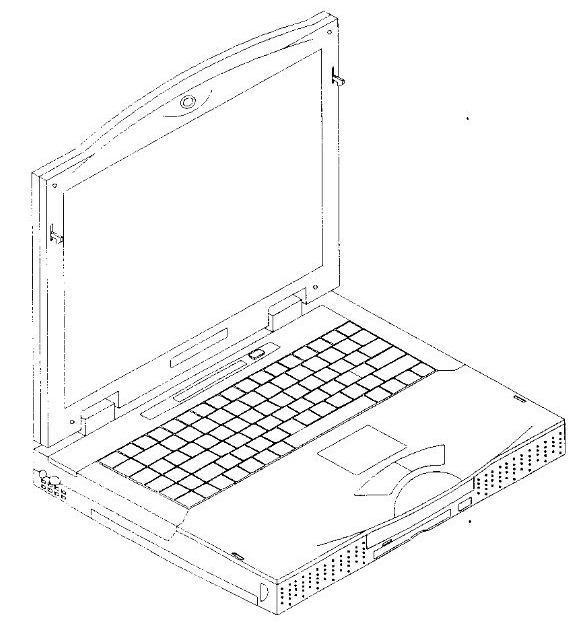

The Dual MRA-2000 (aka Mirage 2000) is a Pentium II-based desktop replacement laptop that was released in October 1998. This was Dual's absolute top-of-the-line machine, with a 15.0" display, support for built-in ethernet, and even an internal CCD camera, making this one of the very first laptops with a webcam.
What's a real shame is that this laptop was not seemingly a success for Dual. They're not common today.
I do have the user manual, schematics, and block diagram for this laptop as they were all published in the MRA-2000's FCC application.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: MMC1 Intel Mobile Pentium II @233, 266, or 300MHz (or higher) |
| Chipset | Intel 440BX |
| RAM | Type: EDO or SDRAM, 2 slots Standard: N/A Maximum: 256MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: N/A |
| Display Options | 15.0" TFT LCD @1024x768 (Samsung) |
| Graphics Chipset | NeoMagic MagicMedia 256AV (NM2200) VRAM: 2.5 or 4.5MB |
| Audio | ESS Maestro-2 - Stereo Speakers - Subwoofer (Optional) - Microphone |
| Main Battery | Lithium Ion |
| CMOS Battery | Unknown |
| Power Supply | Unknown |
| Media Drives | 3 Spindle - 3.5" 1.44MB Floppy Drive or LS-120 Drive - CD-ROM or DVD-ROM Drive |
| PC Cards | 2x PCMCIA/CardBus Slots (2x Type II/1x Type III) - ZoomVideo Support - O2Micro 6833 Controller |
| Networking | - 56k Modem (Optional) - 10/100 Ethernet (Optional) |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 2x USB 1.x - 1x S-Video Out - 1x Composite Out - 1x Mic In - 1x Line In - 1x Line Out - 1x Headphone Out - 2x Infrared |
| BIOS | Phoenix |
| Pointing Device | Trackpad |
| Other Features | Built-in CCD Camera (704x480) |
Resources
 User Manual |
 Schematic |
Block Diagram |
Photos (poor quality) |
|---|
Page last updated (MM/DD/YYYY): 02/26/2025
Update Reason: page created
