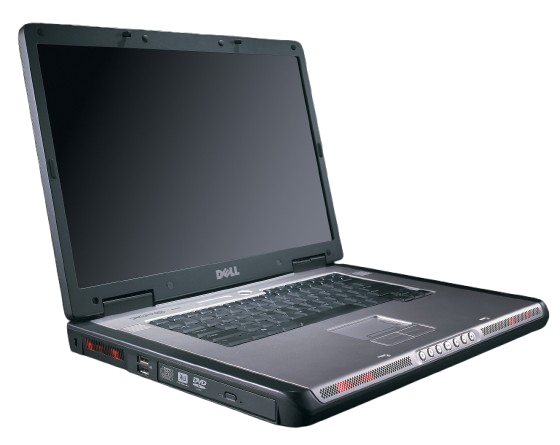

Dell XPS M170
Case Model: PP14L
The XPS M170 is a 17.0" Pentium M-based laptop that was released in October 2005.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 479 (Banias/Dothan) Intel Pentium M |
| Chipset | Intel 915PM |
| RAM | Type: DDR2, 2 slots Standard: Unknown Maximum: 2GB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: Unknown |
| Display Options | 17.0" TFT LCD @1920x1200 |
| Graphics Chipset | NVIDIA GeForce Go 6800 Ultra VRAM: 256MB |
| Audio | AC97 - Stereo Speakers - Subwoofer - Microphone |
| Main Battery | Lithium Ion (9 cell) |
| CMOS Battery | Unknown |
| Power Supply | Dell Large Barrel Jack - Dell PA-13 |
| Media Drives | Optical Drive |
| PC Cards | 1x PCMCIA/CardBus Slot (Type I/II) - Ricoh R5C841 Controller |
| Networking | - 56k Modem - Gigabit Ethernet - WiFi (Optional) - Bluetooth (Optional) |
| Other I/O | - 6x USB 2.0 - 1x IEEE1394/FireWire - 1x VGA Out - 1x DVI-D Out - 1x S-Video Out - 1x SD Card Reader - 1x Mic In - 1x Line Out |
| BIOS | Dell |
| Pointing Device | Trackpad |
Resources
 Drivers |
 User's Manual |
 Service Manual |
|---|
Gallery
No images are currently available. If you own an XPS M170, help the site out by sending some in!
