Capacitor Reference - Compaq LTE Lite Power Supply

Note: I forgot to grab the value of the high-voltage electrolytic cap on the input side of the supply. These very rarely fail so you shouldn't need to replace it regardless.

Value	Count	Type	Diameter	Height
470uf 25v	2	Radial Electrolytic	~10mm	~20mm
68uf 35v	1	Radial Electrolytic	~6-7mm	15mm
10uf 50v	1	Radial Electrolytic	~5mm	~13mm

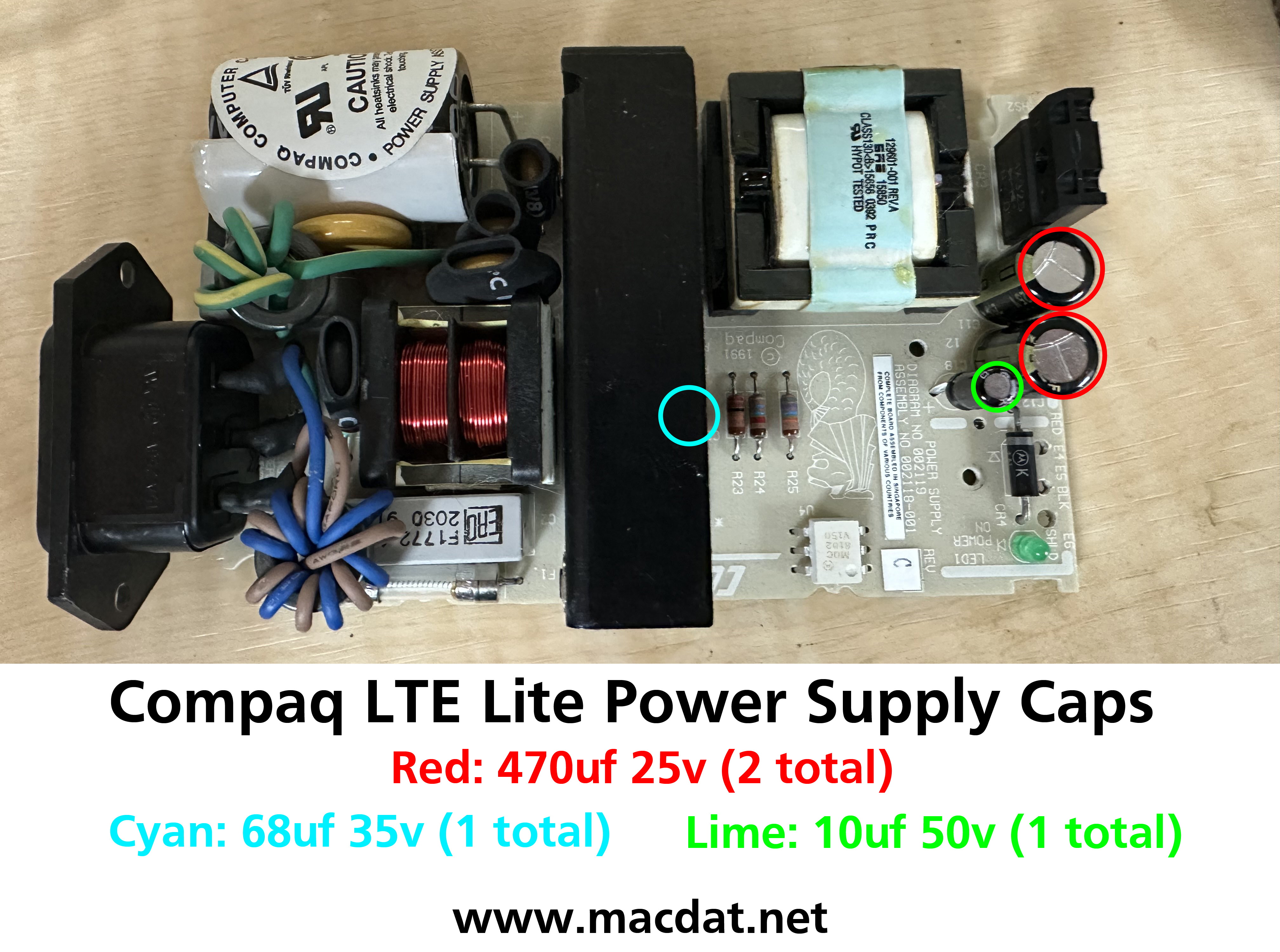

Reference Photo

Note that this photo was taken after the recap. One capacitor is hidden under the metal heat sink in the middle of the supply.

---

Page last updated (MM/DD/YYYY): 09/21/2024
Update Reason: reference image added
