Capacitor Reference - Compaq LTE Lite Docking Station
Power Supply
The internal power supply in the LTE Lite's docking station is very prone to leaking capacitors. It should be recapped even if it's still working.
Note: There are two revisions of this power supply. The one I have a list and photo for is the newer revision that is a single board design. The older revision used separate boards for running the laptop and running the dock. Both need recapping, but I do not yet have a list for the older revision.
| Value | Count | Type | Diameter | Height |
|---|---|---|---|---|
| 1000uf 25v | 1 | Radial Electrolytic | 11-12mm | ~25mm |
| 1000uf 10v | 2 | Radial Electrolytic | 10mm | ~20mm |
| 470uf 400wv | 1 | Radial Electrolytic | 30mm | 52mm |
| 330uf 35v | 2 | Radial Electrolytic | 10mm | ~20mm |
| 220uf 25v | 1 | Radial Electrolytic | 7-8mm | 11mm |
| 120uf 25v | 1 | Radial Electrolytic | 6mm | 15mm |
| 68uf 35v | 1 | Radial Electrolytic | 6mm | ~15mm |
| 10uf 50v | 4 | Radial Electrolytic | 5mm | 10mm |
| 1uf 50v | 2 | Radial Electrolytic | 5mm | 11mm |

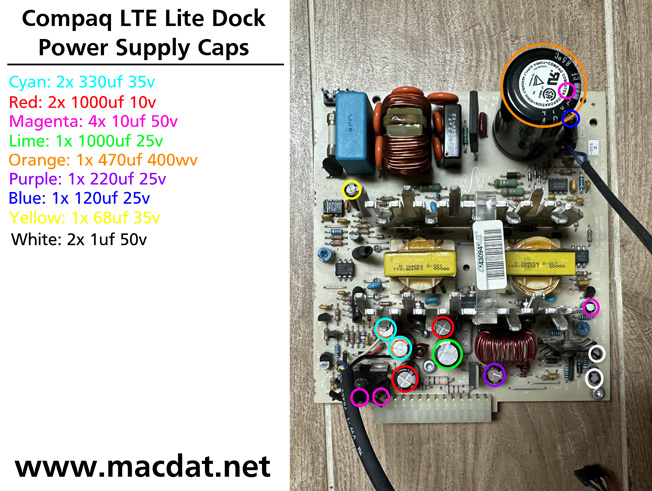

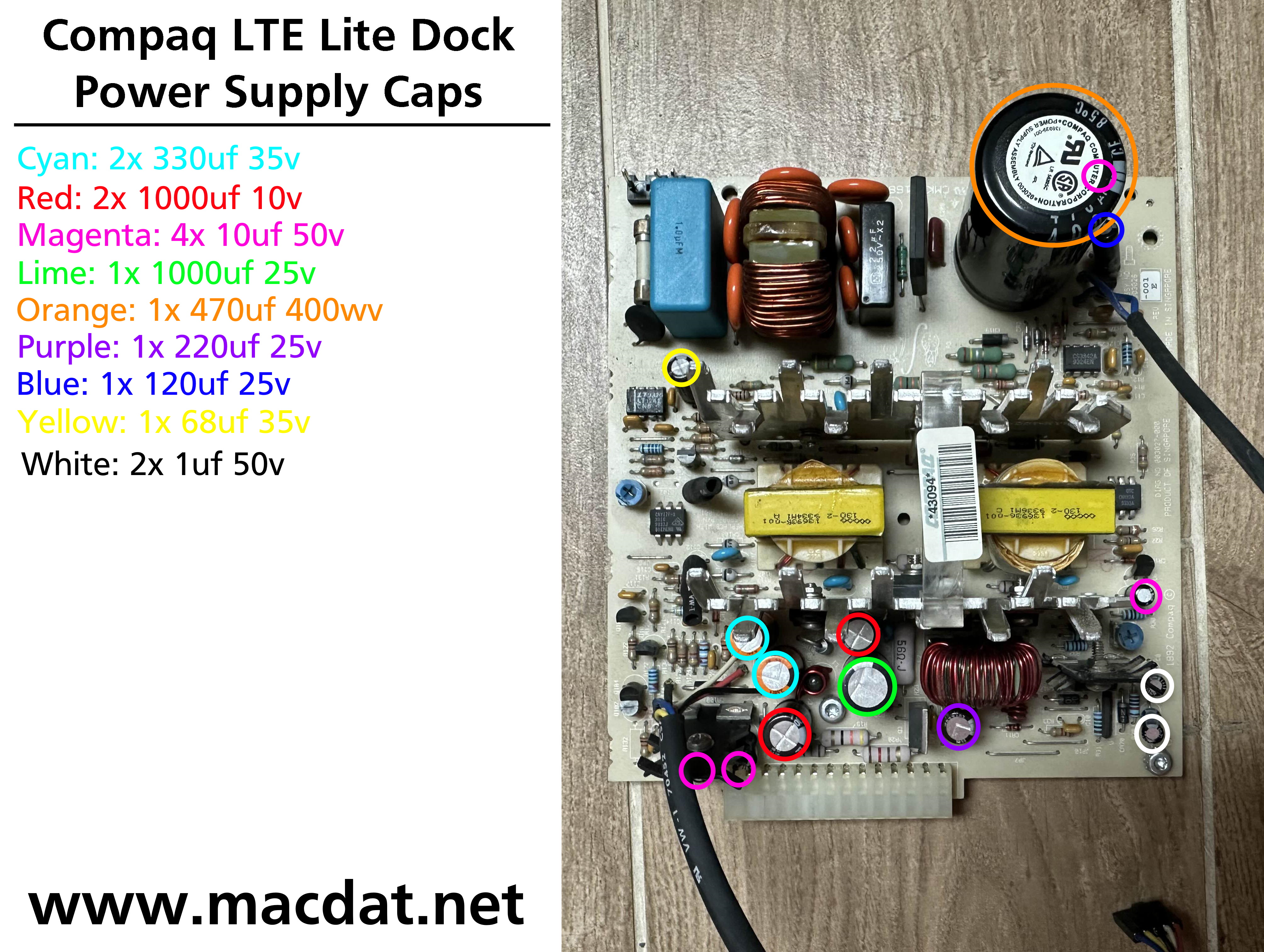

Reference Photo
Click the image below to view the full-size version.
Page last updated (MM/DD/YYYY): 09/21/2024
Update Reason: image added
