Capacitor Reference - Macintosh Quadra 840AV

All of the following are surface-mount electrolytic cans that need to be replaced.

Logic Board

Reference Image

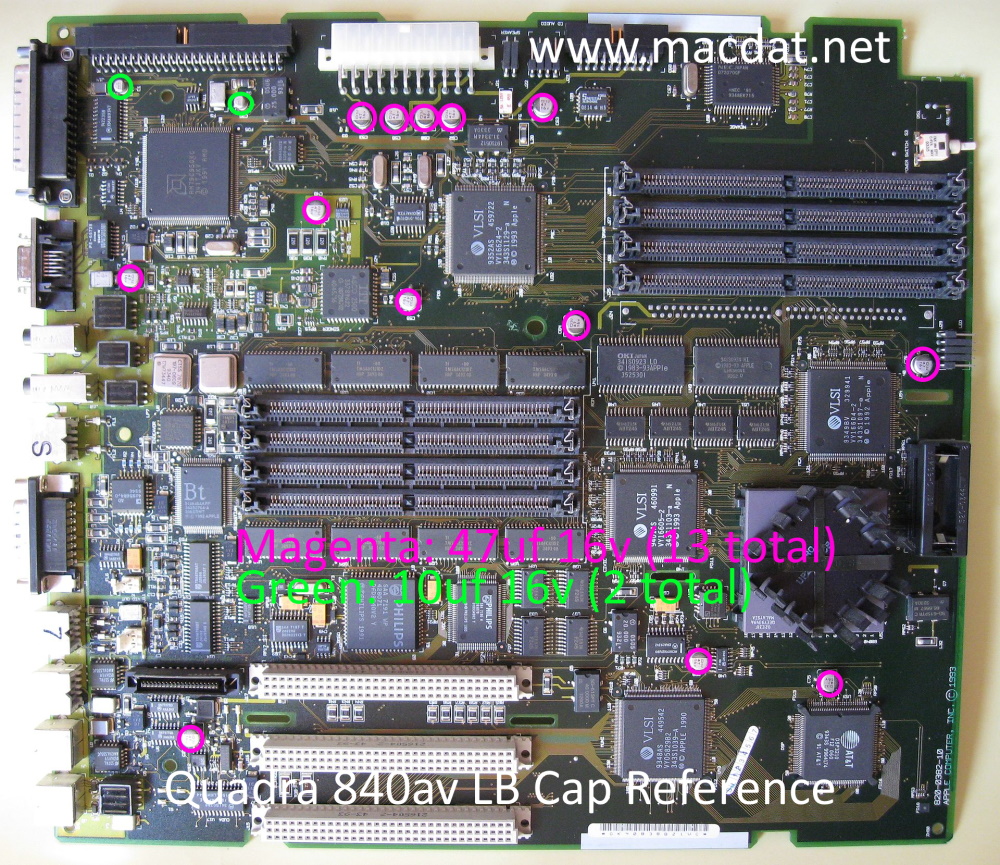

Quadra 840av Logic Board Capacitor Reference Image

Image Citation: Gona.eu - Wikimedia Commons, CC BY-SA 3.0. Image edited by me.



Page last updated (MM/DD/YYYY): 05/19/2024
Update Reason: links updated
