Capacitor Reference - Macintosh Quadra/Centris 610

All of the following are surface-mount electrolytic cans that need to be replaced.


Note: Other online sources say that these boards have 9 caps, not 10. All evidence I've seen, including this reference photo, says they have 10.

Logic Board

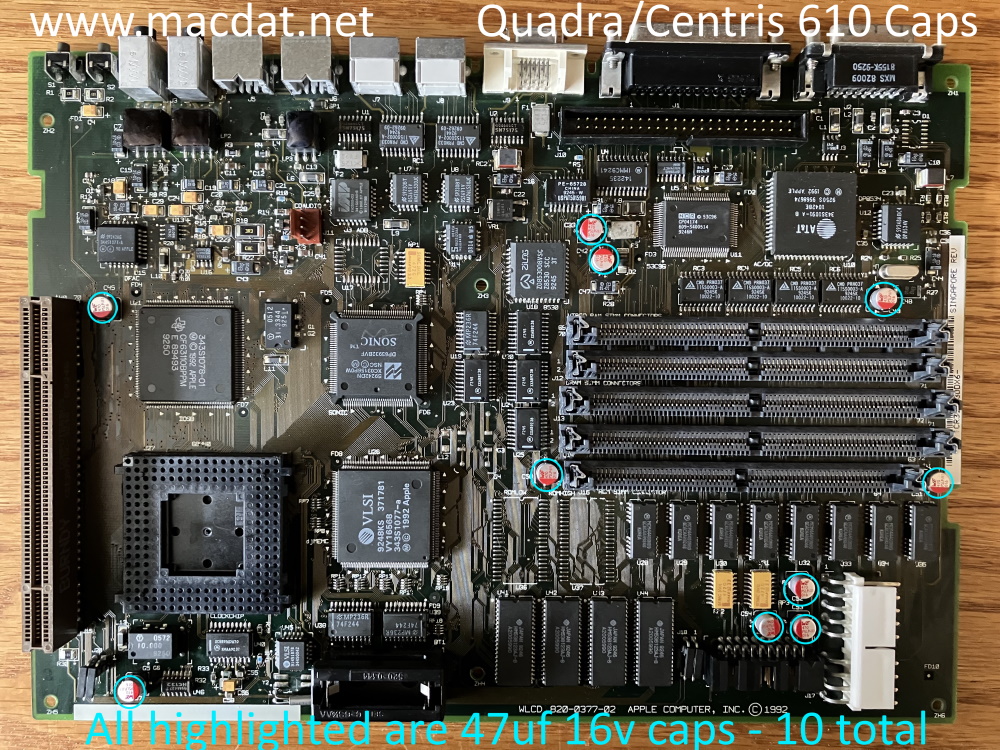

Reference Image - Provided by olePigeon from 68kMLA.org

Quadra/Centris 610 reference photo

Page last updated (MM/DD/YYYY): 05/19/2024
Update Reason: links updated
