Capacitor Reference - Power Macintosh 7100

Logic Board

• 1x 100uf 6v
• 25x 47uf 16v

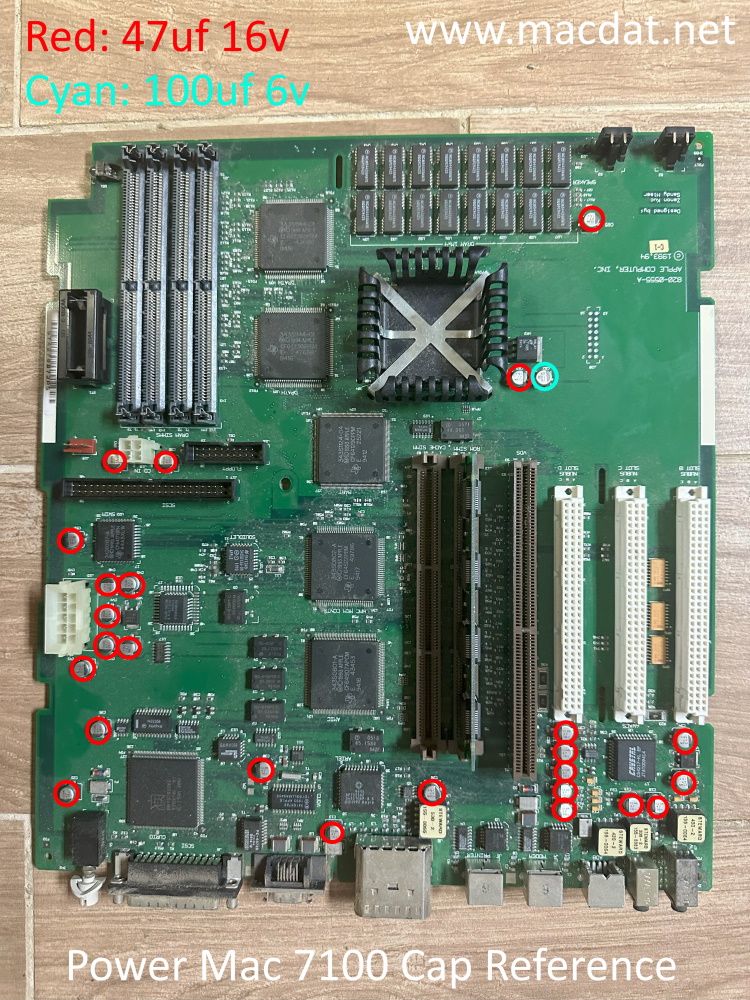

Reference Image - Logic Board

Click on the image below to view the full-size version of it.

---

Page last updated (MM/DD/YYYY): 05/19/2024
Update Reason: links updated
