Capacitor Reference - PowerBook 550c
Images and Reference Information for this rare PowerBook were provided by AEChadwick on the 68kMLA forums. Thank you very much!
Reference Values
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 25v | 1 | Surface-Mount Electrolytic |

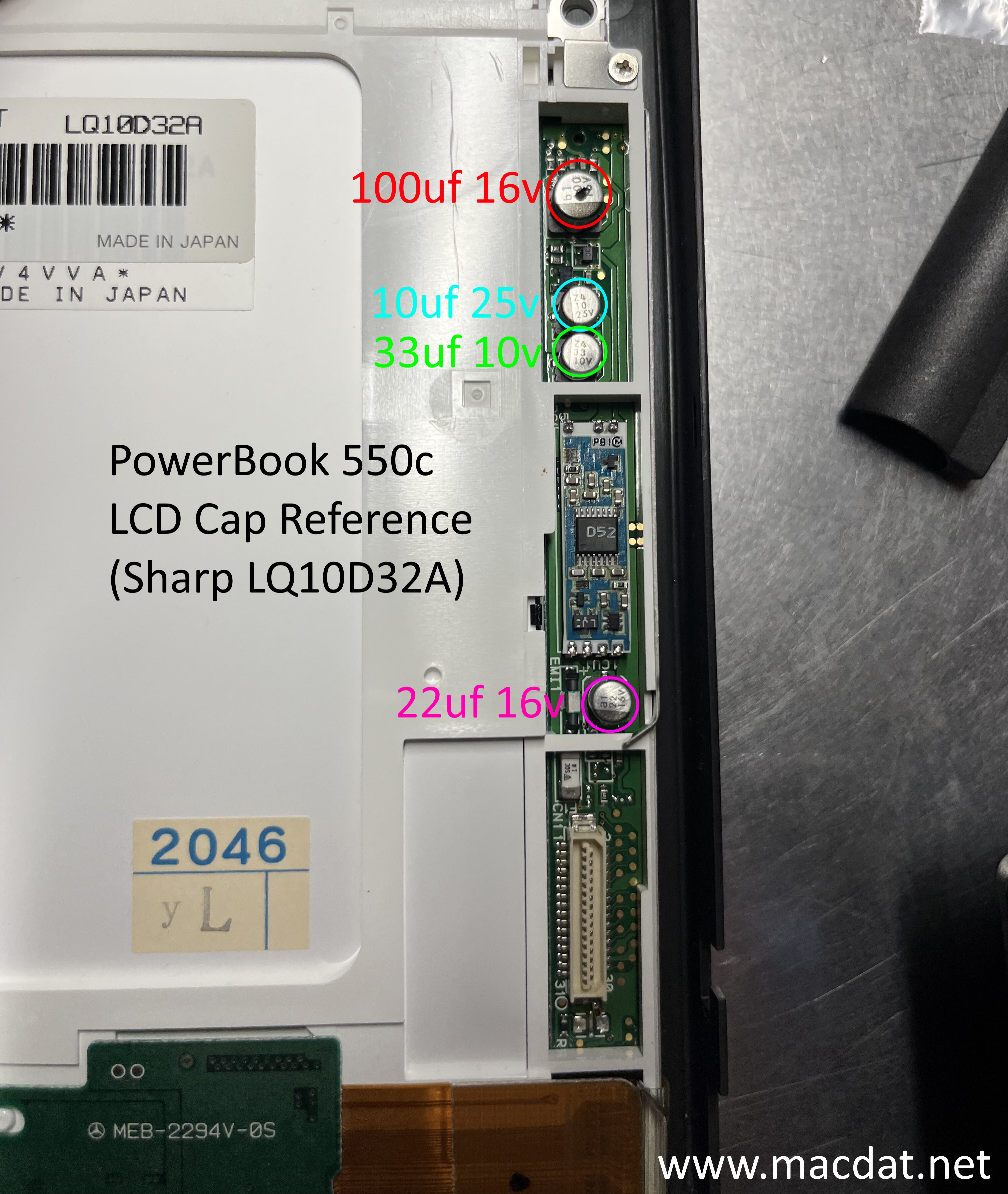

LCD (Sharp LQ10D32A)
| Value | Count | Type |
|---|---|---|
| 100uf 16v | 1 | Surface-Mount Electrolytic |
| 33uf 10v | 1 | Surface-Mount Electrolytic |
| 22uf 16v | 1 | Surface-Mount Electrolytic |
| 10uf 25v | 1 | Surface-Mount Electrolytic |

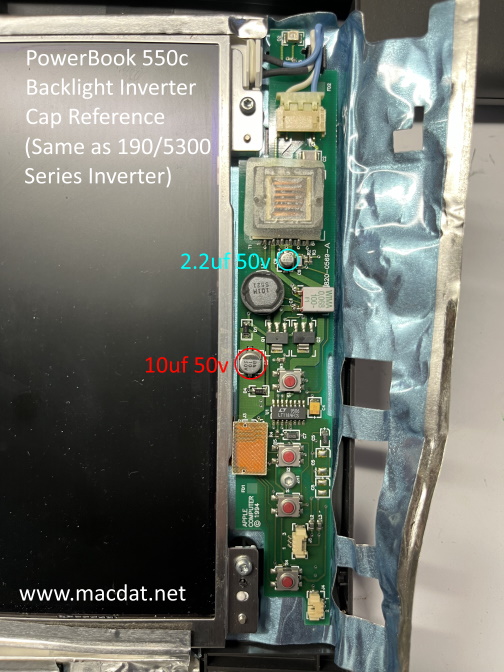

LCD Backlight Inverter Board
This board is identical to the PowerBook 190/5300 Inverter Board.
| Value | Count | Type |
|---|---|---|
| 10uf 50v | 1 | Surface-Mount Electrolytic |
| 2.2uf 50v | 1 | Surface-Mount Electrolytic |
Reference Images
Click on an image to view the full-size version of it.
Logic Board
LCD
Inverter
