Capacitor Reference - PowerBook 5300cs
A recap may bring a dead 5300ce back to life if corrosion and a broken power jack are ruled out as problems. Note that there were two LCD vendors for this model. Verify which you have before you order caps.
Reference Values
Logic Board
| Value | Count | Type |
|---|---|---|
| 33uf 25v | 1 | Surface-Mount Electrolytic |
DC/DC Power Board
| Value | Count | Type |
|---|---|---|
| 100uf 35v | 11 | Surface-Mount Electrolytic |
| 33uf 25v | 1 | Surface-Mount Electrolytic |
LCD (Torisan CFSTN LM-CJ53-22NAK)
| Value | Count | Type |
|---|---|---|
| 47uf 6v | 1 | Surface-Mount Electrolytic |
| 10uf 50v | 1 | Surface-Mount Electrolytic |
| 4.7uf 50v | 6 | Surface-Mount Electrolytic |
LCD (Sharp LM64C352)
| Value | Count | Type |
|---|---|---|
| 33uf 10v | 2 | Surface-Mount Electrolytic |
| 10uf 50v | 1 | Surface-Mount Electrolytic |
| 3.3uf 50v | 3 | Low Profile Surface-Mount Electrolytic |
Backlight Inverter Board
| Value | Count | Type |
|---|---|---|
| 10uf 50v | 1 | Surface-Mount Electrolytic |
| 2.2uf 50v | 1 | Surface-Mount Electrolytic |
Reference Images
Click an image below to view the full-size version.

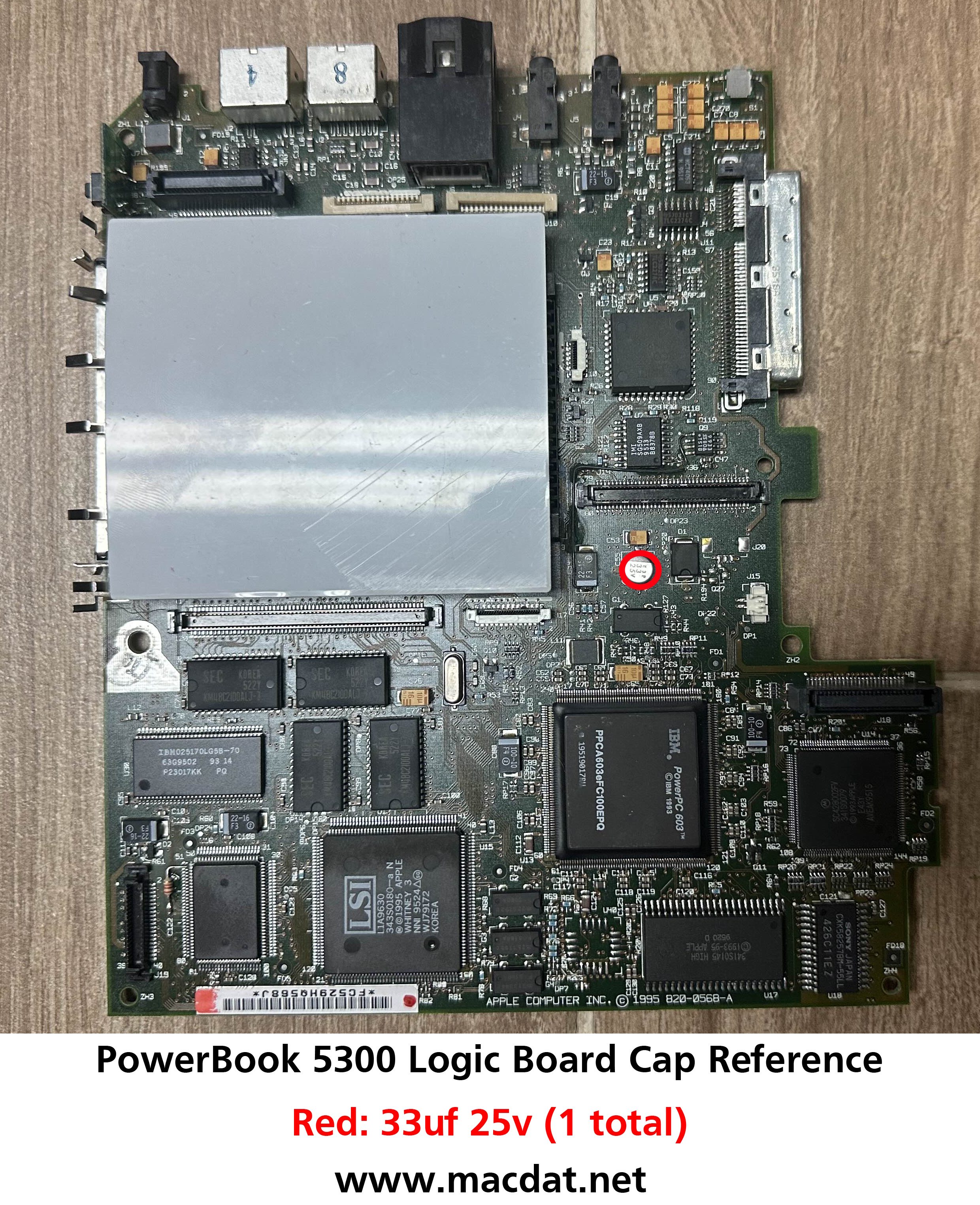

Logic Board

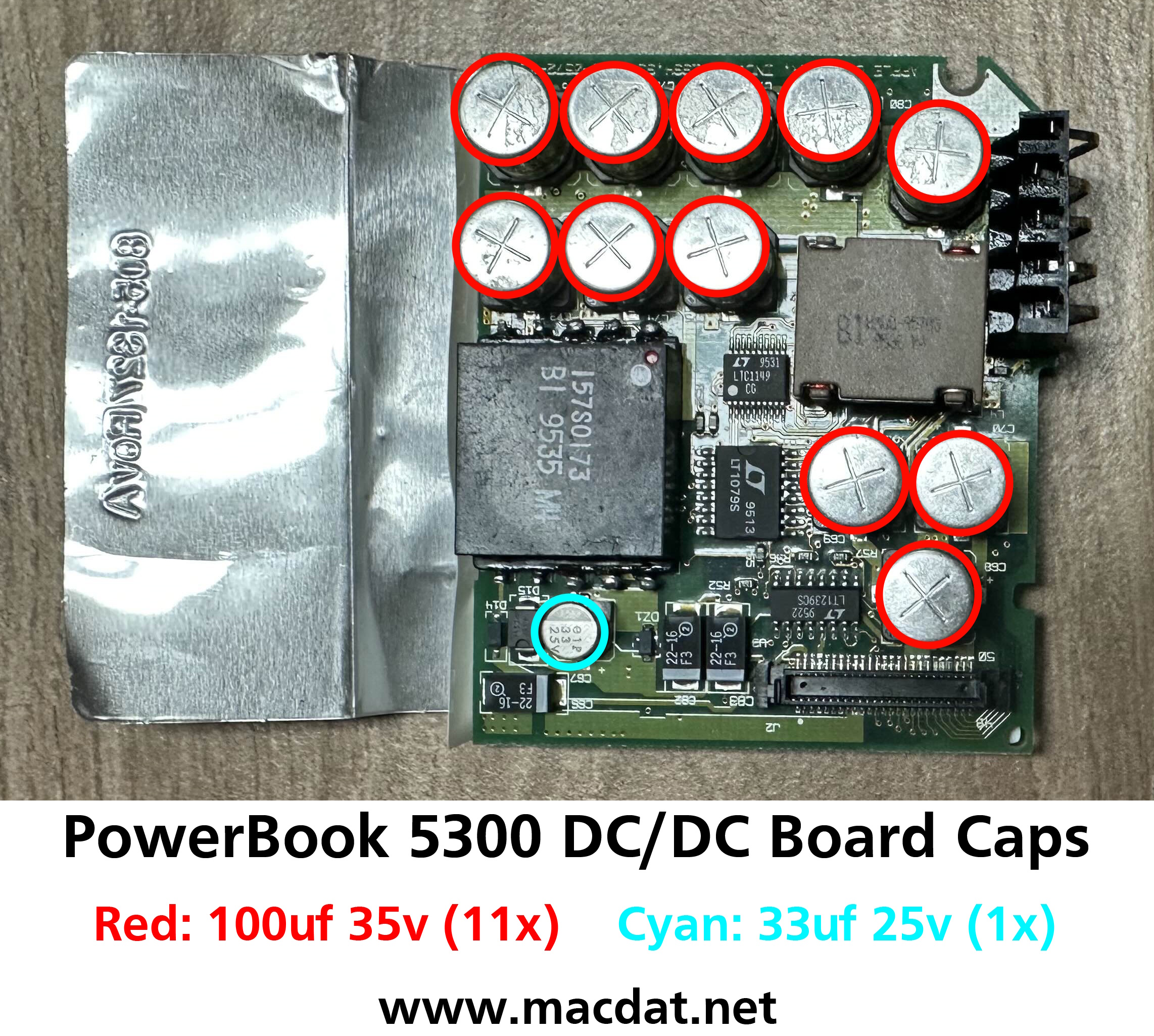

DC/DC Board
LCD (ToriSan)
Inverter Board
Page last updated (MM/DD/YYYY): 09/30/2024
Update Reason: new reference added, images added, formatting updated
