Capacitor Reference - PowerBook 5300ce
A recap may bring a dead 5300ce back to life if corrosion and a broken power jack are ruled out as problems.
Reference Values
Logic Board
| Value | Count | Type |
|---|---|---|
| 33uf 25v | 1 | Surface-Mount Electrolytic |
DC/DC Power Board
| Value | Count | Type |
|---|---|---|
| 100uf 35v | 11 | Surface-Mount Electrolytic |
| 33uf 25v | 1 | Surface-Mount Electrolytic |

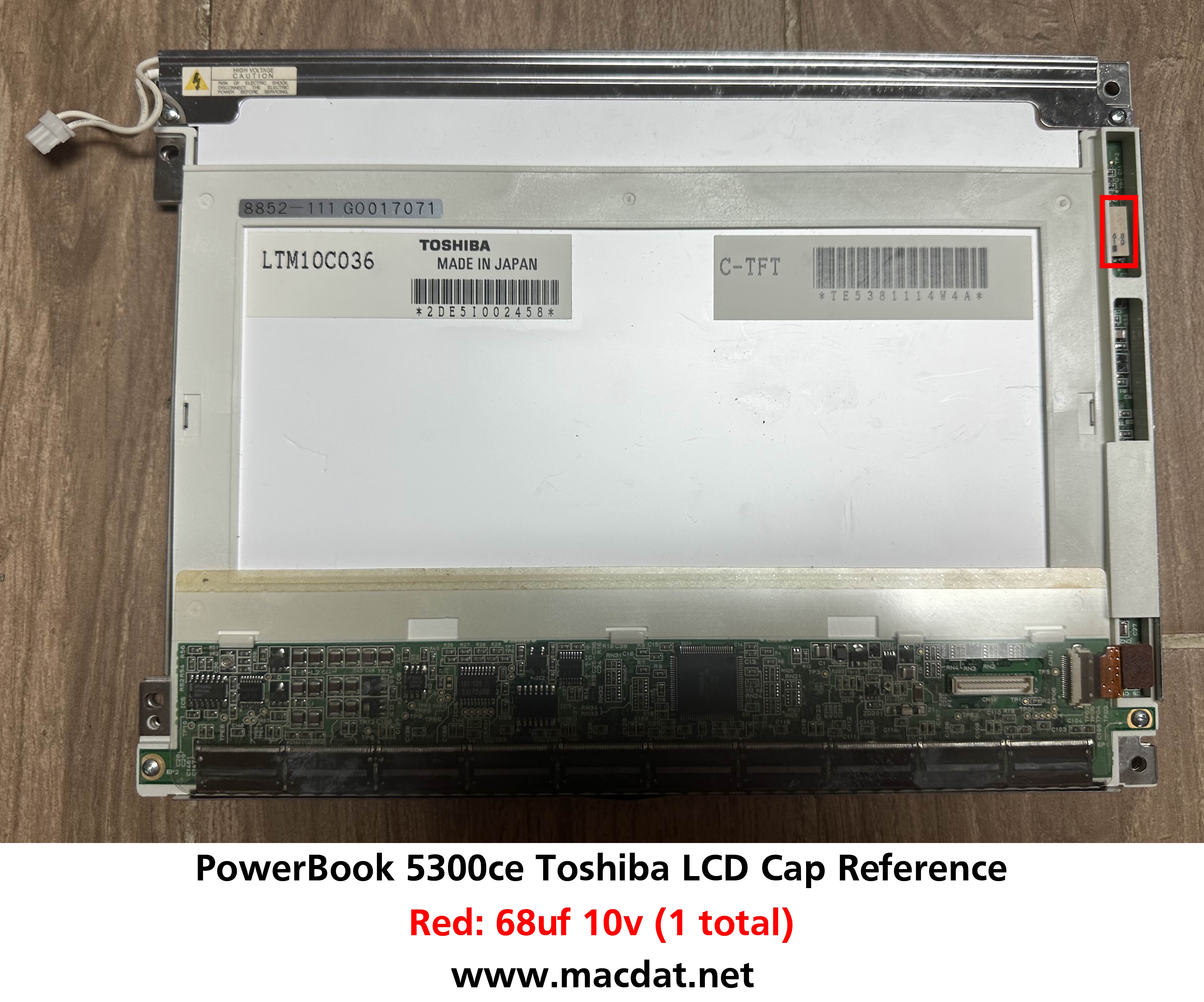

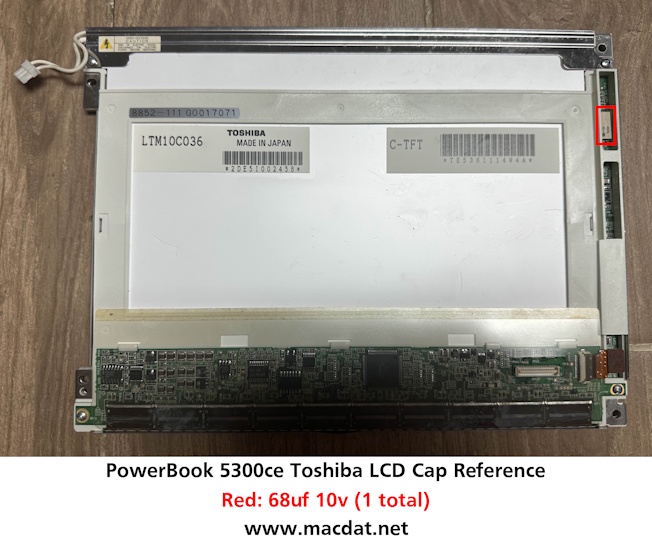

Display (Toshiba LTM10C036)
The cap here is a low-profile type and the replacement cap much be very short and thin in order to fit.
| Value | Count | Type |
|---|---|---|
| 68uf 10v | 1 | Low Profile Surface-Mount Electrolytic |
Backlight Inverter Board
| Value | Count | Type |
|---|---|---|
| 10uf 50v | 1 | Surface-Mount Electrolytic |
| 2.2uf 50v | 1 | Surface-Mount Electrolytic |
Reference Images
Click an image below to view the full-size version.
Logic Board
DC/DC Board
LCD
Inverter Board
Page last updated (MM/DD/YYYY): 09/30/2024
Update Reason: images added
