Capacitor Reference - PowerBook 520c
I'd recommend recapping the LCD (which I don't have the values for) and the logic board in a 520c.
Reference Values
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 25v | 1 | Surface-Mount Electrolytic |
LCD (Sharp LM64C12P)
| Value | Count | Type |
|---|---|---|
| 10uf 50v | 6 | Low Profile Radial Electrolytic |
Backlight Inverter Board
The polymer caps very rarely fail - replace them only if you want to.
| Value | Count | Type |
|---|---|---|
| 220uf 6.3v | 1 | Low Profile Radial Electrolytic |
| 22uf 6.3v | 1 | Low Profile Radial Polymer |
| 6.8uf 25v | 2 | Low Profile Radial Polymer |
Reference Images
Click on an image to view the full-size version of it.

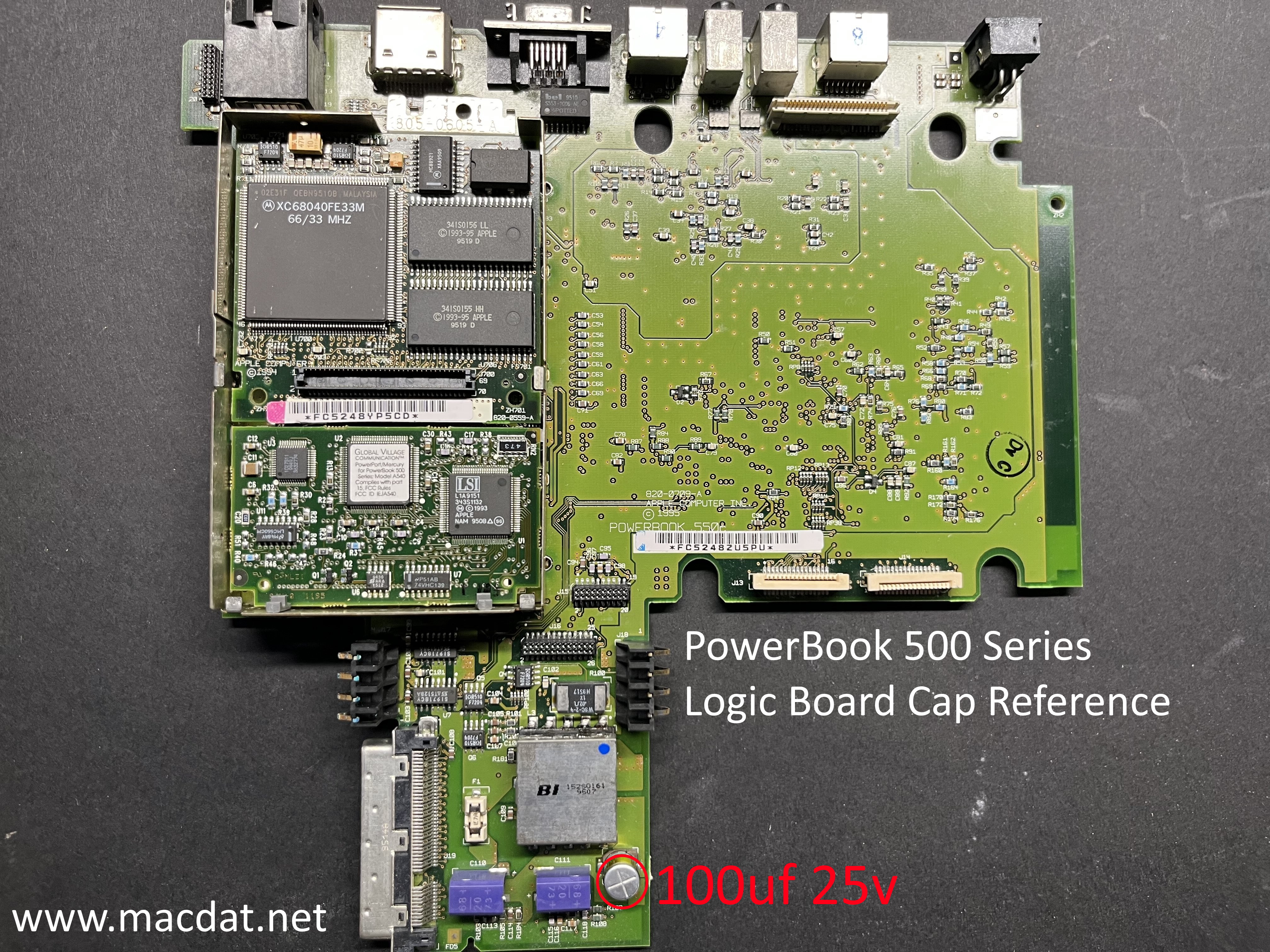

Logic Board
Logic board reference photo courtesy of AEChadwick.

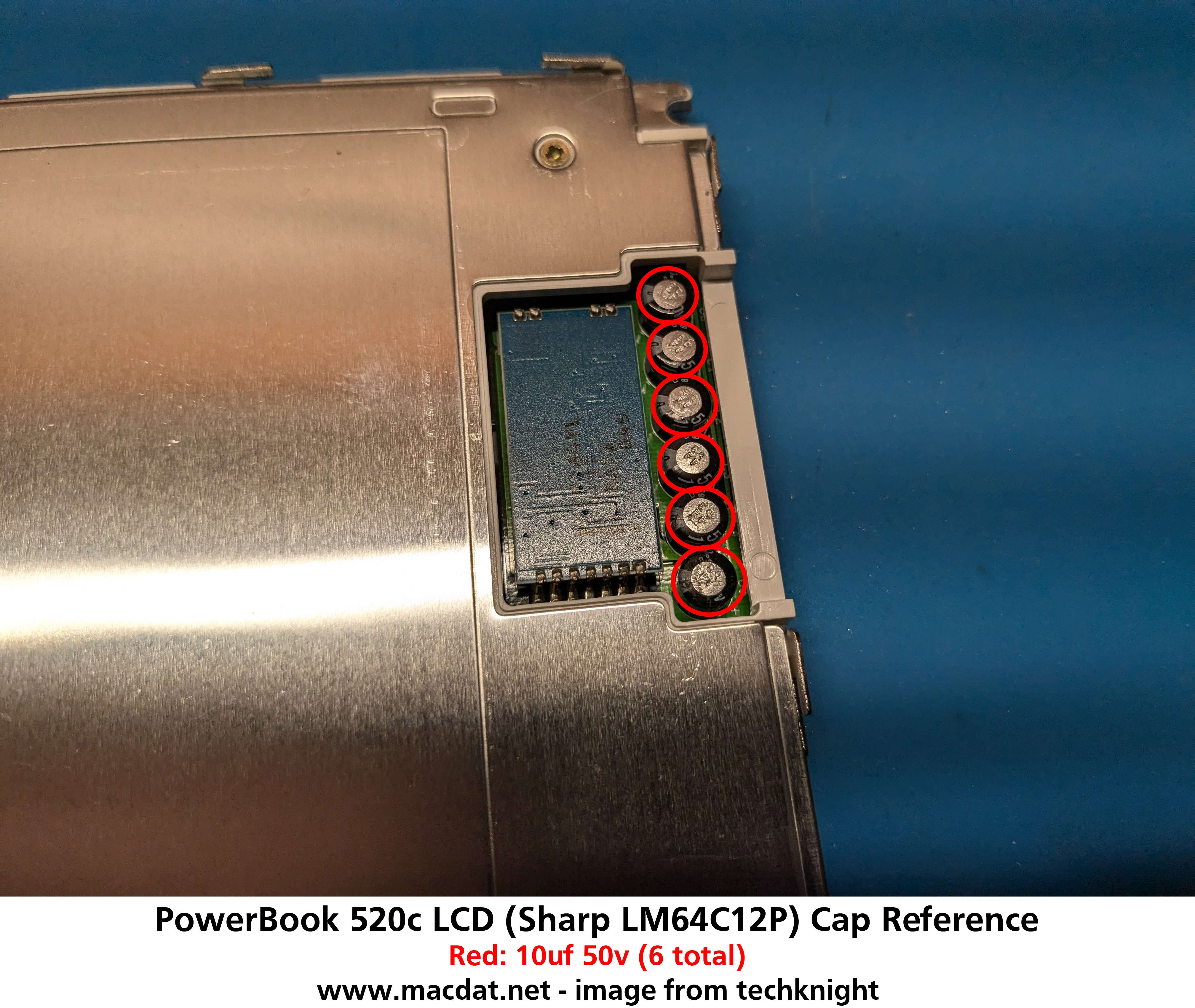

LCD

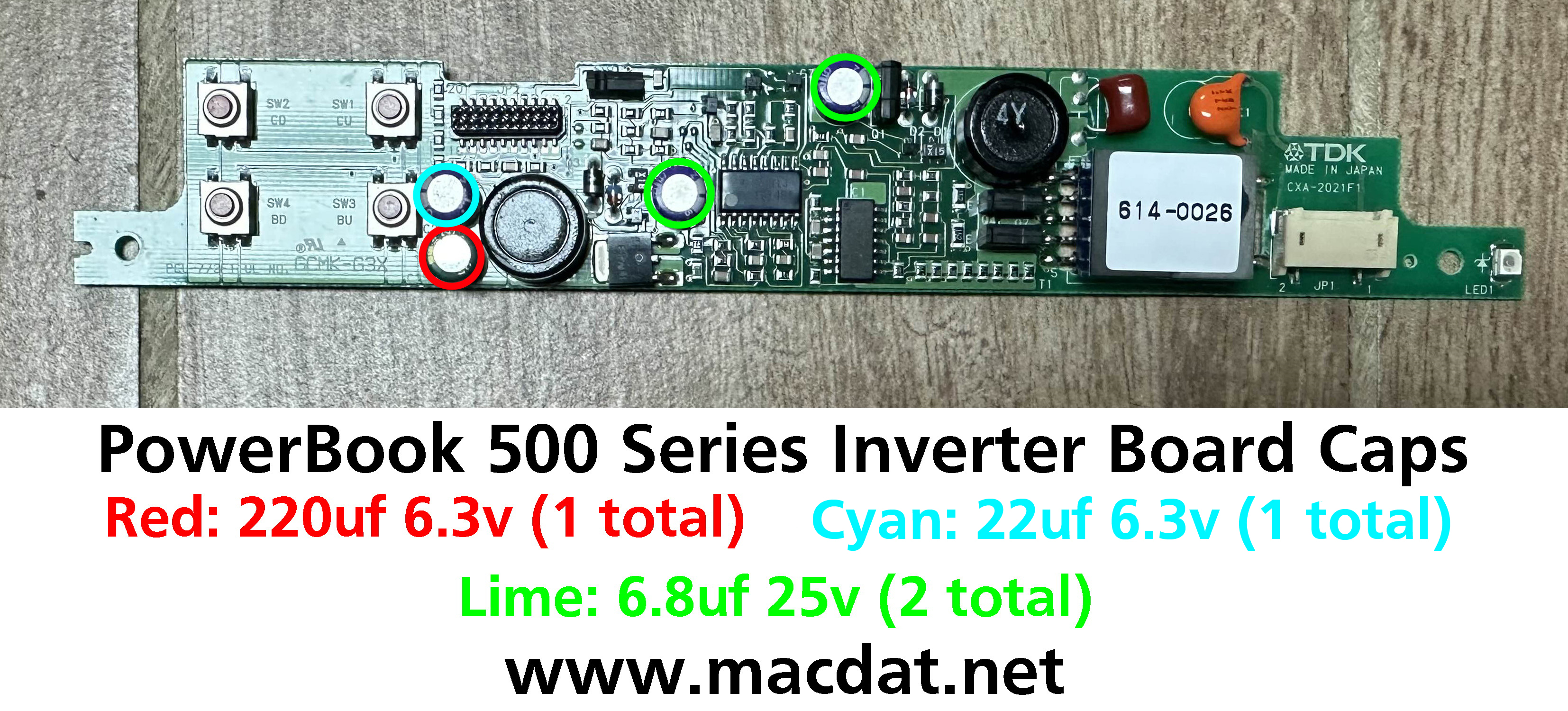

Inverter
Page last updated (MM/DD/YYYY): 10/12/2024
Update Reason: lcd reference added
