Capacitor Reference - PowerBook 3400c
At this point (2024), the PowerBook 3400c rarely needs to be recapped, however, I have heard of failing caps on the DC Power Board preventing these units from booting. And like any old computer with electrolytic caps, it will need this done eventually, so why not now?
Disclaimer - After recapping my 3400c with this list, the sound can occasionally crackle as the system warms up. This only happens on occasion, but it did not happen at all before the recap. It always goes away completely after by the time it boots. It could be an issue with my PowerBook, or an issue with the caps I used. I just thought that was important to mention.
Reference Values

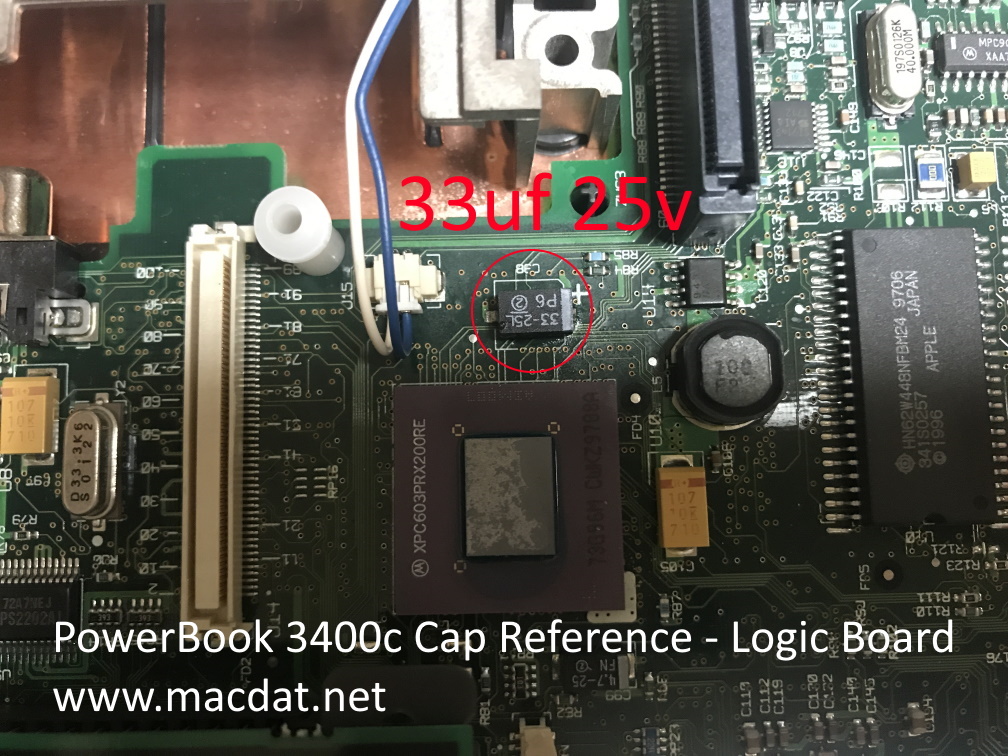

Logic Board
| Value | Count | Type |
|---|---|---|
| 33uf 25v | 1 | Surface-Mount Electrolytic |

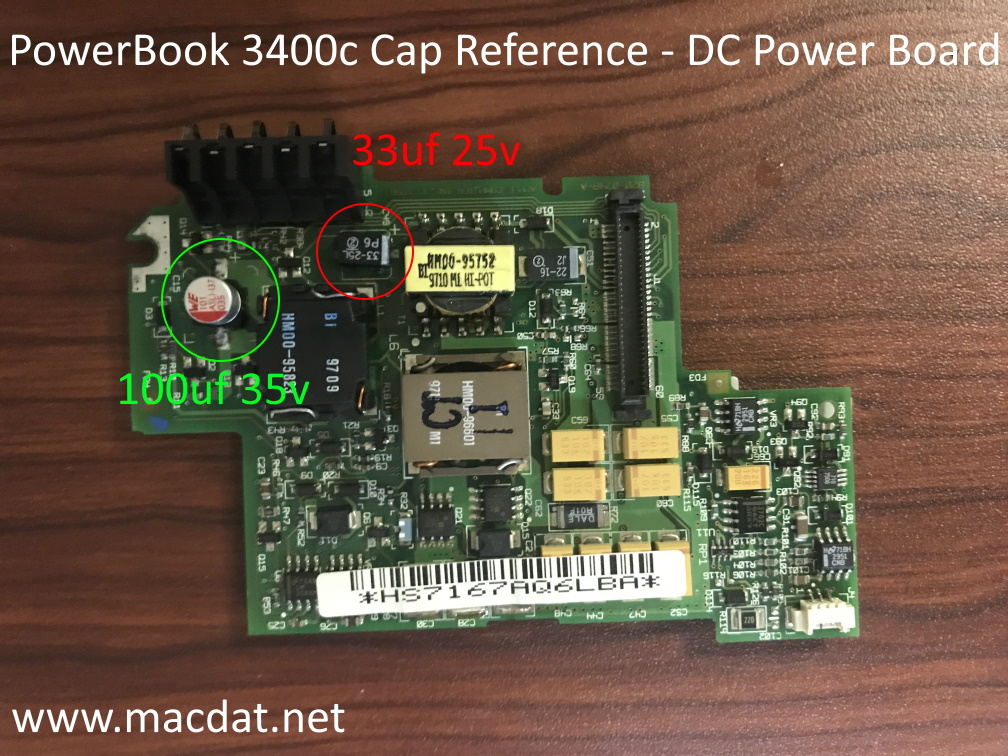

DC/DC Power Board
| Value | Count | Type |
|---|---|---|
| 100uf 35v | 1 | Surface-Mount Electrolytic |
| 33uf 25v | 1 | Surface-Mount Electrolytic |

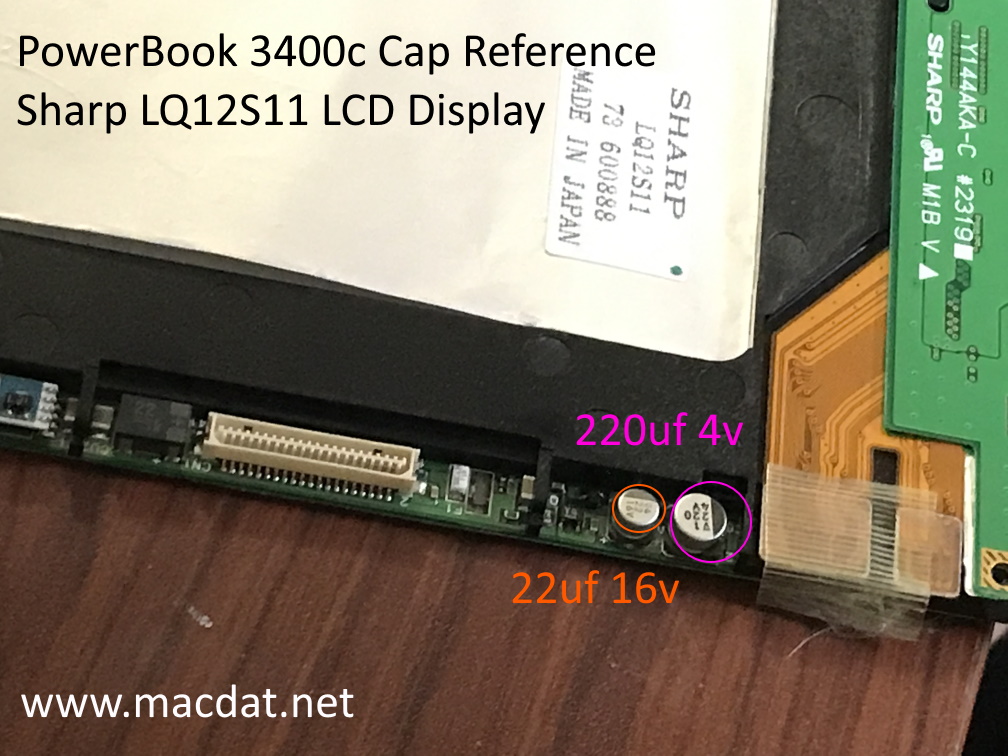

LCD (Sharp LQ12S11)
There was also a Samsung LCD which used all solid-state caps.
| Value | Count | Type | Diameter |
|---|---|---|---|
| 220uf 4v | 1 | Surface-Mount Electrolytic | 6mm |
| 22uf 16v | 1 | Surface-Mount Electrolytic | 5mm |

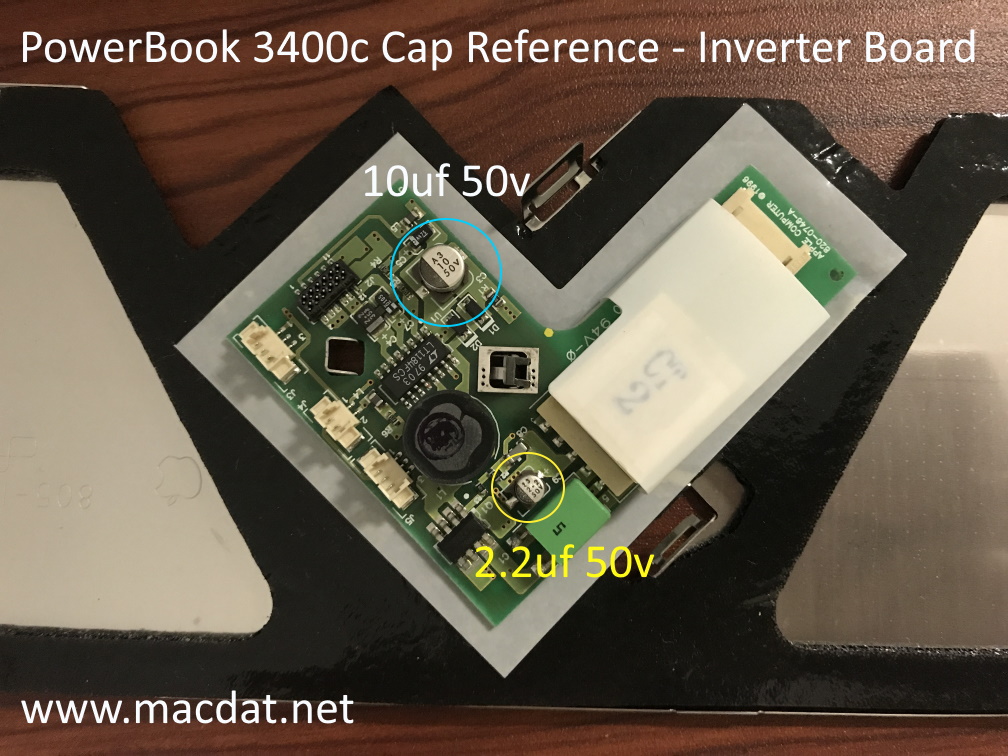

Backlight Inverter/Subwoofer board
| Value | Count | Type | Diameter |
|---|---|---|---|
| 10uf 50v | 1 | Surface-Mount Electrolytic | 6mm |
| 2.2uf 50v | 1 | Surface-Mount Electrolytic | 3mm |
Reference Photos
Some images were taken after I recapped the computer. All highlighted caps are electrolytic cans on an unmodified system.
Logic Board
DC/DC Power Board
LCD
Inverter
Page last updated (MM/DD/YYYY): 09/27/2024
Update Reason: formatting updated
