Capacitor Reference - PowerBook 190cs
You don't need to recap a 190cs but the caps do sometimes go bad and keep them from starting.
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 35v | 6 | Surface-Mount Electrolytic |
| 47uf 35v | 1 | Surface-Mount Electrolytic |
| 33uf 25v | 1 | Surface-Mount Electrolytic |
LCD (Torisan CFSTN LM-CJ53-22NAK)
There was also a Sharp LCD which I don't have the values for.
| Value | Count | Type |
|---|---|---|
| 47uf 6v | 1 | Surface-Mount Electrolytic |
| 10uf 50v | 1 | Surface-Mount Electrolytic |
| 4.7uf 50v | 6 | Surface-Mount Electrolytic |
LCD (Sharp LM64C352)
| Value | Count | Type |
|---|---|---|
| 33uf 10v | 2 | Surface-Mount Electrolytic |
| 10uf 50v | 1 | Surface-Mount Electrolytic |
| 3.3uf 50v | 3 | Low Profile Surface-Mount Electrolytic |
Backlight Inverter Board
| Value | Count | Type |
|---|---|---|
| 10uf 50v | 1 | Surface-Mount Electrolytic |
| 2.2uf 50v | 1 | Surface-Mount Electrolytic |
Reference Images
Logic Board and LCD photos provided by oldcrap.org

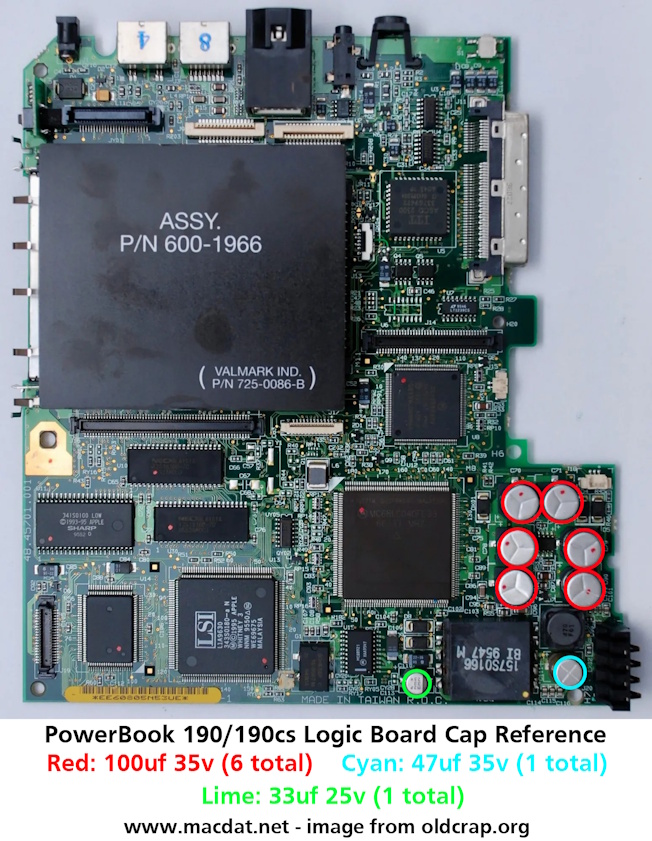

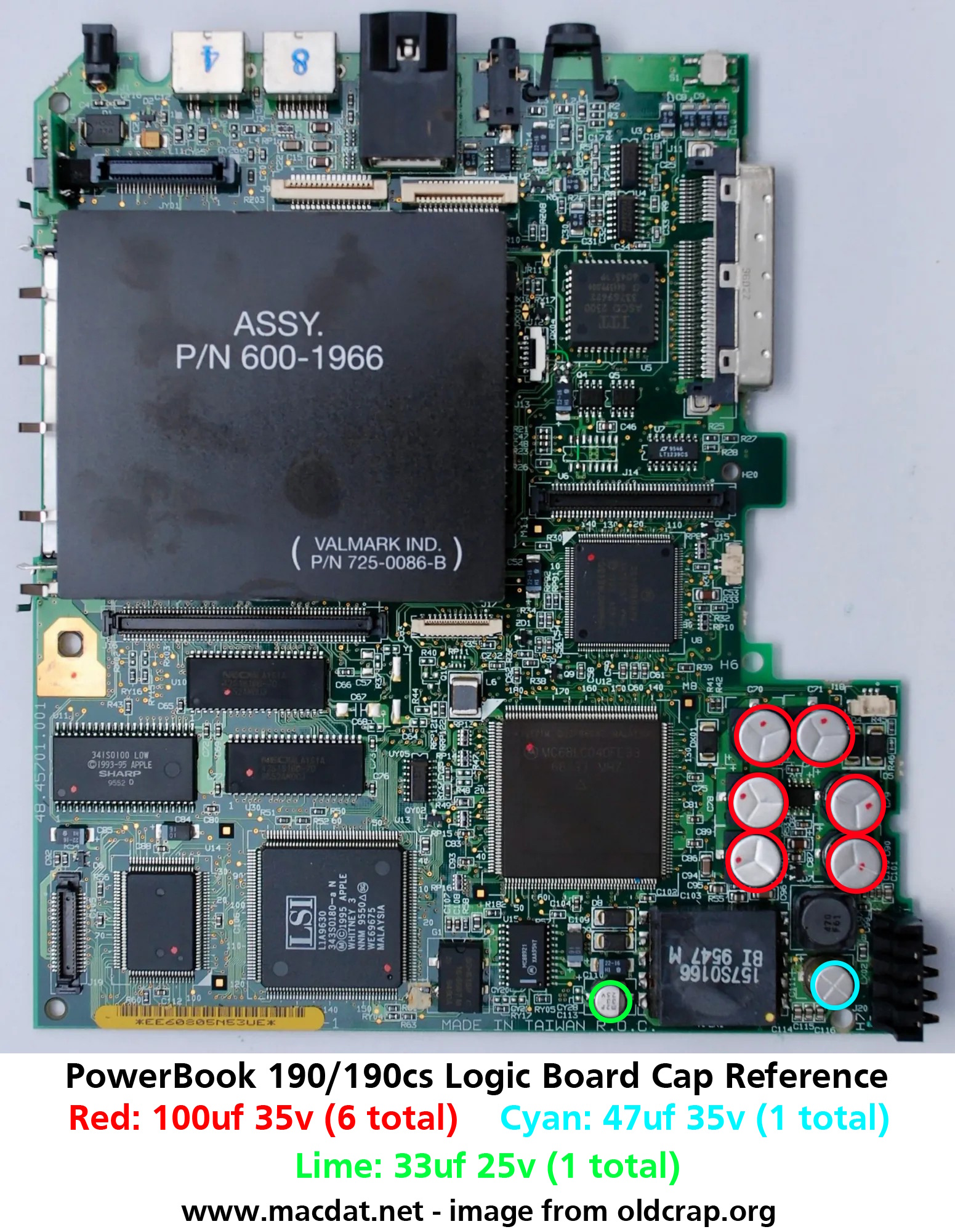

Logic Board

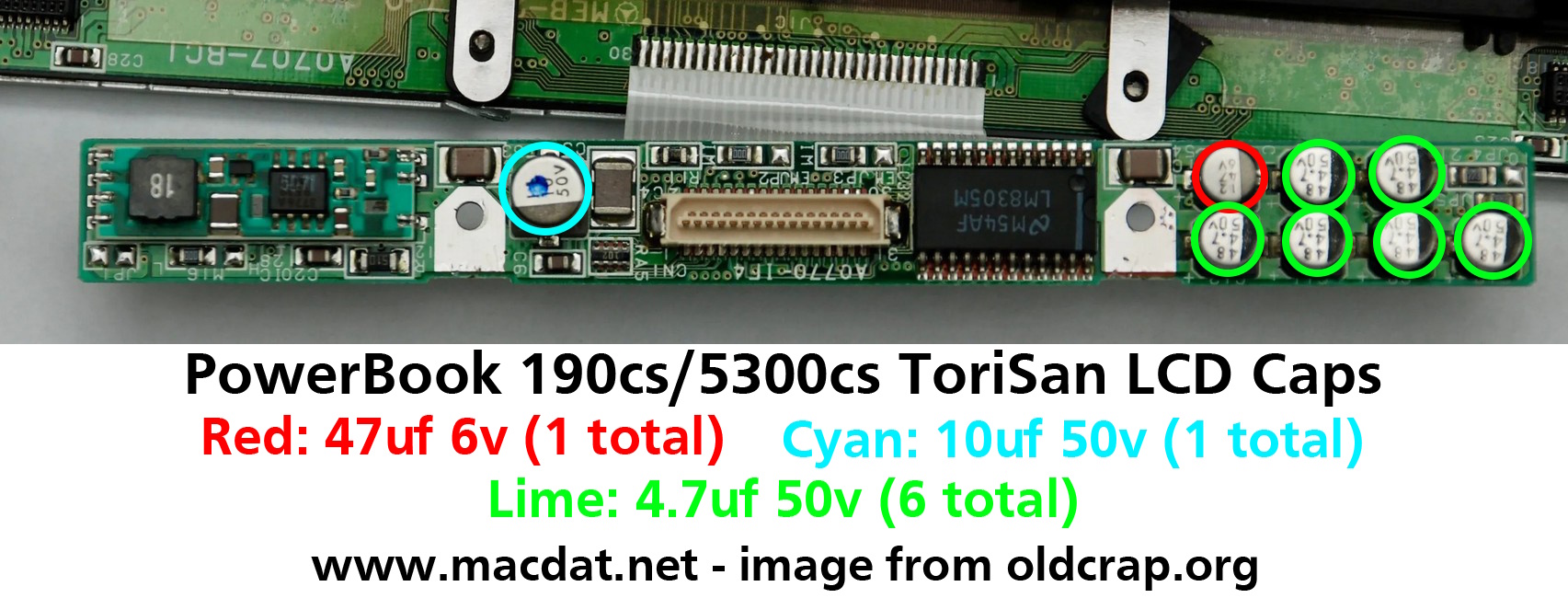

LCD (ToriSan)

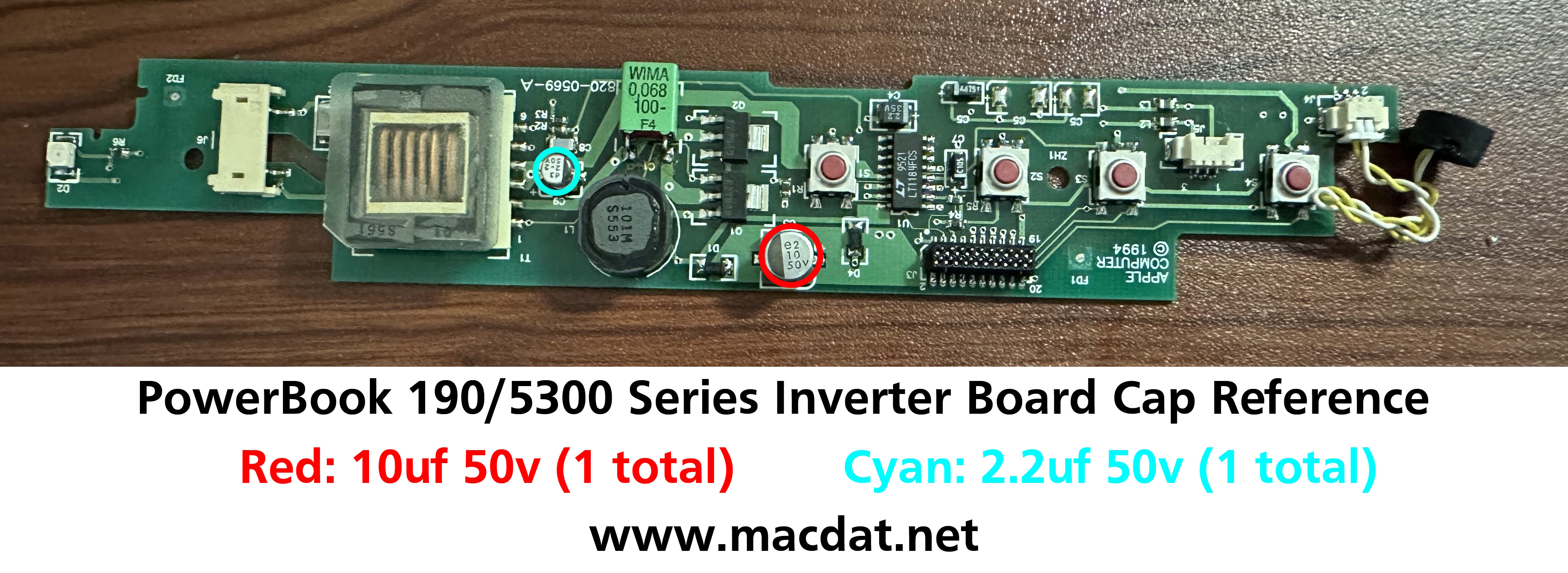

Backlight Inverter Board
Page last updated (MM/DD/YYYY): 09/25/2024
Update Reason: updated everything
