Capacitor Reference - PowerBook 190
You don't need to recap a 190 but the caps do sometimes go bad and keep them from starting.
Reference Values
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 35v | 6 | Surface-Mount Electrolytic |
| 47uf 35v | 1 | Surface-Mount Electrolytic |
| 33uf 25v | 1 | Surface-Mount Electrolytic |
Display (Casio MFSTN MD805TT00-C1)
| Value | Count | Type | Diameter | Height |
|---|---|---|---|---|
| 3.3uf 35v | 5 | Low Profile Surface-Mount Electrolytic | - | - |
| 100uf 16v | 3 | Radial Electrolytic | 5mm | 12mm |
Display (Sharp LM64185P)
| Value | Count | Type |
|---|---|---|
| 10uf 16v | 1 | Low Profile Surface-Mount Electrolytic |
| 3.3uf 35v | 6 | Low Profile Surface-Mount Electrolytic |
Backlight Inverter Board
| Value | Count | Type |
|---|---|---|
| 10uf 50v | 1 | Surface-Mount Electrolytic |
| 2.2uf 50v | 1 | Surface-Mount Electrolytic |
Reference Images
Logic board and LCD photos provided by oldcrap.org
Logic Board

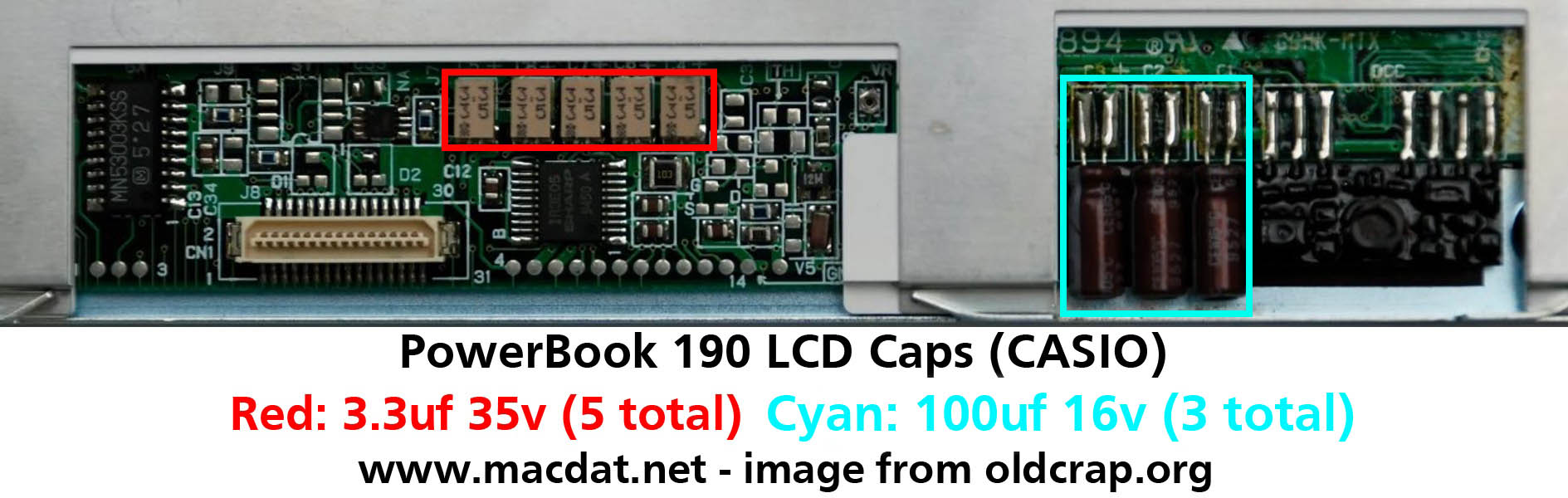

LCD (Casio)
Backlight Inverter Board
Page last updated (MM/DD/YYYY): 12/20/2024
Update Reason: full casio reference added!
