Capacitor Reference - PowerBook 180c
The PowerBook 180c has no electrolytic capacitors on the logic board. This means that the only caps you will have to replace will be those on the Display.
Only replace the LCD caps with electrolytic, polymer, or tantalum. Ceramic caps may introduce contrast drifting problems due to the fact that their capacitance varies based on voltage load.
Reference Values

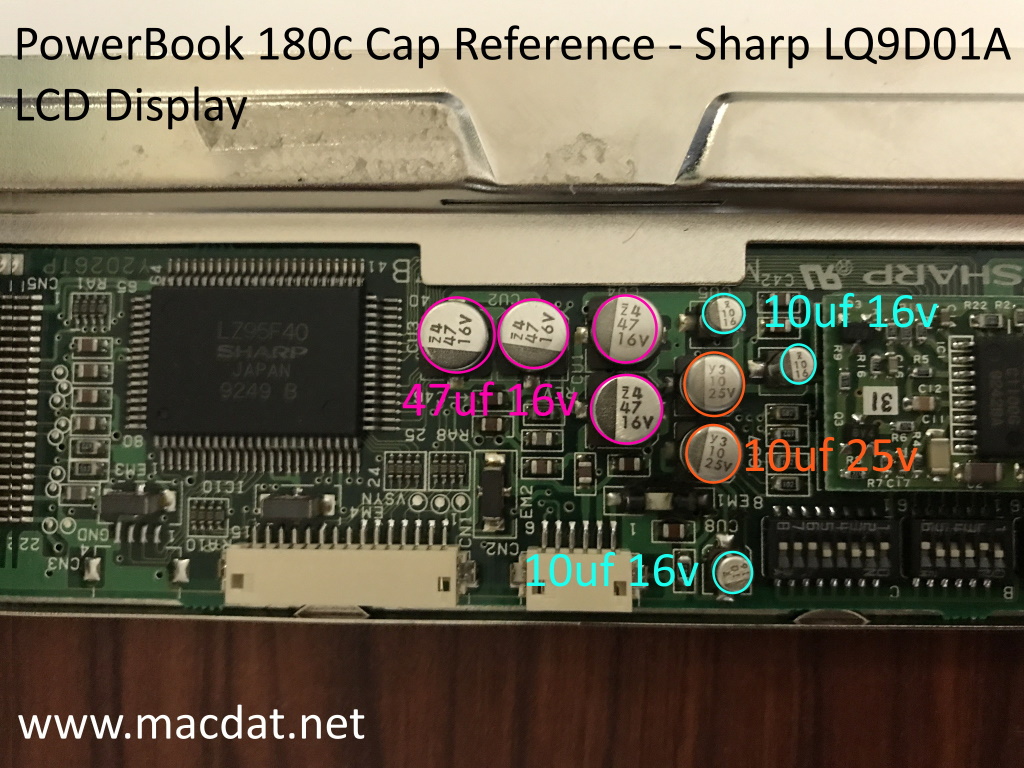

LCD (Sharp LQ9D01 Series)
This LCD is a recap on sight, even if it's working. The caps ARE leaking (yes, I promise, they are), and this will eventually lead to unrepairable corrosion damage.
| Value | Count | Type |
|---|---|---|
| 47uf 16v | 4 | Surface-Mount Electrolytic |
| 10uf 25v | 2 | Surface-Mount Electrolytic |
| 10uf 16v | 3 | Surface-Mount Electrolytic |
Trackball
| Value | Count | Type |
|---|---|---|
| 10uf 16v | 1 | Radial Electrolytic |
Reference Images
LCD
Trackball
Photo provided by @GRudolf94 on 68kMLA.org
Page last updated (MM/DD/YYYY): 09/30/2024
Update Reason: formatting updated
