Capacitor Reference - PowerBook 180
The PowerBook 180's logic board and screen are all solid-state. The only electrolytic capacitors in the entire system that may need replacing is a single one on the LCD Inverter Board, and a single one on the trackball. There is a second cap on the inverter board, but it is a purple solid polymer capacitor that has no liquid electrolyte in it. These rarely fail.
Reference Values
LCD Inverter Board
| Value | Count | Type |
|---|---|---|
| 47uf 16v | 1 | Low Profile Radial Electrolytic |
| 33uf 10v | 1 | Low Profile Radial Polymer |
Trackball
| Value | Count | Type |
|---|---|---|
| 10uf 16v | 1 | Radial Electrolytic |
Reference Images
Click on an image to view the full-size version of it.
Images provided by @GRudolf94 on 68kMLA.org

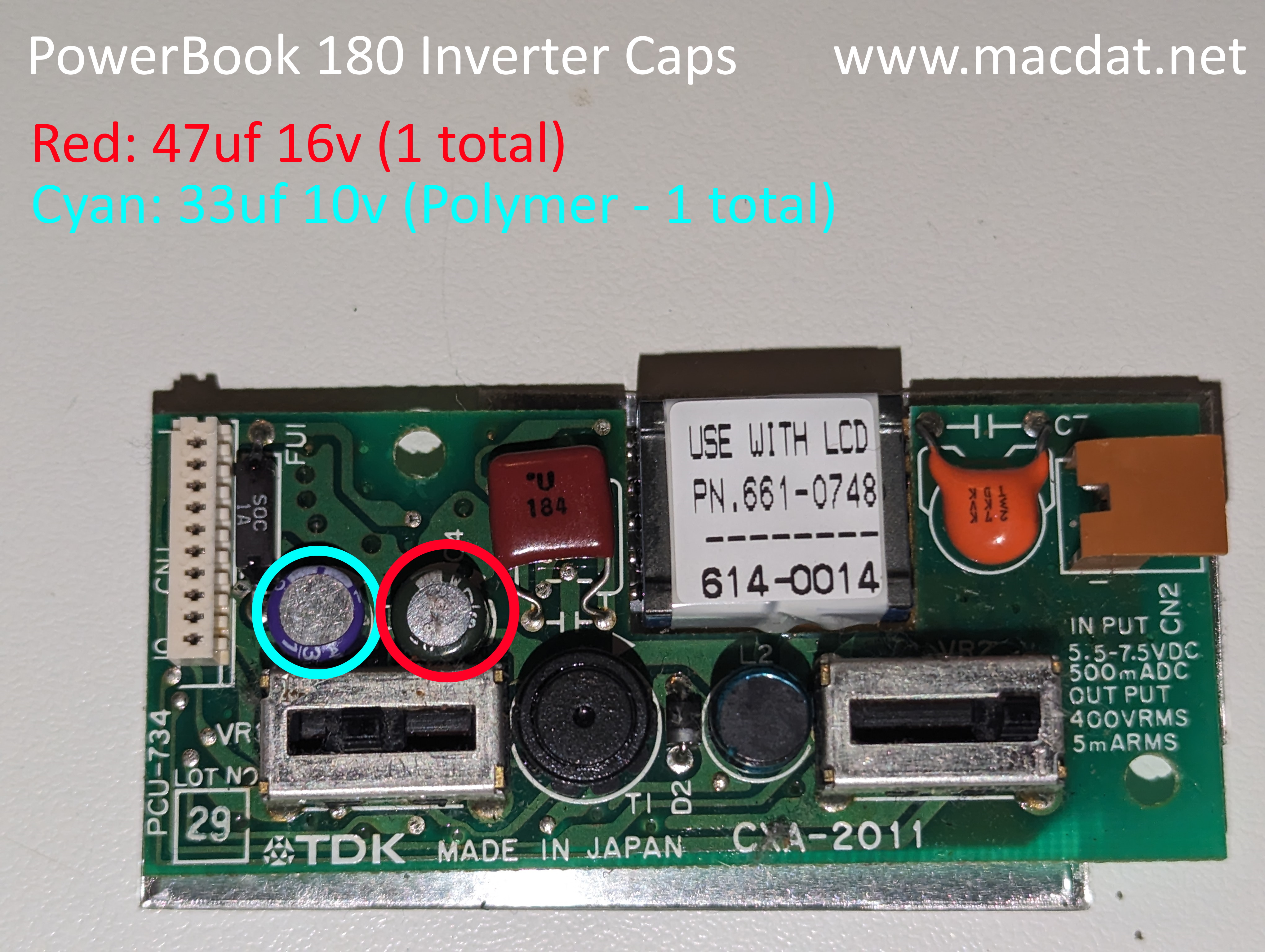

Inverter
Trackball
Page last updated (MM/DD/YYYY): 09/30/2024
Update Reason: formatting updated
