Capacitor Reference - PowerBook 170
The PowerBook 170's logic board and screen are all solid-state. The only electrolytic capacitors in the entire system that may need replacing is a single one on the LCD Inverter Board, and a single one on the trackball.
Reference Values
LCD Backlight Inverter Board
| Value | Count | Type |
|---|---|---|
| 47uf 16v | 1 | Radial Electrolytic (low-profile) |
Trackball
| Value | Count | Type |
|---|---|---|
| 10uf 16v | 1 | Radial Electrolytic |
Reference Images
Click on an image to view the full-size version of it.

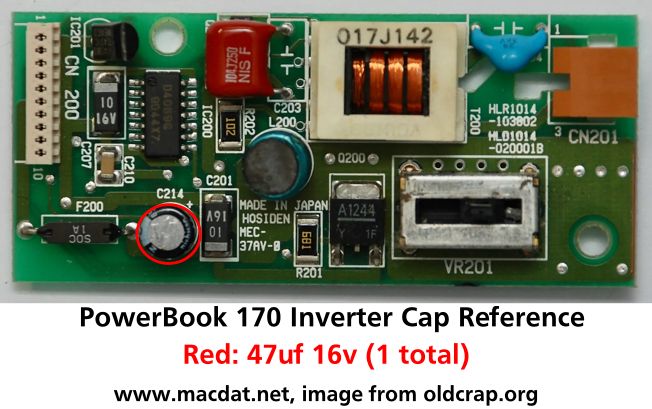

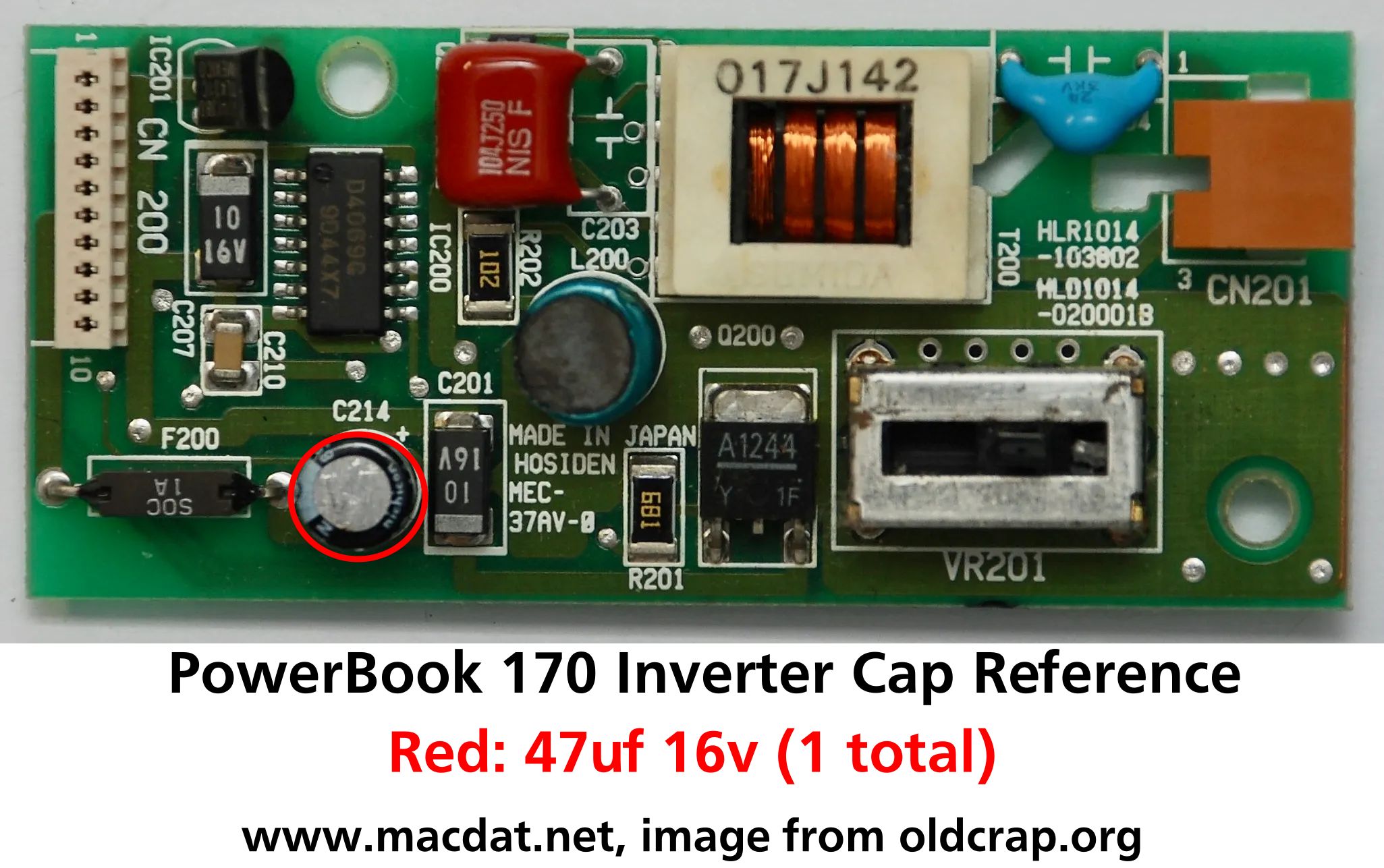

Inverter
Photo provided by oldcrap.org
Trackball
Photo provided by GRudolf94 on 68kmla.org
Page last updated (MM/DD/YYYY): 09/30/2024
Update Reason: formatting updated
