Capacitor Reference - PowerBook 165c
The PowerBook 165c has no electrolytic capacitors on the logic board. The display, inverter board, and trackball have some through hole electolytic caps on them. These don't always fail, but replacing them is not at all a bad idea as they can sometimes leak.
Reference Values
| Value | Count | Type |
|---|---|---|
| 10uf 63v | 7 | Low Profile Radial Electrolytic |
LCD Inverter Board
It's basically impossible to find a replacement for the 8.2uf 80v caps. Substituting 10uf 80v caps works fine.
| Value | Count | Type |
|---|---|---|
| 8.2uf 80v | 2 | Low Profile Radial Electrolytic |
| Unknown Value | 1 | Low Profile Radial Polymer - these very rarely fail |
Trackball
| Value | Count | Type |
|---|---|---|
| 10uf 16v | 1 | Radial Electrolytic |
Reference Images
Click on an image to view the full-size version of it.

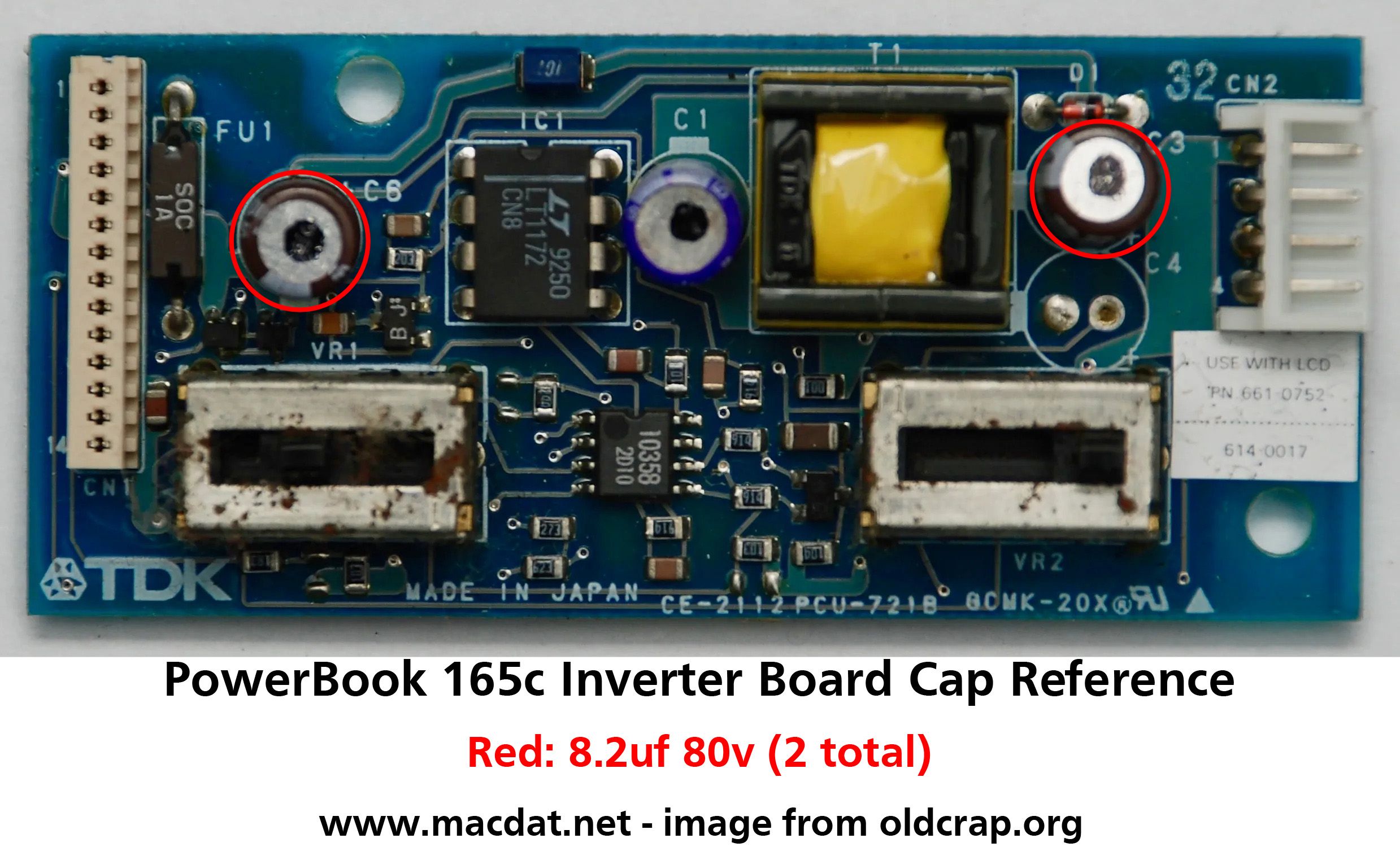

Inverter
Photo provided by oldcrap.org
Trackball
Photo provided by GRudolf64 on 68kmla.org
Page last updated (MM/DD/YYYY): 09/30/2024
Update Reason: formatting updated
