Capacitor Reference - PowerBook 1400c
I'd recommend recapping the 1400c at this point, if you're confident in your soldering abilities. They don't always need it yet, but they can occasionally leak or cause problems. I found one leaking capacitor while recapping my 1400c.
Reference Values
Logic Board
I'd recommend buying smaller diameter replacements for the 100uf caps to make it easier to solder the new ones in. There isn't much clearance with the original size.
| Value | Count | Type | Diameter | Height |
|---|---|---|---|---|
| 100uf 35v | 9 | Surface-Mount Electrolytic | 10mm | 10mm |
| 33uf 25v | 1 | Surface-Mount Electrolytic | -- | -- |
Display (Sharp LQ11S42)
There were two revisions of this display. One has two caps, the other has a single cap.
| Value | Count | Type | Diameter | Height | Notes |
|---|---|---|---|---|---|
| 47uf 6v | 1 | Surface-Mount Electrolytic | 5mm | 5mm | This cap is only present on the revision with two caps |
| 33uf 16v | 1 | Surface-Mount Electrolytic | 6mm | 5mm | Both revisions have this cap |
Backlight Inverter Board
| Value | Count | Type |
|---|---|---|
| 10uf 50v | 1 | Surface-Mount Electrolytic |
| 2.2uf 50v | 1 | Surface-Mount Electrolytic |
Reference Images
Click on an image below to view the full-size version.

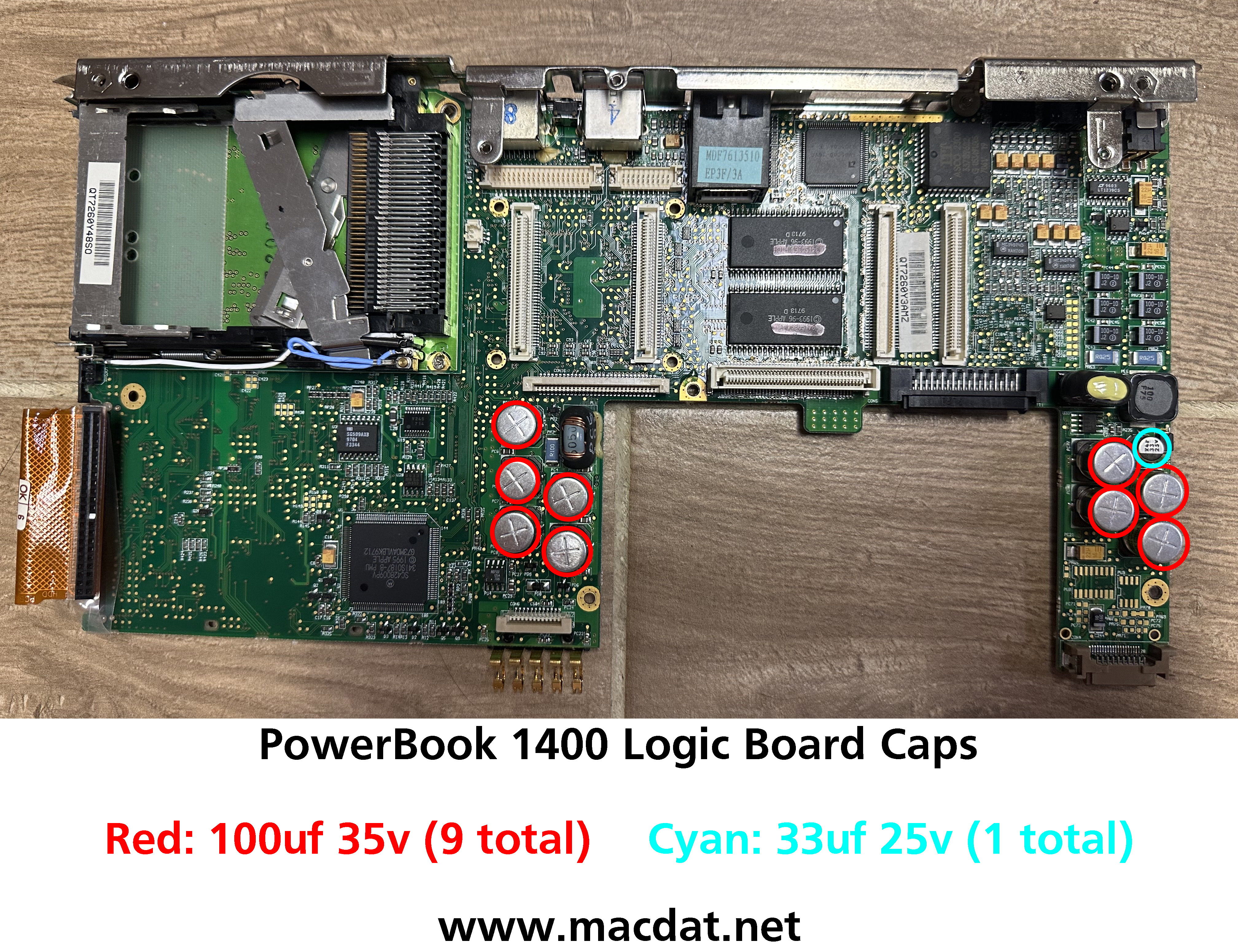

Logic Board

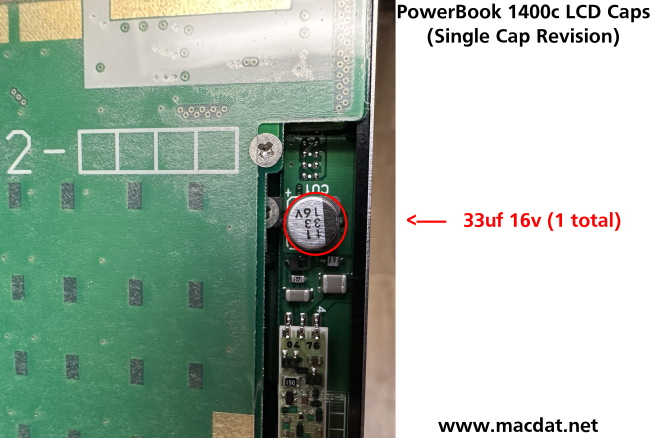

LCD (Single Cap)

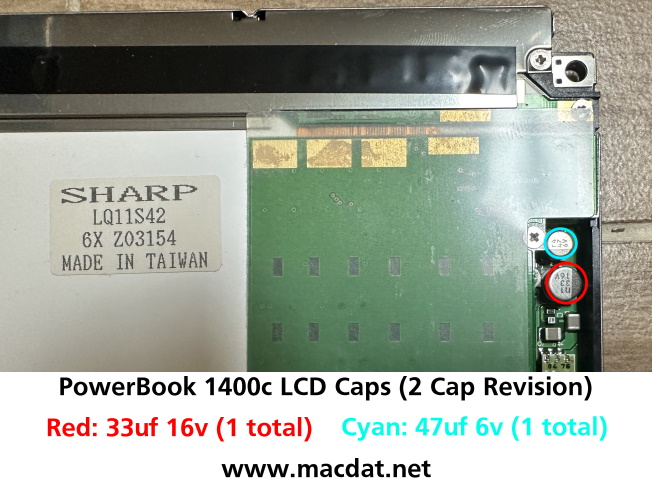

LCD (Two Caps)

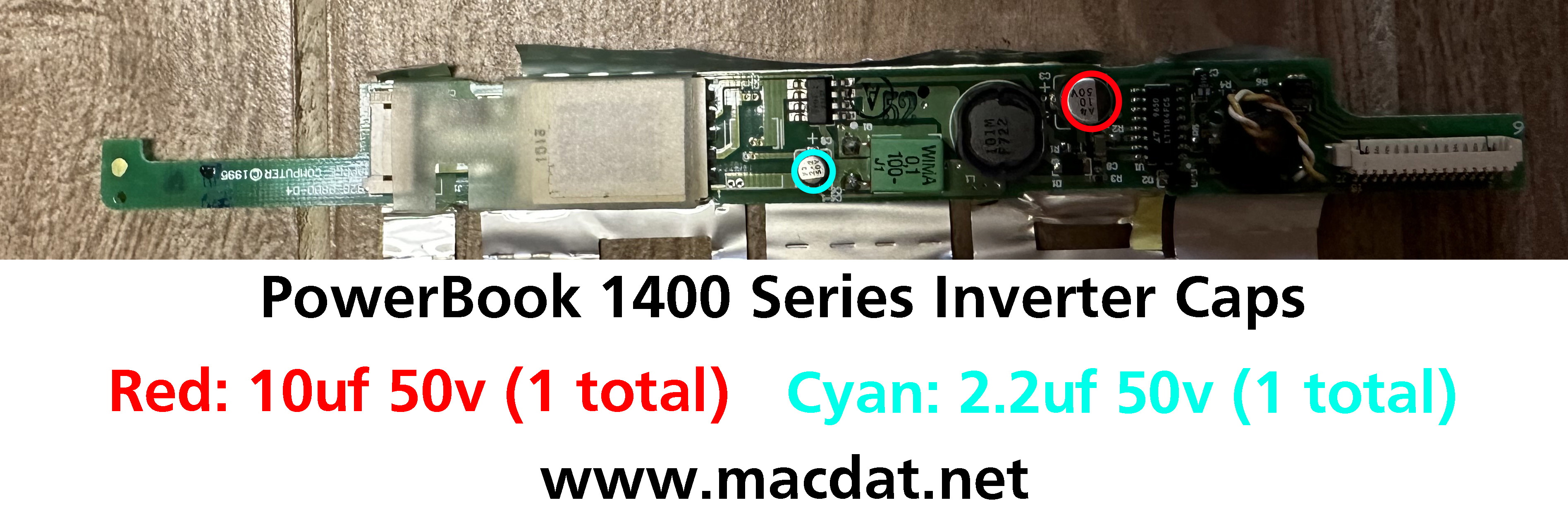

Inverter
Page last updated (MM/DD/YYYY): 09/27/2024
Update Reason: formatting updated
