Capacitor Reference - PowerBook 100 Series AC Adapters
There were a few different revisions of the PowerBook 100 Series AC Adapters (at least four of them) which all use varying caps. Some of them use ELNA LongLife series caps which ALWAYS leak and MUST be replaced. I'd highly recommend recapping any revision of these supplies as they are all known to be unreliable with original caps.
Reference Values
APS-20U (Apple P/Ns M5140 and M5651)
These supplies use ELNA caps and should be a recap on sight.
| Capacitor | Value | Type |
|---|---|---|
| C201 | 1200uf 16v | Radial Electrolytic |
| C302 | 180uf 16v | Radial Electrolytic |
| C207 | 82uf 16v | Radial Electrolytic |
| C108 | 47uf 400v | Radial Electrolytic |
| C105 | 47uf 50v | Radial Electrolytic |
| C151 | 33uf 35v | Radial Electrolytic |
| C252 | 1uf 50v | Radial Electrolytic |
APS-46U (Apple P/N M5652)
This is the 3A supply that is required for the PowerBook 165c and 180c. It does not have any ELNA caps inside.
| Capacitor | Value | Type |
|---|---|---|
| C209 | 2200uf 16v | Radial Electrolytic |
| C211 | 470uf 16v | Radial Electrolytic |
| C108 | 82uf 400v | Radial Electrolytic |
| C111 | 47uf 50v | Radial Electrolytic |
| ? | 10uf 16v | Low-Profile Surface Mount Electrolytic |
Apple Low Power AC Adapter (ADP-17AB)
Missing
Reference Images

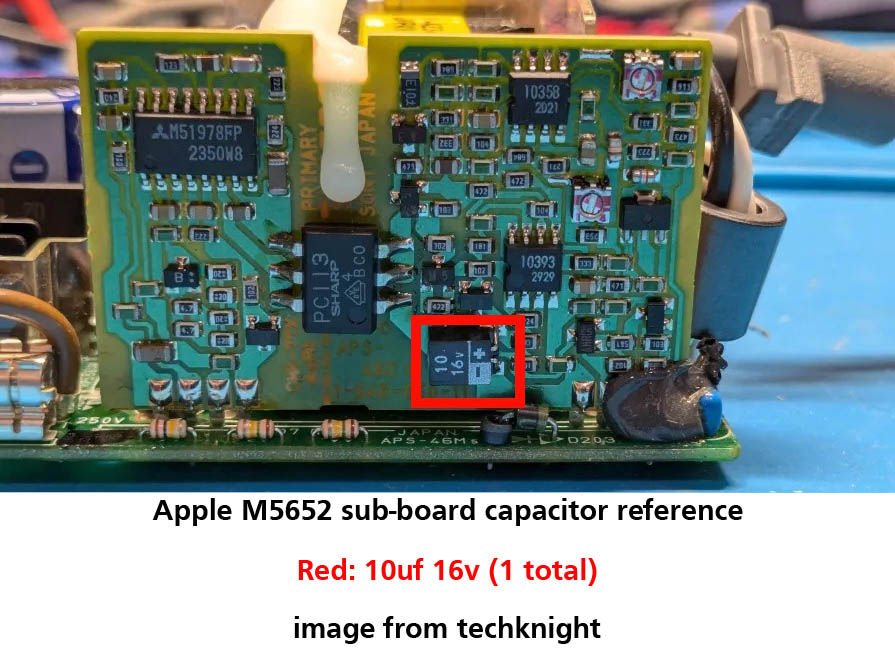

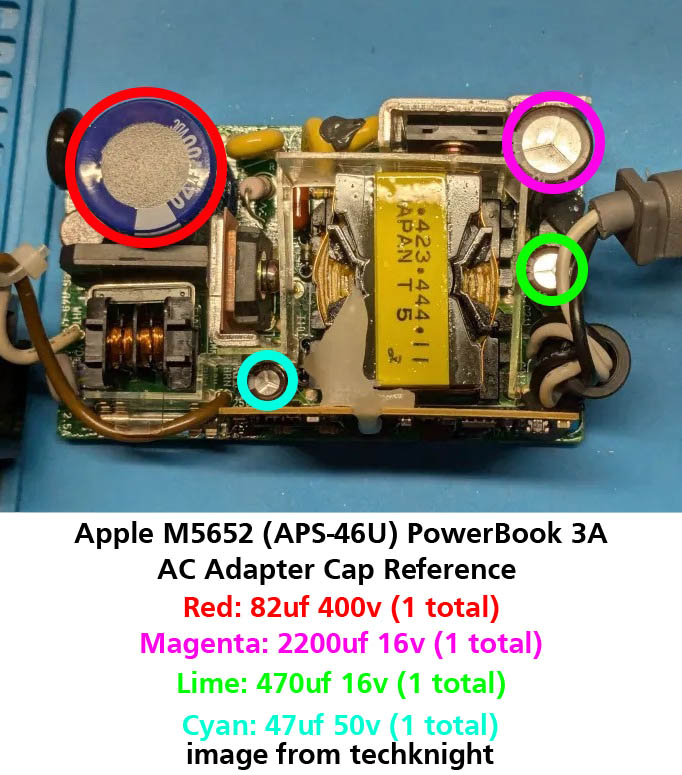

APS-46U (Apple P/N M5652)
Page last updated (MM/DD/YYYY): 12/20/2024
Update Reason: updated m5652 reference
