Capacitor Reference - Performa 6300

Info may or may not match other 6300 series systems - I need to get info on that, confirmed 100% for the Performa 6300.

Logic Board

• 3x 100uf 6v
• 7x 47uf 16v
• 1x 22uf 25v

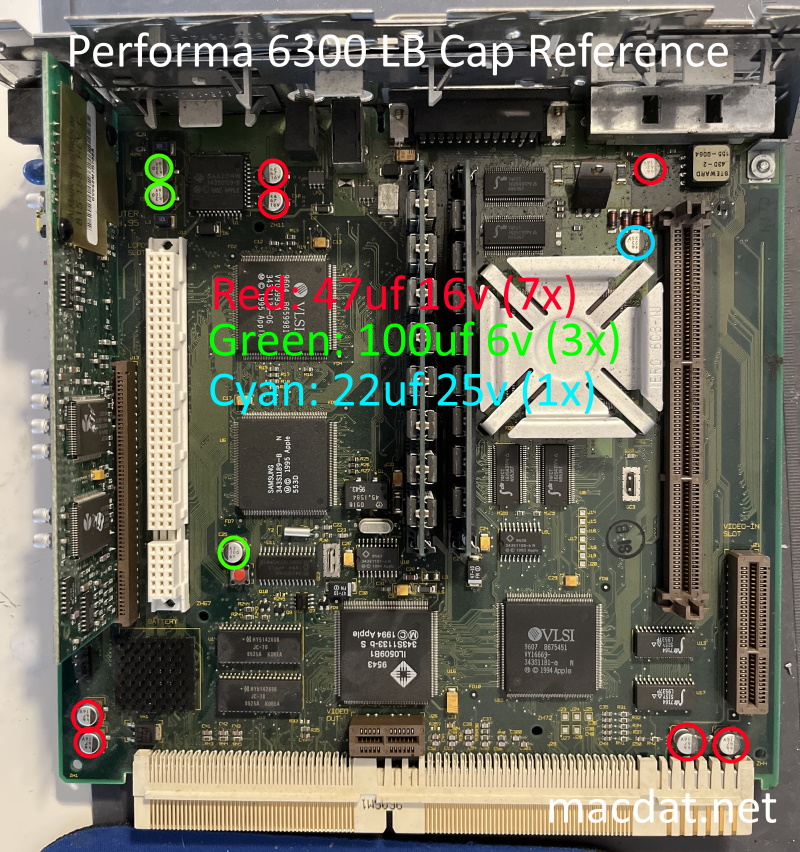

Reference Image - Provided by mloret from 68kMLA.org

---

Page last updated (MM/DD/YYYY): 05/17/2024
Update Reason: links updated
