Capacitor Reference - Macintosh IIvx

Logic Board

• 2x 220uf 16v (Axial)
• 6x 47uf 16v (Surface-Mount)

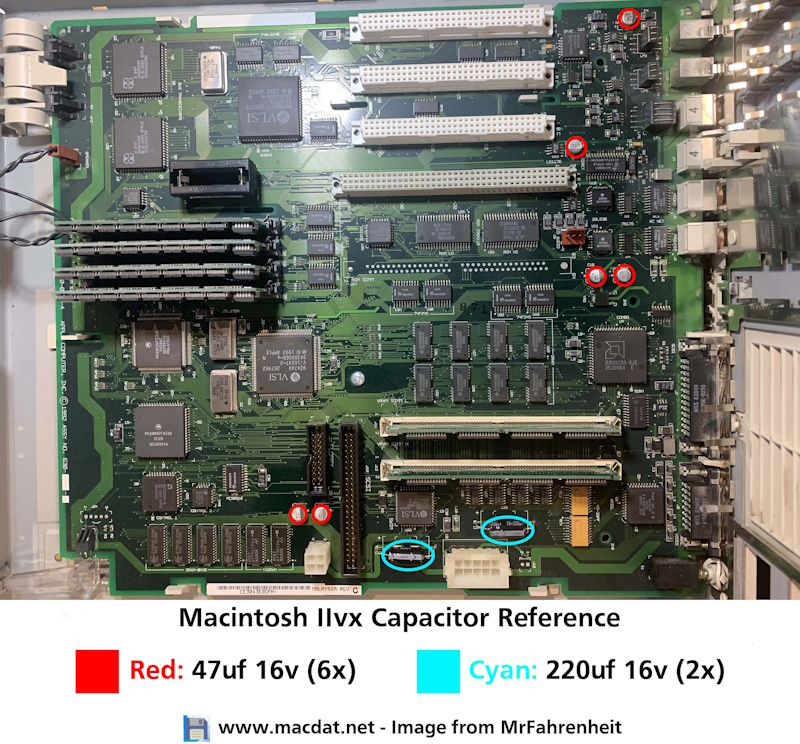

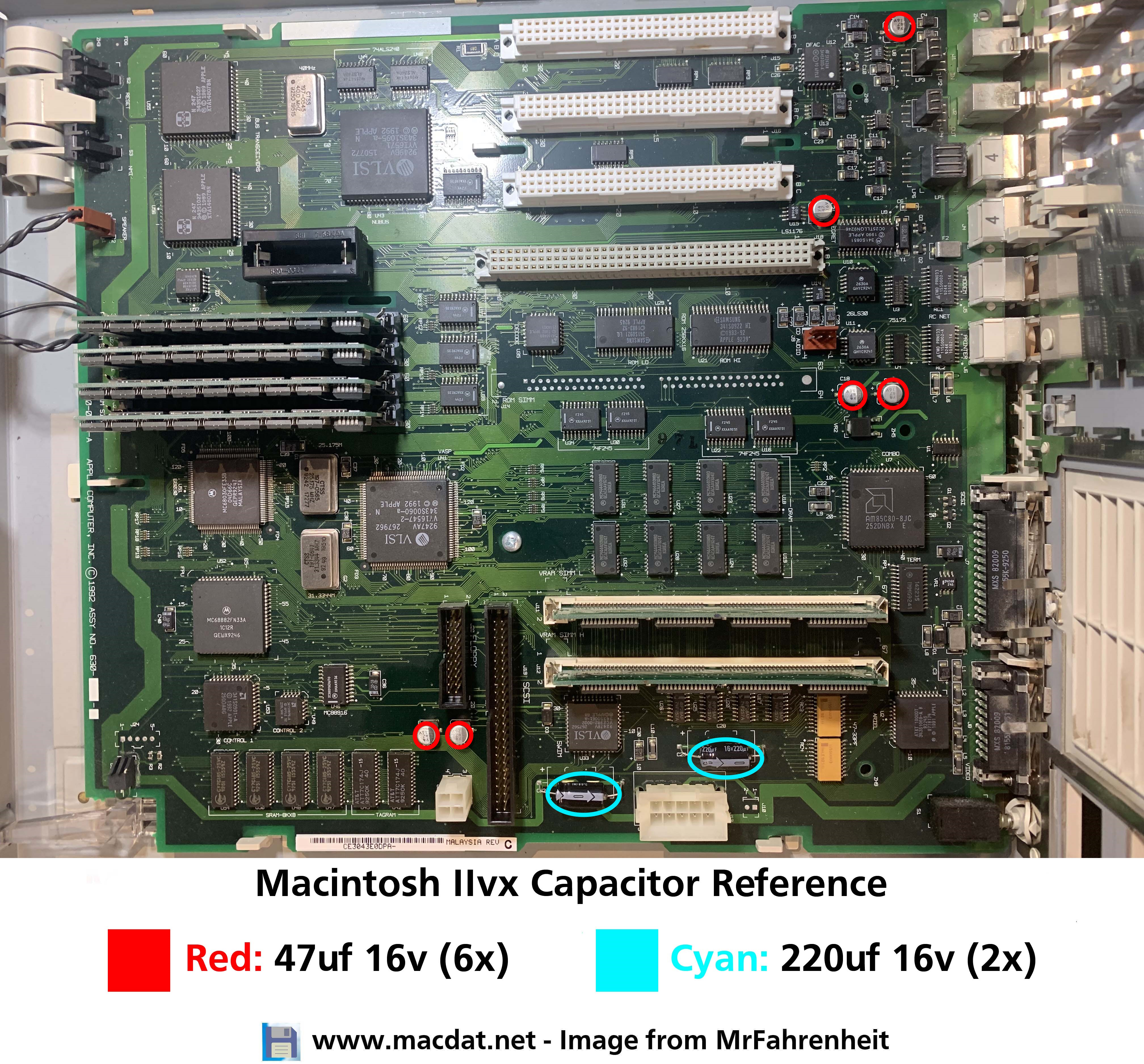

Reference Image

Click on the image to view the full-resolution version.

---

Page last updated (MM/DD/YYYY): 05/16/2024
Update Reason: links updated
