Capacitor Reference - Macintosh IIcx
The logic board in the IIcx must be recapped.
Note: The Axial caps may actually be 25v rated on some boards. At least, that's the case on the IIci, and the two are pretty similar. See the IIci page for more info.
Logic Board
| Value | Count | Type |
|---|---|---|
| 470uf 16v | 3 | Axial Electrolytic |
| 220uf 16v | 1 | Axial Electrolytic |
| 47uf 16v | 9 | Surface-Mount Electrolytic |
| 10uf 16v | 2 | Surface-Mount Electrolytic |

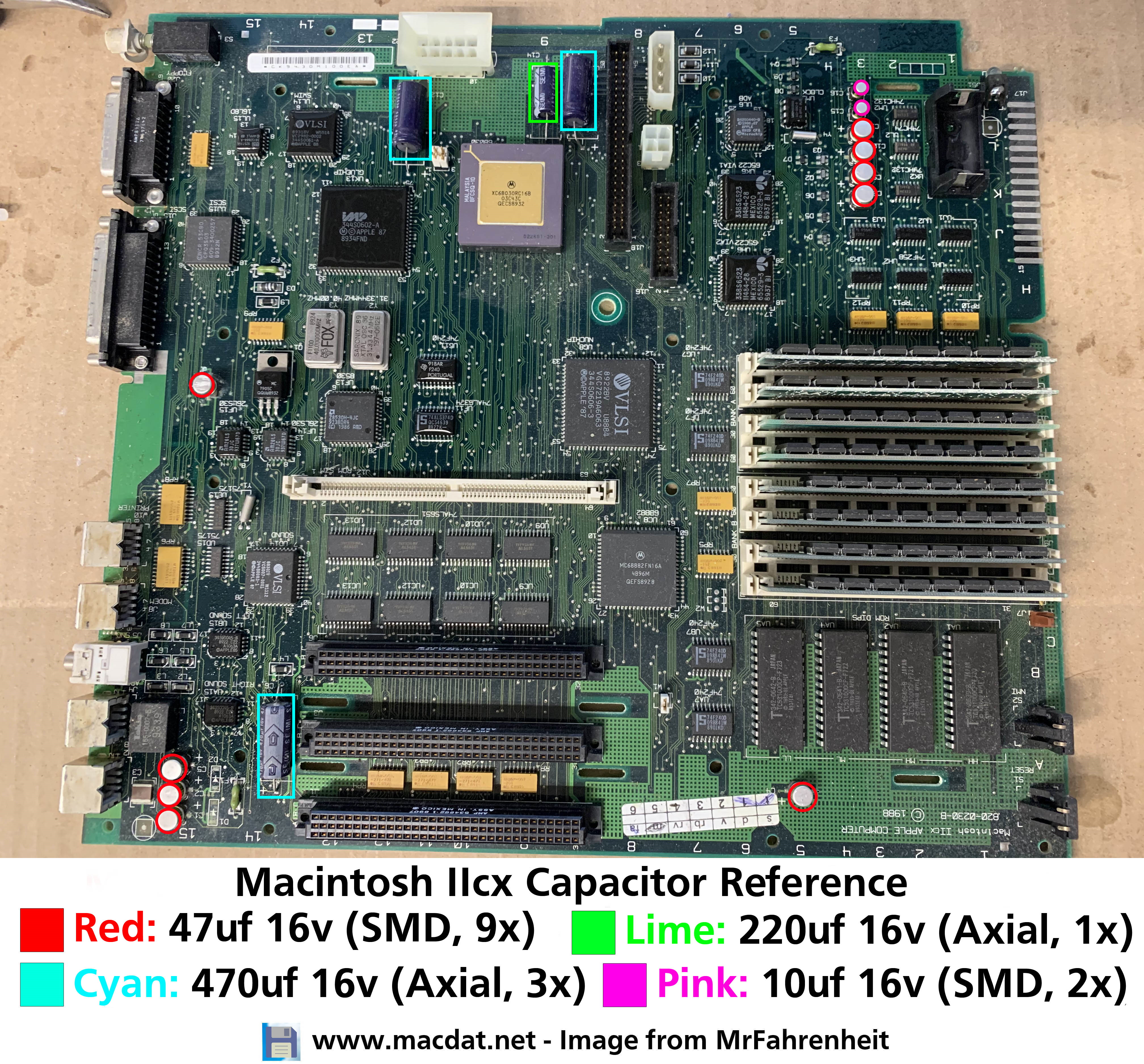

Reference Image
Click image below to view the full-resolution version.
Page last updated (MM/DD/YYYY): 09/26/2024
Update Reason: formatting updated
