Capacitor Reference - Macintosh IIci

Note on the Axial caps: Info I have points to these caps having a rated voltage of 25v. However, other sources I've seen online say that they're 16v rated. It could be that these other sources are wrong, or that some boards had 25v caps and others had 16v. Either way, it doesn't really matter. Replacing caps with those of a higher rated voltage doesn't affect function, so if your board has 16v caps, replacing with 25v caps is completely fine. Just make sure the capacitance you order is correct!

Logic Board

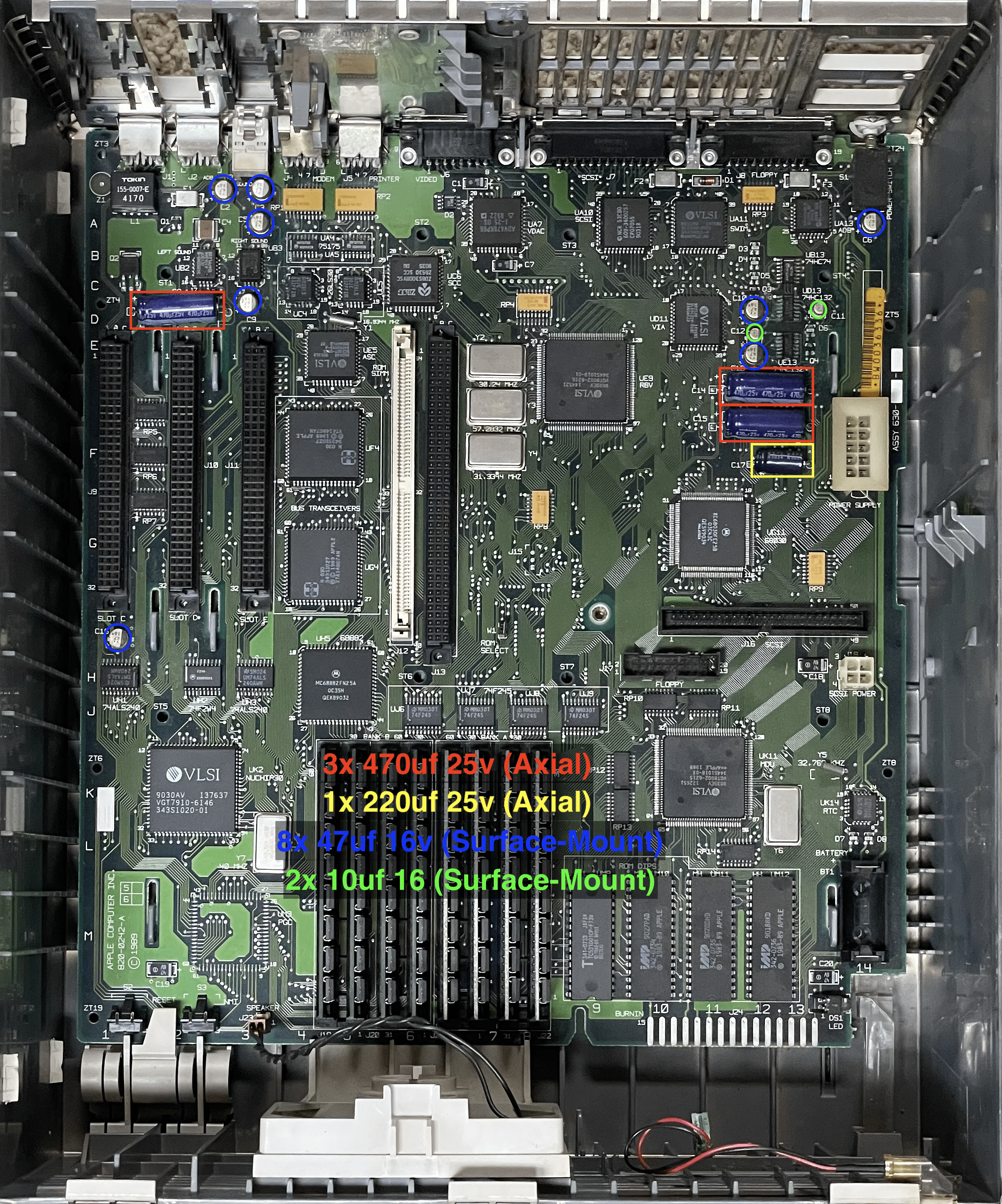

Reference Image - Logic Board

Click on the image below to view the full-size version of it.

Provided by @MrTechGadget on tinkerdifferent.com - thank you!

reference photo

Page last updated (MM/DD/YYYY): 05/16/2024
Update Reason: links updated
