Capacitor Reference - Macintosh II
There were two logic board revisions of the Macintosh II. Rev. A used axial capacitors, which are fairly robust and don't often fail. The Rev. B board switched to surface-mount electrolytic caps, which always fail and leak. Any Rev. B Mac II should be recapped.

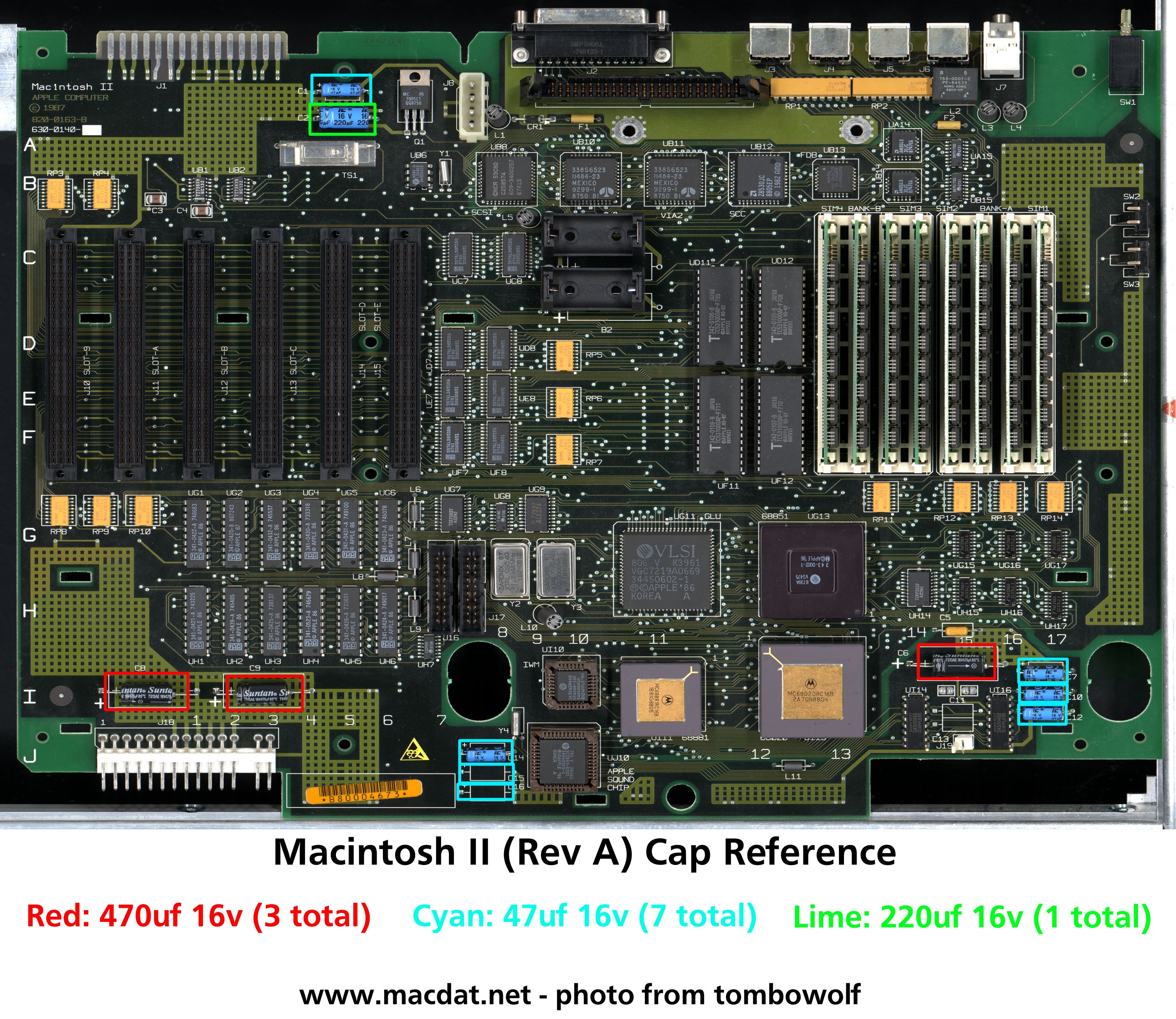

Logic Board (Rev A)
| Value | Count | Type |
|---|---|---|
| 470uf 16v | 3 | Axial Electrolytic |
| 220uf 16v | 1 | Axial Electrolytic |
| 47uf 16v | 7 | Axial Electrolytic |
Logic Board (Rev B)
| Value | Count | Type |
|---|---|---|
| 470uf 16v | 3 | Axial Electrolytic |
| 220uf 16v | 1 | Axial Electrolytic |
| 47uf 16v | 13 | Surface-Mount Electrolytic |
| 10uf 16v | 1 | Axial Electrolytic - can be replaced with SMD as pads for an SMD cap are available |
Reference Image
Click image below to view the full-resolution version.

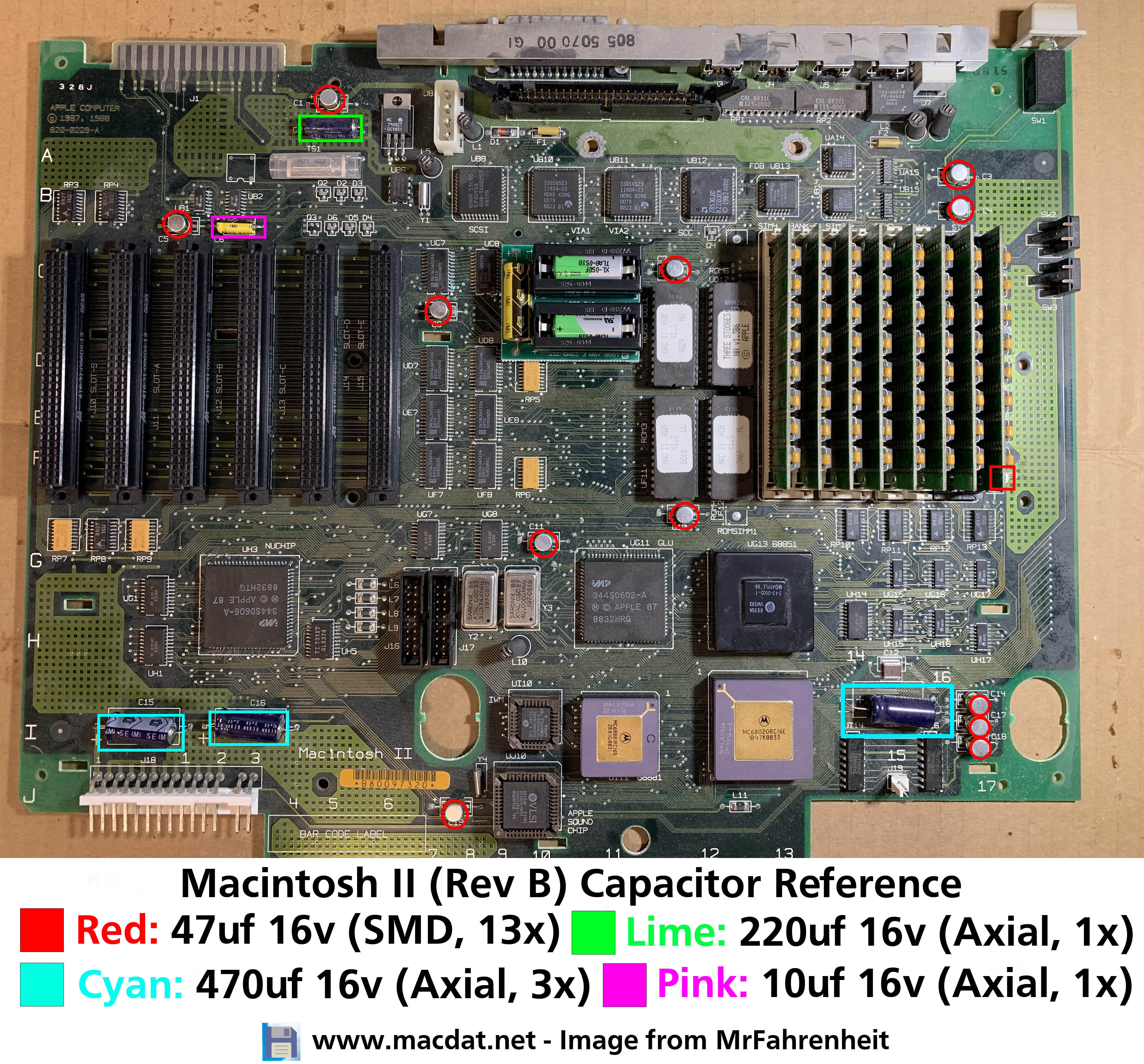

This is the REV B version. I do not have a photo of the REV A board at this time.
Page last updated (MM/DD/YYYY): 09/26/2024
Update Reason: formatting updated
