Capacitor Reference - Macintosh SE/30 (Logic Board)

Any SE/30 should be a recap on sight.

Note: If replacing the surface-mount capacitors with tantalum caps, purchase 25V rated caps instead of 16V for the 47uf caps! See this thread on 68kMLA for more info on why.

Logic Board

Value Count Type
470uf 16v 1 Axial Electrolytic
220uf 16v 1 Axial Electrolytic
47uf 16v 10 Surface-Mount Electrolytic
1uf 50v 1 Surface-Mount Electrolytic

Reference Image

Provided by Berenod on 68kMLA.org

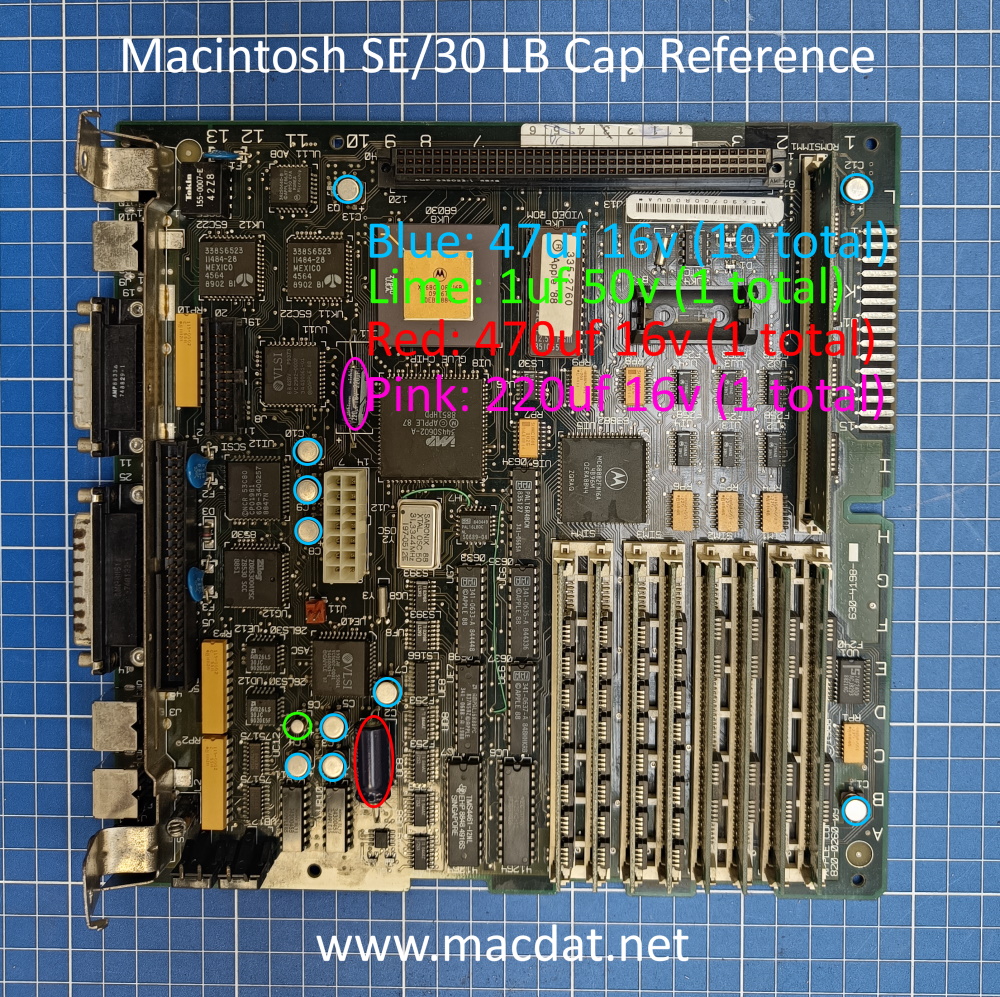

logic board reference photo
Page last updated (MM/DD/YYYY): 09/23/2024
Update Reason: formatting updated
