Capacitor Reference - Macintosh SE/SE FDHD/SE SuperDrive

The original Macintosh SE uses all axial capacitors instead of the surface mount caps in later Macs. These axial caps rarely fail, but they're getting old enough that it's still good to replace them eventually. Here's the reference info should you need it.

Logic Board

Value Count Type
33uf 16v 10 Axial Electrolytic
1uf 50v 1 Axial Electrolytic

Reference Image

Provided by Durosity on 68kmla.org

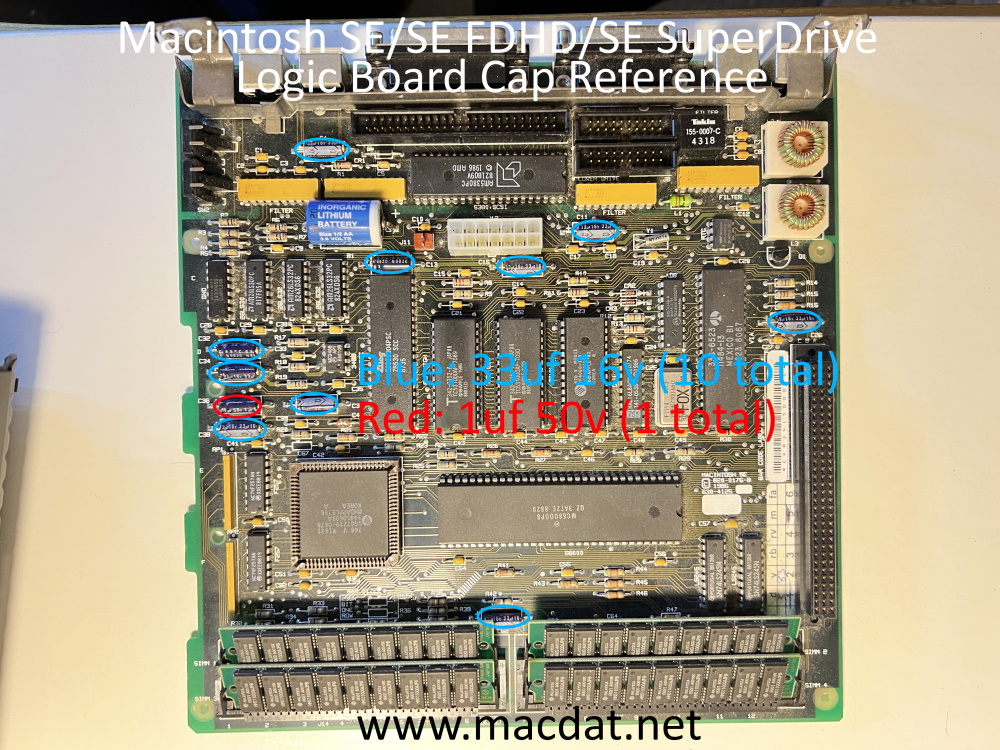

logic board reference photo
Page last updated (MM/DD/YYYY): 09/23/2024
Update Reason: formatting updated
