Capacitor Reference - Macintosh Classic II
The Macintosh Classic II should be a recap on sight.
Note: If replacing the surface-mount capacitors with tantalum caps, purchase 25V rated caps instead of 16V for the 47uf caps! See this thread on 68kMLA for more info on why.
Logic Board (Rev A, 13 caps)
| Value | Count | Type |
|---|---|---|
| 47uf 16v | 3 | Surface-Mount Electrolytic |
| 10uf 16v | 8 | Surface-Mount Electrolytic |
| 1uf 50v | 2 | Surface-Mount Electrolytic |
Logic Board (Rev. B, 17 caps)
| Value | Count | Type |
|---|---|---|
| 47uf 16v | 3 | Surface-Mount Electrolytic |
| 10uf 16v | 12 | Surface-Mount Electrolytic |
| 1uf 50v | 2 | Surface-Mount Electrolytic |
Reference Images
Click images below to view the full-resolution version.

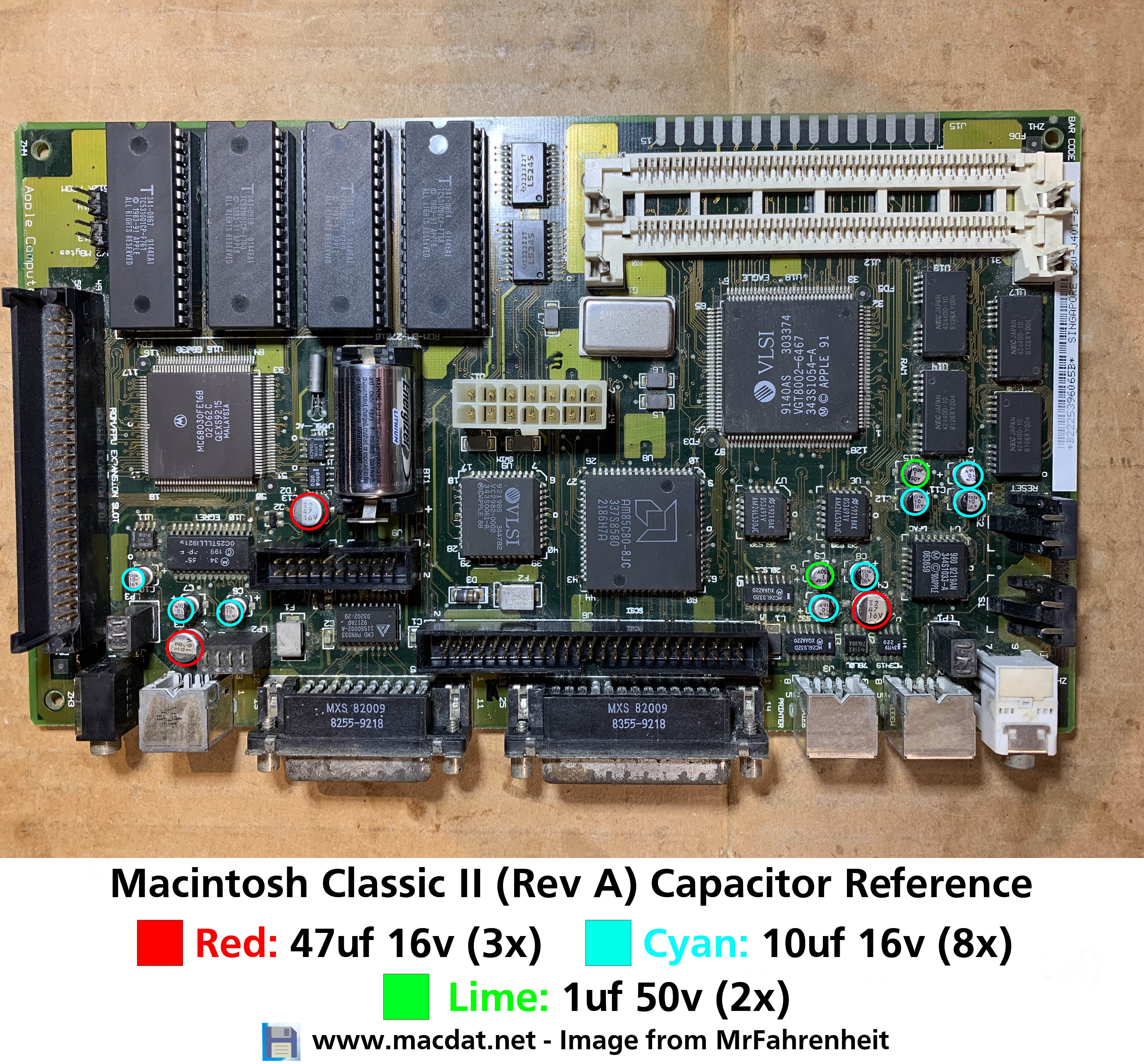

REV A

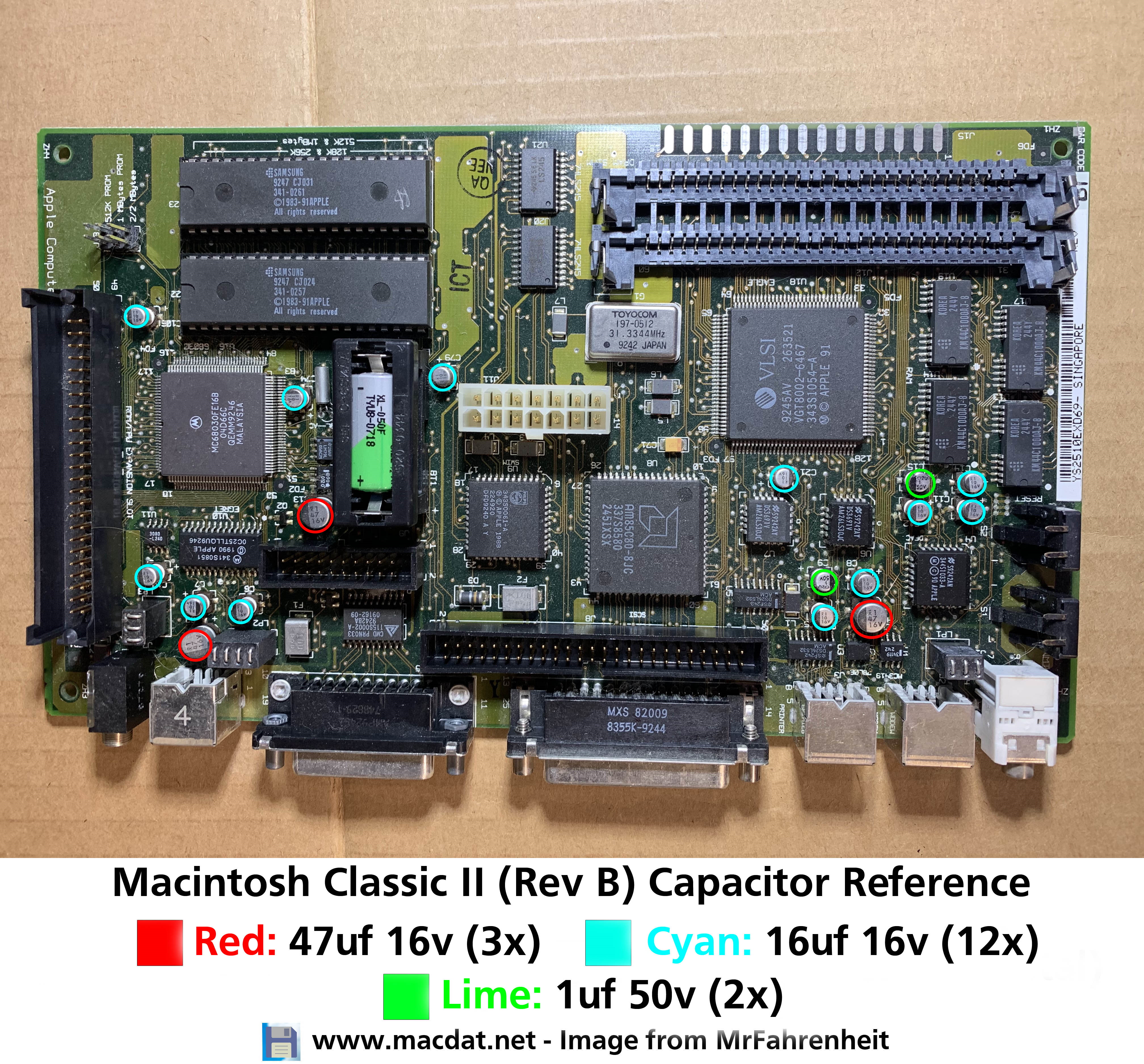

REV B
