Macintosh Quadra 950
The Macintosh Quadra 950 is a high-end 68040-powered desktop tower that was released in May 1992.
Specifications
According to everymac.com.
| Spec | Details |
|---|---|
| Release Date | May 1992 |
| Discontinuation Date | October 1995 |
| Processor | Motorola 68040 @33MHz |
| RAM | 16x 30-pin SIMM Slots - 8 or 16MB Standard - 256MB Maximum |
| Hard Disk | 3.5" SCSI - 230MB, 400MB, or 1.0GB Standard |
| Graphics | 1 or 2MB VRAM |
| Audio | Internal Speaker |
| Internal Drives | - Auto Inject 3.5" 1.44MB Floppy Drive - Caddy-Loading 2X CD-ROM (Optional) |
| Expansion | - 5x NuBus - 1x 040 PDS |
| Networking | AAUI Ethernet |
| Other I/O | - 1x ADB - 2x Serial - 1x DB25 SCSI - 1x DB15 Video Out - 1x Line Out - 1x Mic In - 2x RCA Jacks (also for audio?) |
| PRAM Battery | 1/2AA Lithium |
| Original Mac OS | System 7.0.1 |
| Maximum Mac OS | Mac OS 8.1 |
Upgrades
SSD Upgrade
Check our page on SCSI SSD replacements for more info.
Resources
 Service Manual |
|---|
Common Faults & Maintenance
PRAM Battery Leaks
The 1/2AA Lithium PRAM battery in the 950 is very prone to leaking and should be removed. It does not need to be replaced on this model for the computer to operate.
Capacitors
The 950's logic board uses all solid-state capacitors, so you do not need to replace any if yours is working. The power supply may still need recapping.
Gallery

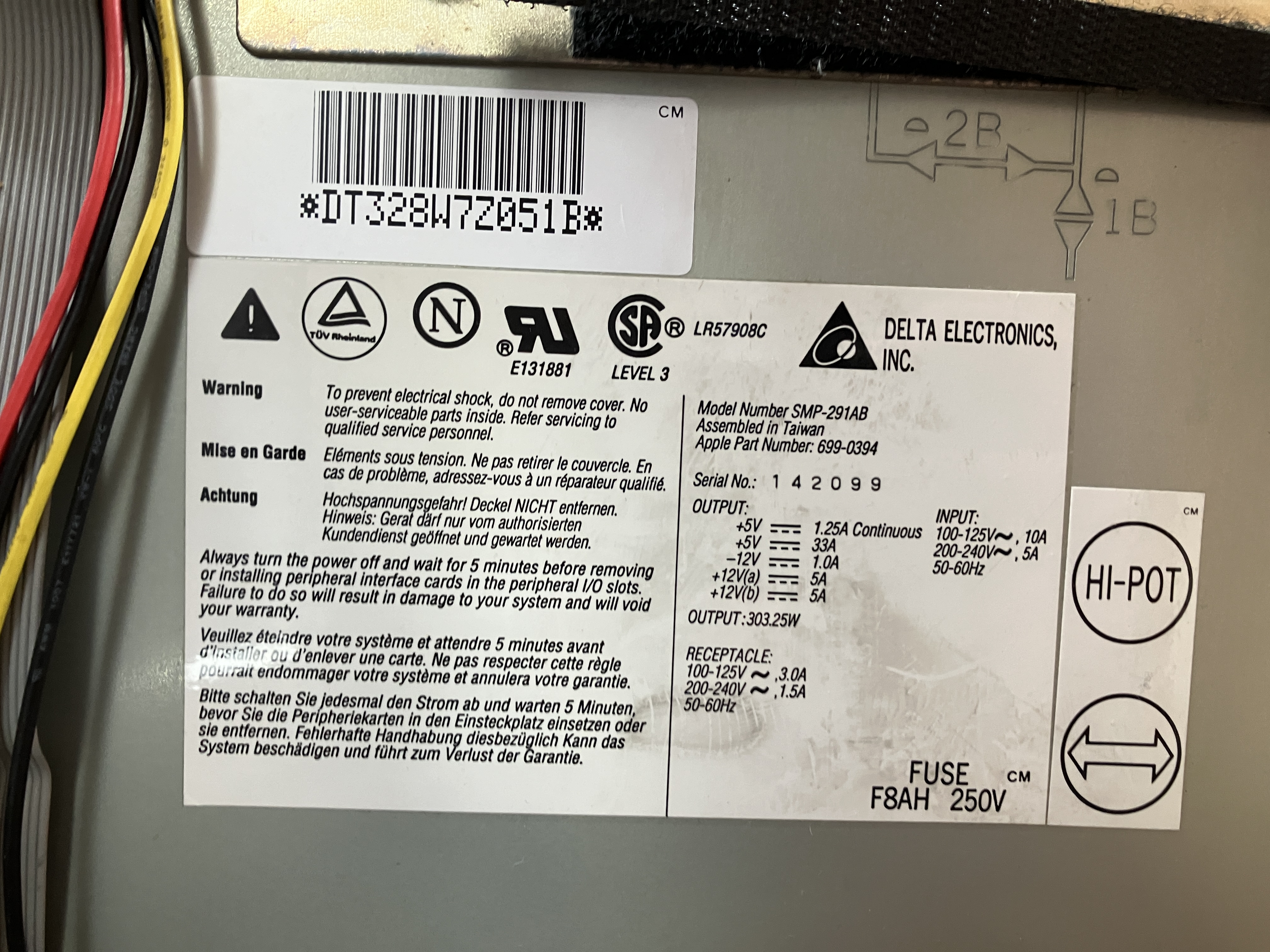

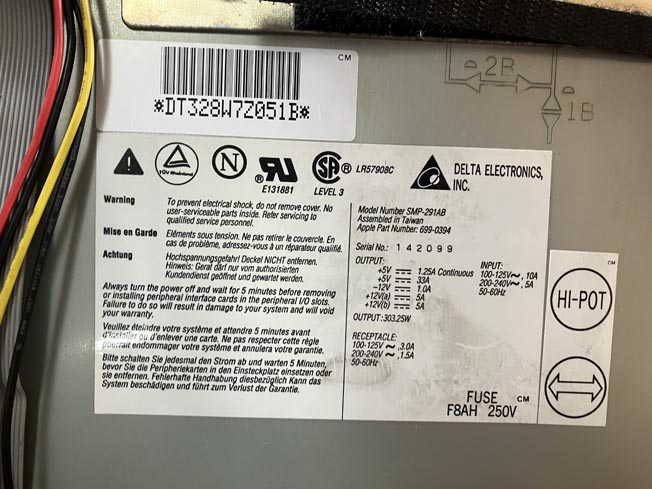

Here's a photo of the 950's PSU label, courtesy of cheesestraws on 68kmla.org.
Page last updated (MM/DD/YYYY): 09/19/2024
Update Reason: page rewritten
