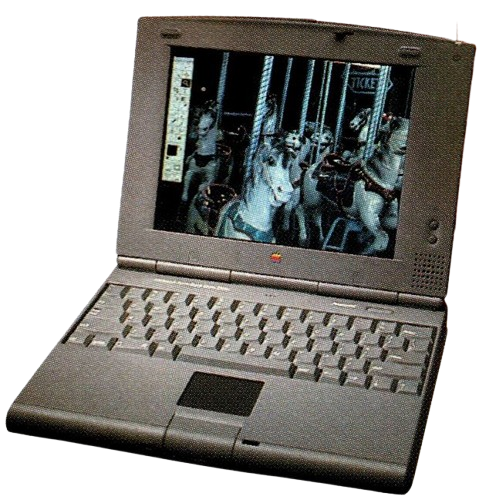

PowerBook Duo 2300c
The PowerBook Duo 2300c is a PowerPC 603e-based subnotebook that was released in August 1995. It was the only Duo model to use PowerPC processors. Along with all other Duo models, the 2300c supports a variety of docking station solutions to add functionality - everything from Micro Docks which added single ports, to the full-size DuoDock, which turned the 2300c into a full desktop computer setup.
Specifications
| Spec | Details |
|---|---|
| Release Date | August 1995 |
| Discontinuation Date | February 1997 |
| Processor | PowerPC 603e @100MHz - No L2 Cache - 33MHz System Bus |
| RAM | PowerBook Duo Proprietary Standard: 8 or 20MB Maximum: 56MB |
| Hard Disk | 2.5" IDE Standard: 750MB or 1.1GB |
| Display | 9.5" Active Matrix Color LCD @640x480 |
| GPU | Unknown VRAM: Unknown |
| Main Battery | NiMH (Type III) |
| PRAM Battery | Proprietary Lithium |
| Power Supply | RCA-style Jack - Apple M2693 AC Adapter |
| Media Drives | None, external floppy drive supported with docking stations |
| PC Cards | None |
| Networking | Internal Modem (Optional) |
| Other I/O | - 1x Serial - 1x Duo Dock Connector |
| Pointing Device | Trackpad |
| Minimum Mac OS | System Software 7.5.2 |
| Maximum Mac OS | Mac OS 9.1 |
Upgrades
SSD Upgrade
See our page on IDE SSDs for more info.
Resources
 User Manual |
 Service Manual |
Capacitor Reference |
|---|
Common Faults & Maintenance
Capacitor Failure
The Duo motherboard has several surface-mount electrolytic capacitors on it that fail and leak corrosive fluid due to their age. As the 2300c is newer than other Duos, these caps aren't always bad, but I'd still highly recommend a recap.
If you're using the original Duo AC adapter, it also needs attention - it has a RIFA filter capacitor inside that is prone to exploding, which releases nasty smelling smoke into your room.
Brittle Plastic
The Duo's plastics have gotten brittle over time, which leads to the weak display hinge mounts crumbling and failing. The proper fix for this is to replace them with 3D-printed replacements. You can find the STL file for these here.
Keyboard Failure
The Duo keyboards, besides being terrible to type on, now develop bad keys very often. This is caused by the membrane contacts oxidizing with time. To fix this, you can paint over the corroded traces with a conductive pen to increase the electrical contact. While you have the keyboard apart, you may also wish to use a plastic-safe lubricant to try to relieve some of the stiffness of the keys.
Other Issues
As with any laptop this old, you're pretty likely to run into dead or missing hard drives. The 2300c's display can also develop vinegar syndrome.
The Duo's main battery is prone to leaking. The PRAM battery is not, but the Duos can sometimes act up when its dead. If only the power button on the rear of the laptop works, this is a likely cause.
Page last updated (MM/DD/YYYY): 03/11/2025
Update Reason: page created
