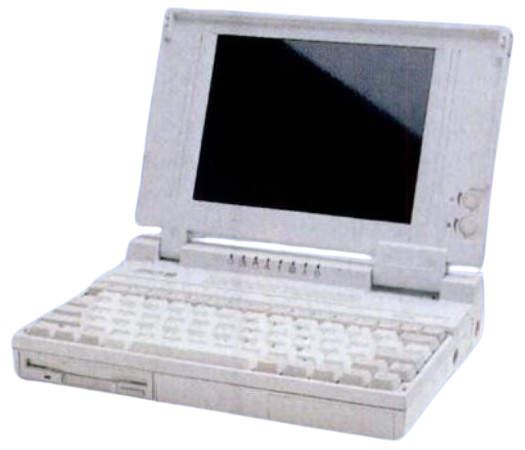

Zenith ZDS-620n
The ZDS-620n is a 386SX-based laptop that was released by Zenith Data Systems in around 1992.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 386SX @20MHz |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: 2MB Maximum: 6MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: 60MB |
| Display Options | 8.5" Passive Matrix Grayscale (32 shades) @640x480 |
| Graphics Chipset | Unknown VRAM: Unknown |
| Audio | PC Speaker |
| Main Battery | NiCad |
| CMOS Battery | Unknown |
| Power Supply | Proprietary 5-pin DIN - Zenith Data Systems AC-1 (P/N 239-0430-00) |
| Disk Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | None |
| Networking | Modem |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x Keyboard/mouse port |
| BIOS | Unknown |
| Pointing Device | None |
