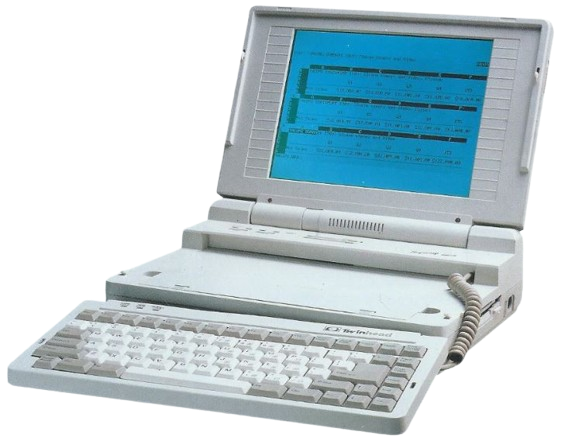

Twinhead Superlap 386SX
The Supernote 386SX is a 386-based luggable/laptop that was released in 1990. It was Twinhead's first laptop.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 386SX @16MHz - 387 Coprocessor Support |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: 1MB Maximum: 4MB |
| Storage | 3.5" IDE Requires Adapter: Unknown Standard: 20 or 40MB |
| Display Options | Passive Matrix Grayscale (32 shades) LCD @640x480 |
| Graphics Chipset | Cirrus Logic GD610/GD620 VRAM: Unknown |
| Audio | PC Speaker |
| Main Battery | NiCad |
| CMOS Battery | Soldered ER3 Lithium |
| Power Supply | Barrel Jack |
| Media Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | None |
| Networking | Modem |
| Other I/O | - 1x Parallel - 2x Serial - 1x VGA Out - 1x PS/2 - 1x External FDD Connector - 1x Expansion Connector |
| BIOS | Phoenix |
| Pointing Device | None |
Page last updated (MM/DD/YYYY): 03/24/2025
Update Reason: page created
