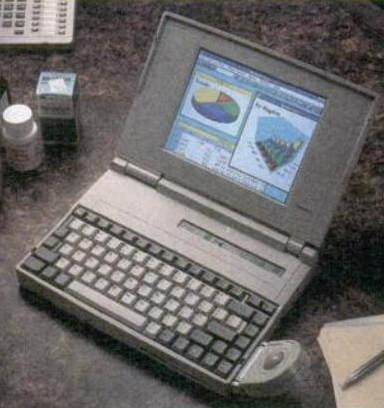

Toshiba T4500 and T4500C
The Toshiba T4500 and T4500C are 486-based laptops that were released in November 1992.
Specifications
| Spec | T4500 | T4500C |
|---|---|---|
| Release Date | November 1992 | |
| CPU | CPU Type: Unknown Intel 486SX @20MHz | |
| Chipset | Unknown | |
| RAM | Type: Proprietary Standard: 4MB Maximum: 20MB | |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 80, 120, or 200MB | |
| Display Options | Passive Matrix Grayscale (64 shades) LCD @640x480 | 8.4" Active Matrix Color LCD @640x480 |
| Graphics Chipset | Western Digital WD90C26 VRAM: 512KB | |
| Audio | PC Speaker | |
| Main Battery | NiCad (9.6V, 2400mAH) | NiMH (9.6V, 3000mAH) |
| CMOS Battery | - Lithium CMOS Battery - NiMH Reserve Battery | |
| Power Supply | Unknown | |
| Media Drives | 3.5" 1.44MB Floppy Drive | |
| PC Cards | 1x PCMCIA Slot | |
| Networking | None | |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 2x PS/2 - 1x Dock Connector - 1x QuickPort for external trackball | |
| BIOS | Toshiba | |
| Pointing Device | None | |
Resources
 Service Manual |
|---|
