Toshiba T3200SXC

Toshiba T3200SXC

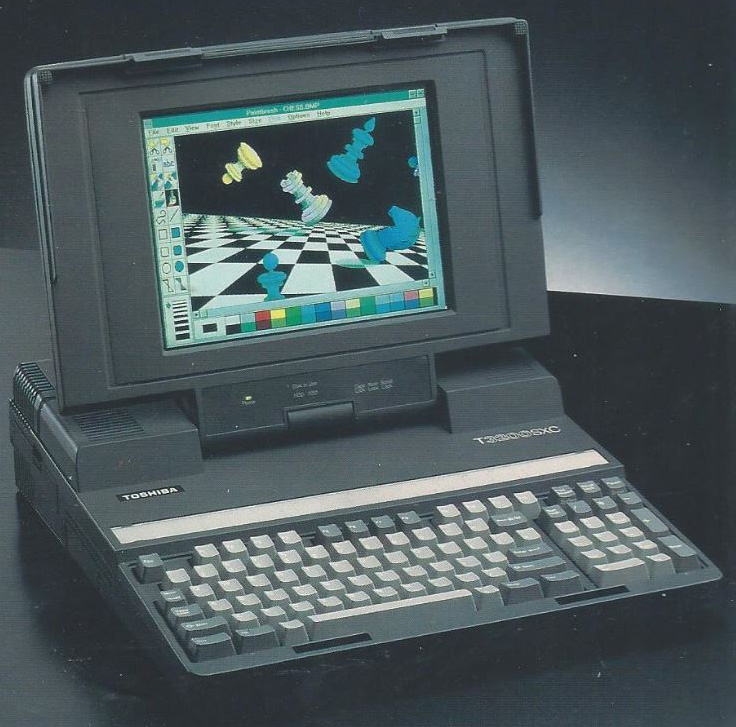

The Satellite Pro T3200SXC is a 386-based laptop that was released in 1991. It was the first computer released with an active matrix (TFT) color display.


Specifications

Spec Details
CPU CPU Type: Unknown
Intel 386SX @20MHz
- Optional 387 Coprocessor
Chipset Unknown
RAM Type: Unknown
Standard: 1MB
Maximum: 13MB
Storage 3.5" IDE
Requires Adapter: Unknown
Standard: 40 or 120MB
Display Options 10" Active Matrix Color @640x480 (Sharp LQ10D013)
Graphics Chipset Western Digital WD90C21
VRAM: 256KB
Audio PC Speaker
Main Battery AC Power Only
CMOS Battery Lithium
Power Supply Internal, standard 3-prong connector
Media Drives 3.5" 1.44MB Floppy Drive
PC Cards - 1x 16-bit ISA
- 1x 8-bit ISA
Networking Modem (Optional)
Other I/O - 1x Parallel
- 2x Serial
- 1x VGA Out
- 1x Keyboard Port
BIOS Toshib
Pointing Device None

Resources


Service Manual

Common Faults & Maintenance

Capacitor Leaks

The early Sharp LCD panel in the T3200SXC suffers from major capacitor problems and MUST be recapped at this point, regardless of operating condition. It has reached the point with these that many LCD panels are not working even after recapping due to corrosion damage.



Page last updated (MM/DD/YYYY): 03/17/2025
Update Reason: image replaced
