Toshiba T3200SX

Toshiba T3200SX

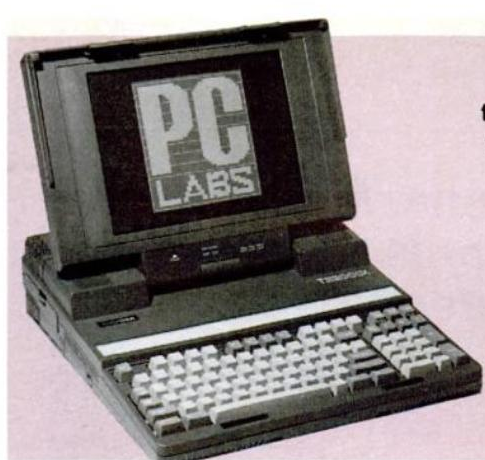

The Toshiba T3200SX is a 386-based luggable/laptop that was released in September 1989.


Specifications

Spec Details
CPU CPU Type:
Intel 386SX @16MHz
- 387 Coprocessor Standard
Chipset Unknown
RAM Type: 6x 30-pin SIMM slots (semi-proprietary)
Standard: 1MB
Maximum: 13MB
Storage 3.5" IDE (BIOS locked to factory drives)
Requires Adapter: Yes, standard cable
Standard: 40 or 80MB
Display Options Gas Plasma Display (16 shades) @640x480
Graphics Chipset VGA
VRAM:
Audio PC Speaker
Main Battery None
CMOS Battery Lithium
Power Supply Internal
Media Drives 3.5" 1.44MB Floppy Drive
PC Cards - 1x 16-bit ISA Slot
- 1x 8-bit half-size ISA or Toshiba 16-bit slot
Networking Modem (Optional)
Other I/O - 1x Parallel
- 2x Serial
- 1x VGA Out
- 1x Keyboard Connector
BIOS Toshiba
Pointing Device None

Resources


Service Manual


Page last updated (MM/DD/YYYY): 03/07/2025
Update Reason: page created
