Toshiba T3100SX

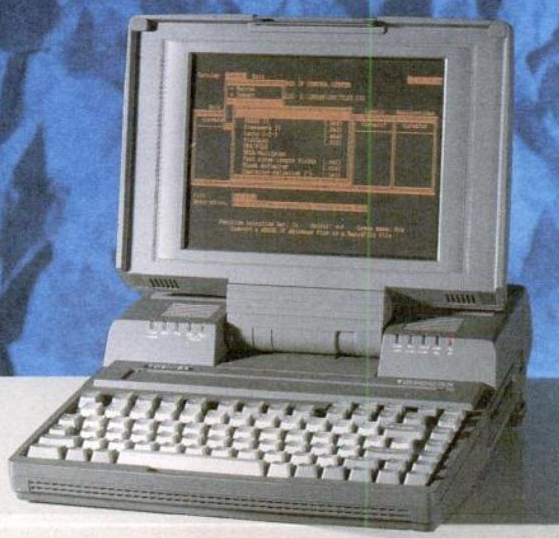

The Toshiba T3100SX is a 386-based luggable/laptop that was released in November 1989. It shares a similar design to previous T3100 models, but uses a 386 processor, has VGA graphics, and is battery powered.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 386SX @16MHz - Supports 387 Coprocessor |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: 1MB Maximum: 13MB |
| Storage | 3.5" IDE Requires Adapter: Unknown Standard: 40 or 80MB |
| Display Options | Gas Plasma Display (16 shades) @640x480 |
| Graphics Chipset | VGA VRAM: 1MB |
| Audio | PC Speaker |
| Main Battery | 2x NiCad Batteries |
| CMOS Battery | Unknown |
| Power Supply | Proprietary |
| Media Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | None |
| Networking | Modem (Optional) |
| Other I/O | - 1x Parallel - 2x Serial - 1x VGA Out - 1x External FDD Port - 1x Numpad Port |
| BIOS | Toshiba |
| Pointing Device | None |
Resources
 Service Manual |
 Brochure |
|---|
Common Faults & Maintenance
Capacitor Failure
Unlike previous T3100 models, the T3100SX is affected by the plague of leaking capacitors that are a problem in most Toshiba laptops from the late 80s through the mid 90s. They're likely the same ELNA LongLife-series Low ESR caps that leak horribly in other Toshibas. Any T3100SX is a must-recap, and many will likely be too far gone from corrosion at this point to repair.
Page last updated (MM/DD/YYYY): 03/07/2025
Update Reason: page created
