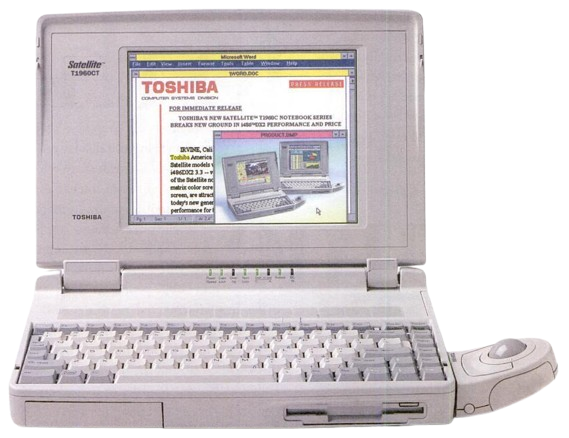

Toshiba T1960CS and T1960CT
The Toshiba T1960CS and T1960CT are 486-based laptops that were released in around July 1994.
Specifications
| Spec | T1960CS | T1960CT |
|---|---|---|
| Release Date | ~July 1994 | |
| CPU | CPU Type: Unknown Intel 486DX2 @50MHz | |
| Chipset | Unknown | |
| RAM | Type: Unknown Standard: 4MB Maximum: 20MB | |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 200 or 320MB | |
| Display Options | 9.5" Passive Matrix Color LCD @640x480 | 8.4" Active Matrix Color LCD @640x480 |
| Graphics Chipset | Toshiba GOGH VRAM: 256KB | Western Digital WD90C24 VRAM: 1MB |
| Audio | PC Speaker | |
| Main Battery | NiMH (12V, 2400mAH) | |
| CMOS Battery | - Lithium CMOS Battery - NiMH Reserve Battery | |
| Power Supply | Barrel Jack | |
| Media Drives | 3.5" 1.44MB Floppy Drive | |
| PC Cards | 1x PCMCIA Slot (Type III) | |
| Networking | None | |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 2x PS/2 - 1x QuickPort for external trackball | |
| BIOS | Toshiba | |
| Pointing Device | None | |
Resources
 Service Manual |
|---|
