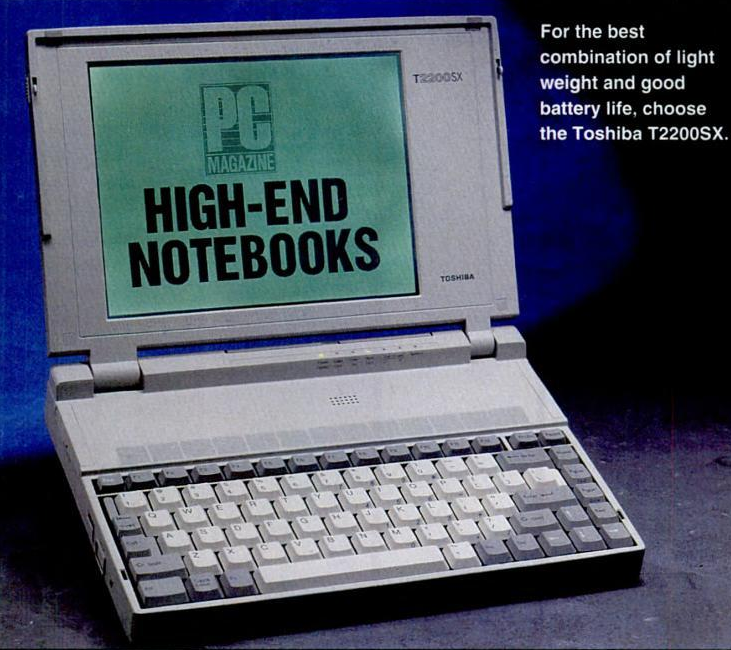

Toshiba T2200SX
The Toshiba T2200SX is a 386-based laptop that was released in 1991.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 386SX @20MHz - Optional 387SX Coprocessor |
| Chipset | Toshiba GA-SCNT2 |
| RAM | Type: Proprietary? Standard: 2MB Maximum: 10MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: 40, 60, or 80MB |
| Display Options | 9.5" Passive Matrix Grayscale @640x480 |
| Graphics Chipset | VGA Graphics VRAM: 256KB |
| Audio | PC Speaker |
| Main Battery | Unknown |
| CMOS Battery | Unknown |
| Power Supply | Unknown |
| Disk Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | None |
| Networking | None? |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Expansion Port - 1x Keypad Port |
| BIOS | Toshiba BIOS |
| Pointing Device | None |
Resources
 Service Manual |
|---|
Page last updated (MM/DD/YYYY): 11/23/2024
Update Reason: page created
