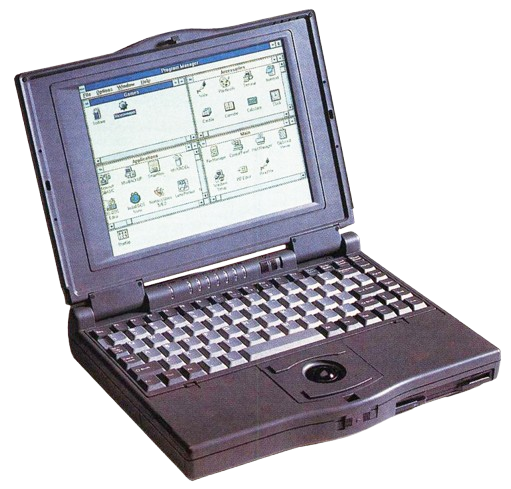

Smart D&M NX-9900
The Smart D&M NX-9900 is a 486-based generic/ODM laptop that was released in 1994. It uses desktop CPUs and RAM. I'd assume that the 8 and 16-bit sound card options were an ESS AudioDrive 488 and 688 respectively, but that's not currently confirmed.
Below is a list of brands/names this laptops was sold as:
- Generic/Unbranded
- BIT Computer Inc. EZ GREEN NOTE (USA)
- Speedrun (Europe?)
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Socket 486 - Intel 486DX @33MHz - Intel 486DX2 @66MHz - Intel 486DX4 @100MHz - Other options |
| Chipset | Unknown |
| RAM | Type: 1x Standard SIMM slot Standard: N/A Maximum: 20MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Yes Standard: N/A |
| Display Options | - 9.5" Passive Matrix Grayscale @640x480 - 9.5" Passive Matrix Color @640x480 - 9.5" Active Matrix Color @640x480 |
| Graphics Chipset | Cirrus Logic GD6440 VRAM: 1MB |
| Audio | Optional 8 or 16-bit sound |
| Main Battery | Unknown |
| CMOS Battery | Dallas Integrated RTC/Battery |
| Power Supply | 8-pin Mini-DIN |
| Disk Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector |
| BIOS | SystemSoft |
| Pointing Device | Trackball |
Gallery

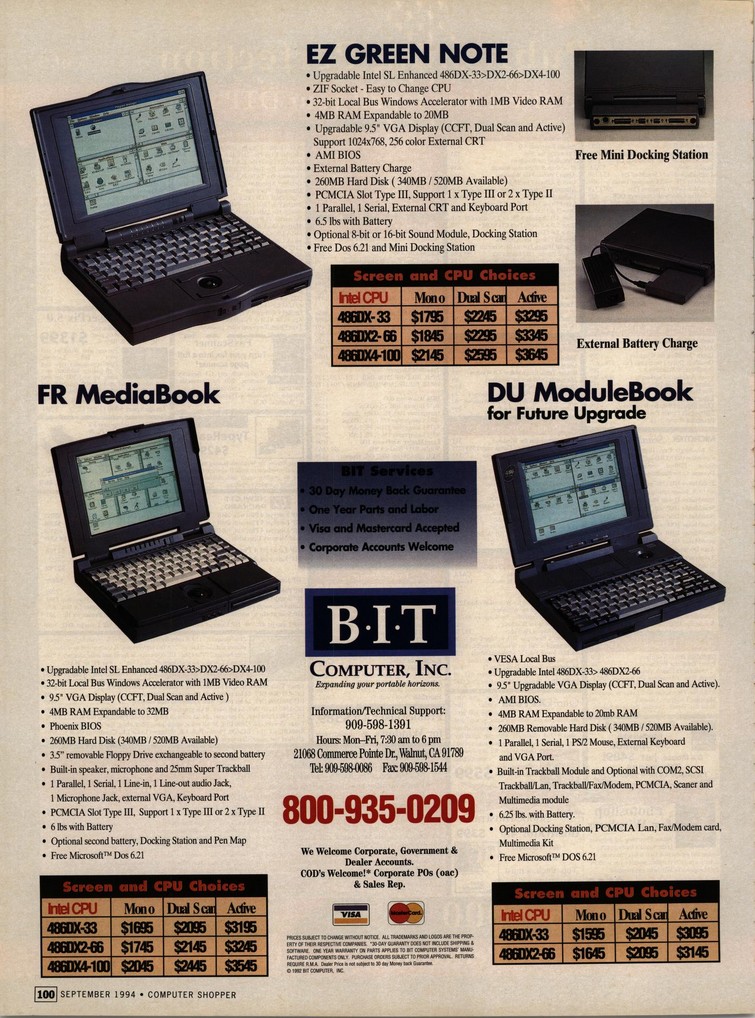

BIT Computer print ad. The EZ GREEN NOTE is the NX-9900. The FR MediaBook is from Featron and the DU ModuleBook is from Dual.
Page last updated (MM/DD/YYYY): 12/26/2024
Update Reason: page created
