Samsung SENS 700

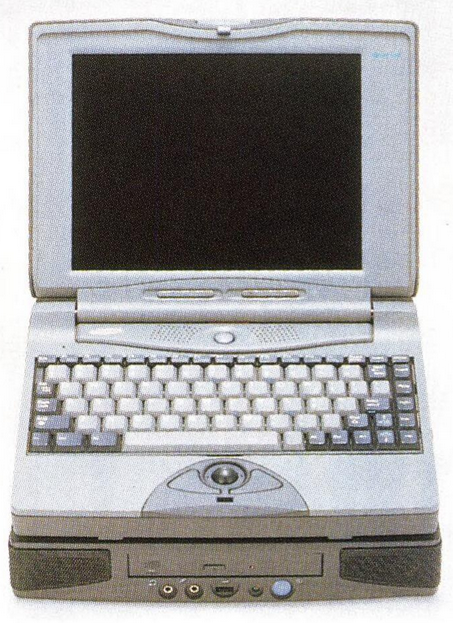

The SENS 700 was released in 1995, and was the successor to the NoteMaster 486P. It shared the same case but came with a sound card, and also had a DX4-100 processor option. The photo on the right shows the SENS 700 mounted in its docking station, which includes a CD-ROM drive.
This laptop was sold rebranded as the AT&T Globalyst 200S, and with minor case changes as the AST Advantage! Explorer DX4-100, also known as the Advantage! Explorer 212.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown - Intel 486DX2 @50MHz - Intel 486DX4 @75 or 100MHz |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: 4 or 8MB Maximum: 36MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: 340, 520, 732, 772, or 810MB |
| Display Options | - 10.4" Passive Matrix Color @640x480 - 10.4" Active Matrix Color @640x480 |
| Graphics Chipset | Chips & Technologies 65545 VRAM: 1MB |
| Audio | ESS AudioDrive 1488 - Stereo Speakers - Microphone |
| Main Battery | NiMH (9.6v, 2500mAH) |
| CMOS Battery | 6-cell Varta NiMH (1x6) |
| Power Supply | Barrel Jack, 19V |
| Disk Drives | 3.5" 1.44MB Floppy Drive (Citizen W1D) |
| PC Cards | 2x PCMCIA Slots |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x Mic In - 1x Line Out |
| BIOS | Phoenix |
| Pointing Device | Trackball |
Common Faults & Maintenance
These laptops are fairly well built and reliable, at least as far as I can tell. I've yet to see a hinge failure but that may still happen. The biggest issue these will have is that the VARTA CMOS battery will leak and eventually break something. It's probably located in the same place it is on the SENS 800.
