Samsung NoteMaster 486P/S3945T

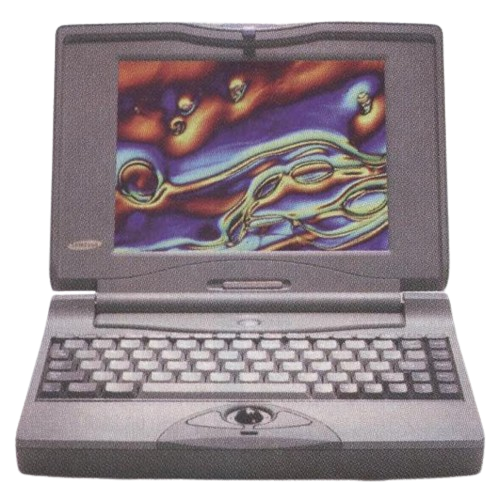

The NoteMaster 486P (also known by the model number S3945T) is a 486-based laptop released in 1994. These were also sold by AT&T as both the Safari 3151 and the Globalyst 200.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown - Intel 486SX @33MHz - Intel 486DX2 @50MHz - Intel 486DX4 @75MHz |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: 4MB Maximum: 24MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 170, 340, 520, or 732MB |
| Display Options | - 9.4" Passive Matrix Color @640x480 - 9.4" Active Matrix Color @640x480 |
| Graphics Chipset | Western Digital WD90C24 VRAM: 1MB |
| Audio | PC Speaker |
| Main Battery | NiMH (9.6v, 2500mAH) |
| CMOS Battery | 6-cell Varta NiMH (1x6) |
| Power Supply | Barrel Jack, 19V |
| Media Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | 2x PCMCIA Slots |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector |
| BIOS | SystemSoft |
| Pointing Device | Trackpad |
Common Faults & Maintenance
These laptops are fairly well built and reliable, at least as far as I can tell. I've yet to see a hinge failure but that may still happen. The biggest issue these will have is that the VARTA CMOS battery will leak and eventually break something. It's located above the hard drive bay and NOT right over the motherboard, but the corrosion can and will still wick its way over with enough time. Get it out ASAP.
Page last updated (MM/DD/YYYY): 11/10/2024
Update Reason: page converted to php
