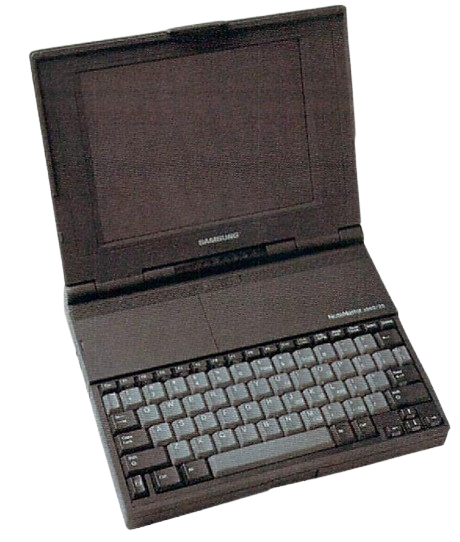

Samsung NoteMaster 386S/25
The NoteMaster 386S/25 is a laptop based on the AMD 80386SXL processor, released in 1992. For its time, the 386S/25 was a fairly lightweight system. It weighed 5.8 pounds. One unique feature the 386S/25 has is its ability to run off of standard AA batteries. This seemingly required a special battery caddy of some sort, so I don't think you can just stick the AAs in. The laptop came standard with a rechargeable NiCad pack. It was also able to stay running while the main battery was swapped out, meaning it likely had a reserve battery inside.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown AMD 386SXL @25MHz - 387SX Coprocessor Support |
| Chipset | Unknown |
| RAM | Type: Unknown Standard: 2MB Maximum: 8MB |
| Hard Disk | 2.5" IDE Uses proprietary adapter?: Unknown Standard: 40, 60, or 80MB |
| Display Options | 10" Passive Matrix Grayscale @640x480 |
| Graphics Chipset | Unknown VRAM: Unknown |
| Audio | PC Speaker |
| Main Battery | NiCad or Alkaline AAs (with optional pack) |
| CMOS Battery | Unknown |
| Power Supply | Proprietary 4-pin mini-din |
| Disk Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | None |
| Networking | Unknown |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 |
| BIOS | Unknown |
| Pointing Device | None |
