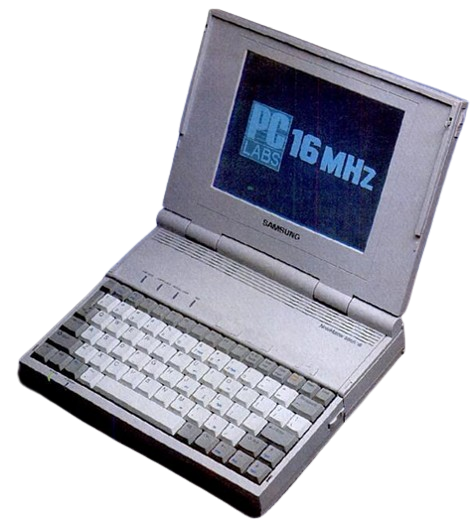

Samsung NoteMaster 386S/16
The NoteMaster 386S/16 is the earliest Samsung laptop that I can find record of (besides for their luggables). As the name implies, it uses an Intel 386 processor.
The 386S/20 looks identical but has a 20MHz processor in it.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Unknown Intel 386 @16 or 20MHz - 387 Coprocessor Support |
| Chipset | Unknown |
| RAM | Type: Proprietary Standard: 1MB Maximum: 5MB |
| Hard Disk | IDE 2.5" Uses proprietary adapter?: Unknown Standard: 20 or 60MB |
| Display Options | Passive Matrix Grayscale @640x480 |
| Graphics Chipset | Chips & Technologies VRAM: Unknown |
| Audio | PC Speaker |
| Main Battery | NiCad |
| CMOS Battery | Unknown |
| Power Supply | Unknown |
| Disk Drives | 3.5" 1.44MB Floppy Drive |
| PC Cards | None |
| Networking | Modem (Optional) |
| Other I/O | Unknown |
| BIOS | Unknown |
| Pointing Device | None |
Page last updated (MM/DD/YYYY): 11/10/2024
Update Reason: page converted to php
Have additional information on this laptop? Want to send me photos to use on the site? Send me an email: macdatnet@gmail.com
