NEC Versa S-Series

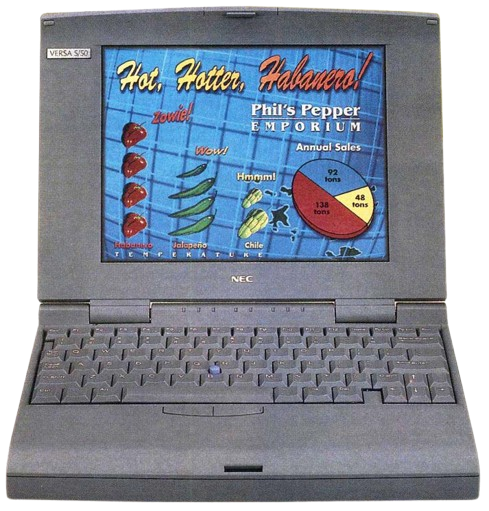

The Versa S-Series are 486-based subnotebooks that were released in August 1994. There were two main models in the series - Versa S/33 and Versa S/50. Per the service manual, all Versa S/50 laptops should have the TFT display.
Specifications
| Spec | Details |
|---|---|
| CPU | CPU Type: Soldered QFP - Intel 486SX @33MHz - Intel 486DX2 @50MHz |
| Chipset | PicoPower PT86C368 |
| RAM | Type: Unknown, 1 slot Standard: 4MB Soldered Maximum: 12MB |
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: 125, 210, or 260MB |
| Display Options | - 9.5" Passive Matrix Grayscale LCD @640x480 - 9.5" Passive Matrix Color LCD @640x480 - 9.5" Active Matrix Color LCD @640x480 |
| Graphics Chipset | Cirrus Logic GD6235 VRAM: 512KB |
| Audio | PC Speaker |
| Main Battery | NiMH (12V, 1800mAH) |
| CMOS Battery | - Lithium CMOS Battery - Bridge Battery (likely NiCad) |
| Power Supply | Hirose RP-34 (3-pin) connector |
| Media Drives | None, supports external floppy drive |
| PC Cards | 2x PCMCIA Slots (2x Type II/1x Type III) - Cirrus Logic PD6720 Controller |
| Networking | None |
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x External FDD Connector |
| BIOS | SystemSoft |
| Pointing Device | TrackPoint |
Resources
 Service Manual |
|---|
