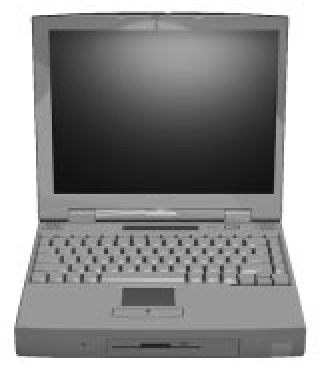

NEC Versa 6200 Series
The NEC Versa 6200 Series were Pentium MMX-based laptops that were released in 1997. See below for specifications.
Specifications
| Spec | Versa 6200MX | Versa 6220 | Versa 6230 | Versa 6260 |
|---|---|---|---|---|
| CPU | CPU Type: Soldered TCP Intel Pentium MMX @166MHz | CPU Type: Soldered TCP Intel Pentium MMX @200MHz | CPU Type: Soldered TCP Intel Pentium MMX @233MHz | CPU Type: Soldered TCP Intel Pentium MMX @266MHz |
| Chipset | Intel 430MX | Intel 430TX | ||
| RAM | Type: Unknown Standard: 32MB Soldered Maximum: Unknown | |||
| Storage | 2.5" IDE Requires Adapter: Unknown Standard: Unknown | |||
| Display Options | 13.3" Active Matrix LCD @1024x768 | |||
| Graphics Chipset | Chips & Technologies 65550 VRAM: 2MB | NeoMagic NMG4 VRAM: 2MB | ||
| Audio | ESS AudioDrive 1878 | ESS AudioDrive 1869 | ||
| Main Battery | Lithium Ion (14.4V, 2600mAH) | |||
| CMOS Battery | - Lithium Ion (3V, 280mAH) CMOS Battery - NiMH (7.2V, 70mAH) Reserve Battery | |||
| Power Supply | Unknown | |||
| Media Drives | VersaBay II - holds CD-ROM, Floppy Drive, 2nd HDD, or 2nd Battery | |||
| PC Cards | 2x PCMCIA Slots | |||
| Networking | None | |||
| Other I/O | - 1x Parallel - 1x Serial - 1x VGA Out - 1x PS/2 - 1x Dock Connector - 1x USB 1.x - 1x Line In - 1x Mic In - 1x Line Out - 1x Headphone Out - 1x TV Out | |||
| BIOS | Unknown | |||
| Pointing Device | Trackpad | |||
Resources
Service Manual (6200MX)
Service Manual (All Others)
