NEC Versa 5000 Series

NEC Versa 5000 Series

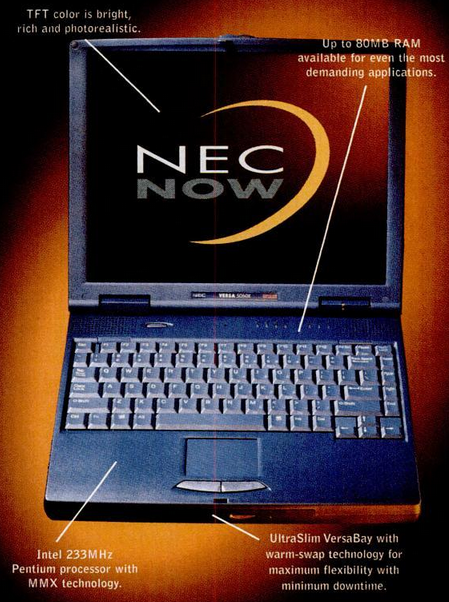

The NEC Versa 5000 Series are Pentium MMX-based laptops that were released in late 1997. See below for specifications.

Specifications

SpecVersa 5060Versa 5060XVersa 5080Versa 5080X
CPUCPU Type: Soldered TCP
Intel Pentium MMX @166MHz		CPU Type: Soldered TCP
Intel Pentium MMX @233MHz
ChipsetOPTi FireStar (82C700)
RAMType: Unknown
Standard: 16MB Soldered
Maximum: 144MB
Storage2.5" IDE
Requires Adapter: Unknown
Standard: 1.6 or 2.1GB		2.5" IDE
Requires Adapter: Unknown
Standard: 2.1 or 3.2GB		2.5" IDE
Requires Adapter: Unknown
Standard: 2.1GB		2.5" IDE
Requires Adapter: Unknown
Standard: 2.1 or 3.2GB
Display Options12.1" Active Matrix LCD @800x60013.3" Active Matrix LCD @1024x76812.1" Active Matrix LCD @800x60013.3" Active Matrix LCD @1024x768
Graphics ChipsetNeoMagic MagicGraph 128XD (NM2160)
VRAM: 2MB
AudioESS AudioDrive 1869
- Stereo Speakers
- Microphone
Main BatteryLithium Ion (8 cell, 14.4V, 2400mAH)
CMOS Battery- Lithium Ion CMOS Battery
- NiMH 3.6V 70mAH Reserve Battery
Power SupplyBarrel Jack (19V, 2.6A)
Media DrivesUltraSlim VersaBay - holds CD-ROM, Floppy Drive, or weight-saving module
PC Cards2x PCMCIA/CardBus Slots
- ZoomVideo Support (Upper slot only)
NetworkingNone
Other I/O- 1x Parallel
- 1x Serial
- 1x VGA Out
- 1x PS/2
- 1x Dock Connector
- 1x USB 1.x
- 1x External FDD Connector
- 1x Mic In
- 1x Line In
- 1x Headphone Out
- Infrared
BIOSUnknown
Pointing DeviceTrackpad

Resources

Service Manual

User Manual
