NEC Versa 4000 Series

NEC Versa 4000 Series

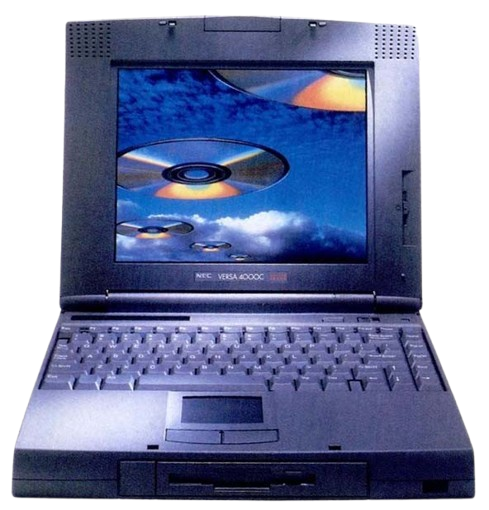

The NEC Versa 4000 Series are Pentium-based laptops that were released in September 1995. The 4080H model was announced in October. The 4000 Series were NEC's first laptops with support for an internal CD-ROM drive.

Specifications

SpecVersa 4000DVersa 4000CVersa 4000HVersa 4050CVersa 4050HVersa 4080H
CPUCPU Type: Soldered TCP
Intel Pentium @75MHz		CPU Type: Soldered TCP
Intel Pentium @90MHz		CPU Type: Soldered TCP
Intel Pentium @120MHz
ChipsetPico Power Golden Gate (PT80C732/PT80C733)
RAMType: Unknown
Standard: 8MB
Maximum: 40MB
Storage2.5" IDE
Requires Adapter: Yes
Standard: 540MB		2.5" IDE
Requires Adapter: Yes
Standard: 810MB		2.5" IDE
Requires Adapter: Yes
Standard: 1GB
Display Options10.4" Passive Matrix Color LCD @640x48010.1" Active Matrix Color LCD @640x48010.4" Active Matrix Color LCD @800x60010.1" Active Matrix Color LCD @640x48010.4" Active Matrix Color LCD @800x600
Graphics ChipsetChips & Technologies 65545
VRAM: 1MB
AudioESS AudioDrive 688
- Stereo Speakers
- Microphone
Main BatteryLithium Ion
CMOS Battery- Lithium CMOS Battery
- Reserve Battery (likely NiCad)
Power SupplyHirose RP-34 (4-pin) connector
Media DrivesModular Bay (VersaBay II) supporting the following:
- 3.5" 1.44MB Floppy Drive
- CD-ROM Drive
- 2nd HDD
- 2nd Battery
PC Cards2x PCMCIA Slots (2x Type II/1x Type III)
- Cirrus Logic PD6722 Controller
NetworkingNone
Other I/O- 1x Parallel
- 1x Serial
- 1x VGA Out
- 1x PS/2
- 1x Dock Connector
- 1x Mic In
- 1x Line In
- 1x Line Out
- 1x Headphone Out
- Infrared
BIOSPhoenix
Pointing DeviceTrackpad

Resources


Service Manual
